Component Location

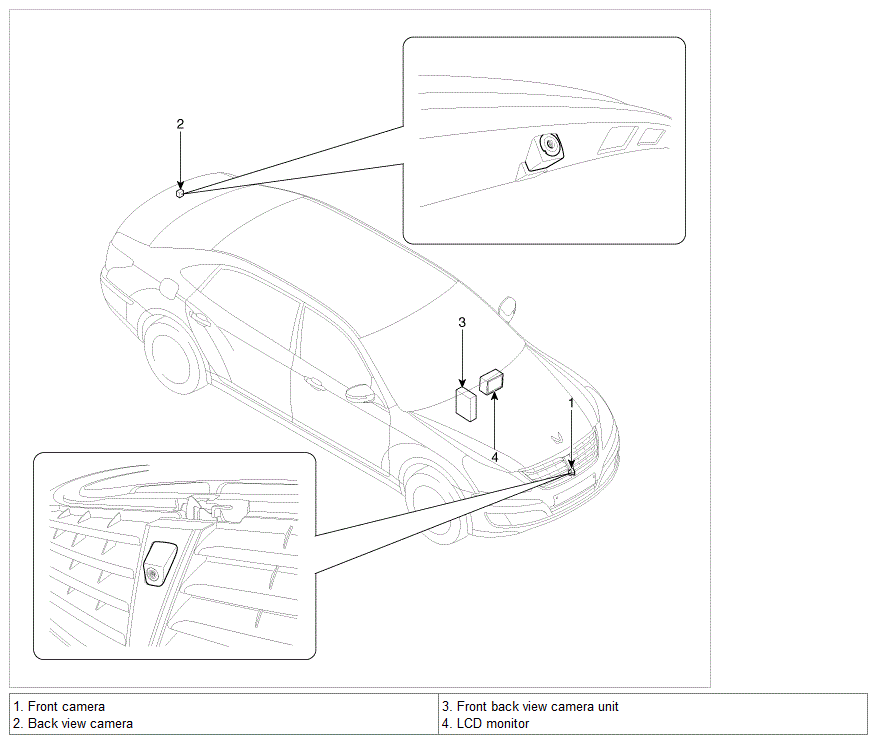

Fig 1: Identifying Front Back View Camera System Components
G08831845Courtesy of HYUNDAI MOTOR AMERICA

* In case of applying DIS system, Front back view camera unit includes PGS (Parking Guide System) function.

* In case of only applying AV & Navigation system, Front back view camera unit doesn't include PGS (Parking Guide System) function.
