Monitor Scantool Data

IG KEY "ON" & Engine "OFF".
Erase DTC after connecting Scantool.
Check IPM status if DTC is retrieved.

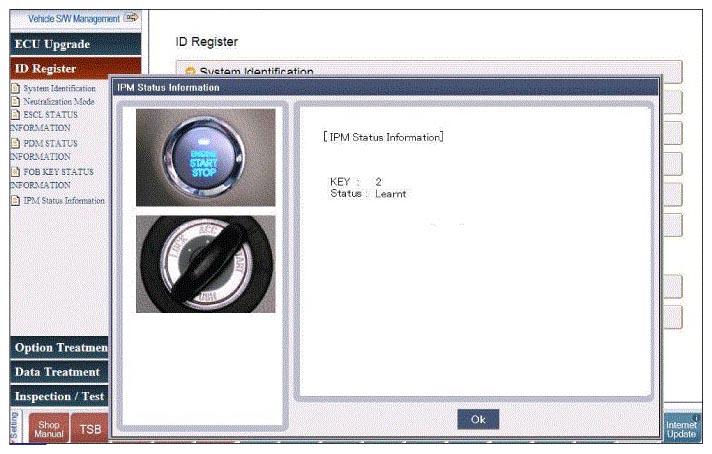

Fig 1: Display - IPM Status Screen
Courtesy of HYUNDAI MOTOR AMERICA
Is the Smart key ECM (Integrated in IPM) learn status?
YES

Fault is intermittent caused by poor contact in Smart ECM and/or ECM's connector or was repaired and Smart key ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Go to "COMPONENT INSPECTION " procedure.
