Circuit Diagram

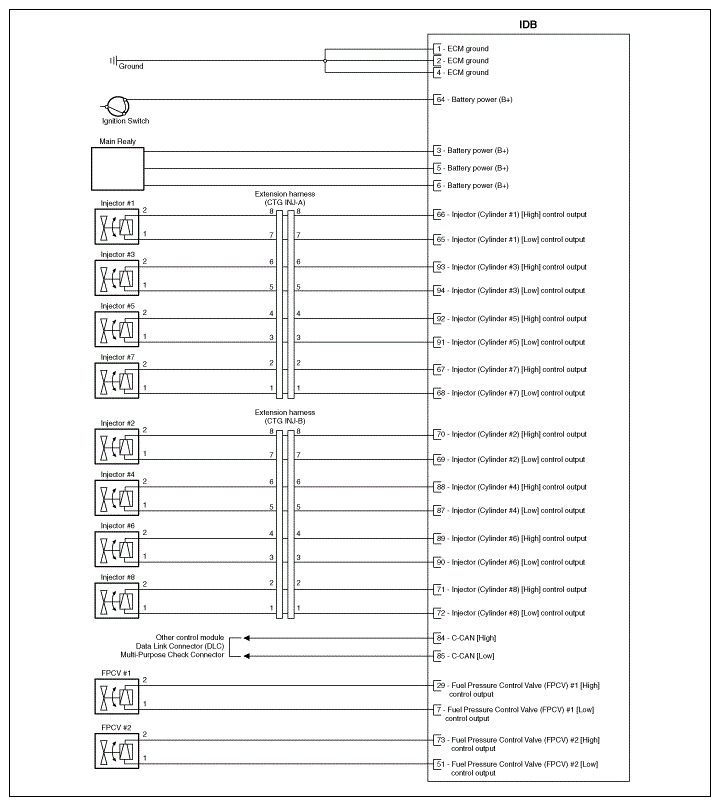

Fig 1: IDB - Circuit Diagram (1 Of 2)
G08830201Courtesy of HYUNDAI MOTOR AMERICA

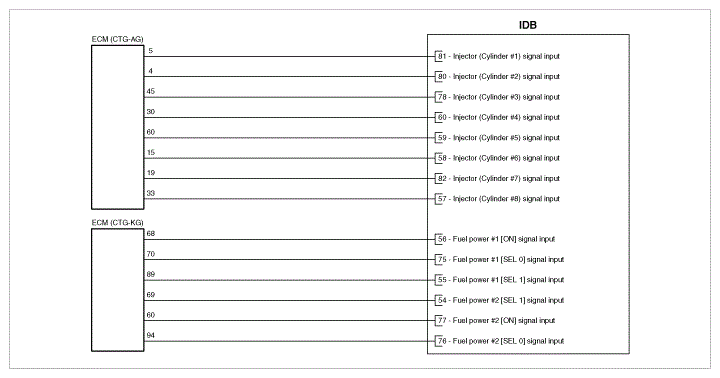

Fig 2: IDB - Circuit Diagram (2 Of 2)
G08830202Courtesy of HYUNDAI MOTOR AMERICA
