AQS Sensor Connector End View (E92)

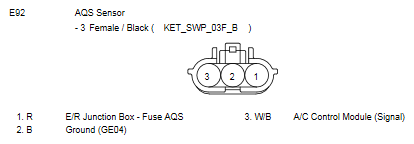

Fig 1: AQS Sensor Connector End View (E92)

G10733421

Courtesy of HYUNDAI MOTOR AMERICA
