Decayed Room Lamp Control

The Decayed Room Lamps control the state of the Room Lamps by IPM.

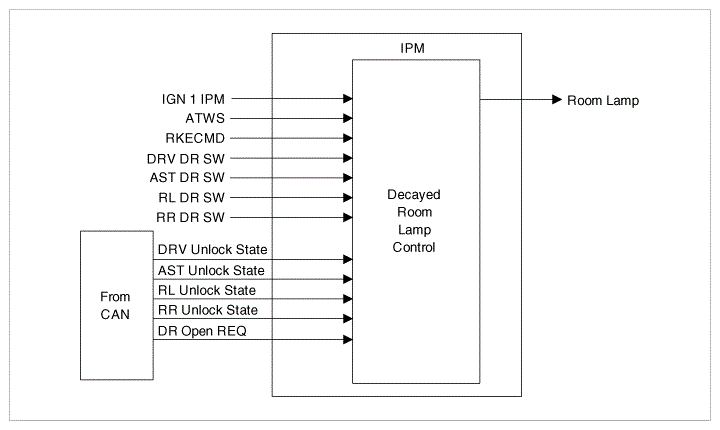

Fig 1: Decayed Room Lamp Control - System Diagram
G08831365Courtesy of HYUNDAI MOTOR AMERICA
