Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad side cover (A).
    Fig 1: Identifying Crash Pad Side Cover
    G08831977Courtesy of HYUNDAI MOTOR AMERICA
  3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).
    Fig 2: Identifying Crash Pad Lower Panel
    G08831978Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the connectors (A).
    Fig 3: Identifying Crash Pad Lower Panel Connectors
    G08831979Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the mode control actuator connector (A) after removing the air duct.
  6. Loosen the mounting screws and then remove the mode control actuator (B).

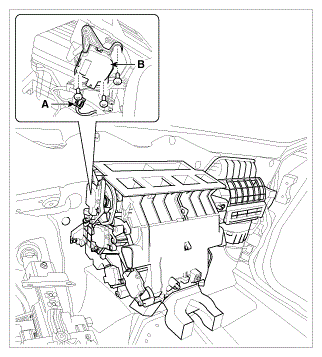

    Fig 4: Identifying Mode Control Actuator And Connector
    G08831980Courtesy of HYUNDAI MOTOR AMERICA
  7. Installation is the reverse order of removal.
