Steering Wheel Heater Control Module

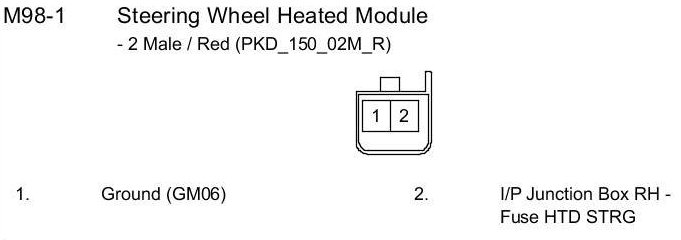

M98-1 Steering Wheel Heated Module:

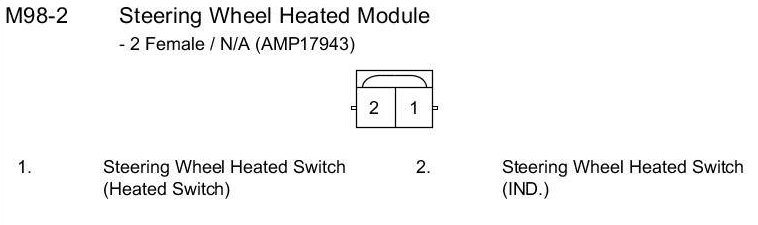

M98-2 Steering Wheel Heated Module:
