Fogging Sensor: Service and Repair

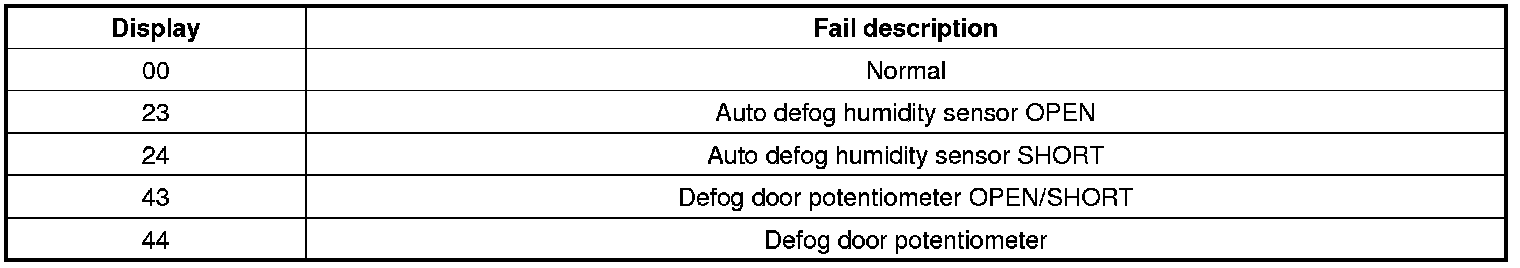

Inspection

1. Press the MODE switch more then 4 times within 2 seconds while pressing the OFF switch.






Replacement

1. Remove the auto defogging sensor cover (A).




2. Disconnect the connector and then remove the auto defogging sensor (A).




3. Installation is the reverse order of removal.
