Diagnostic Circuit Diagram

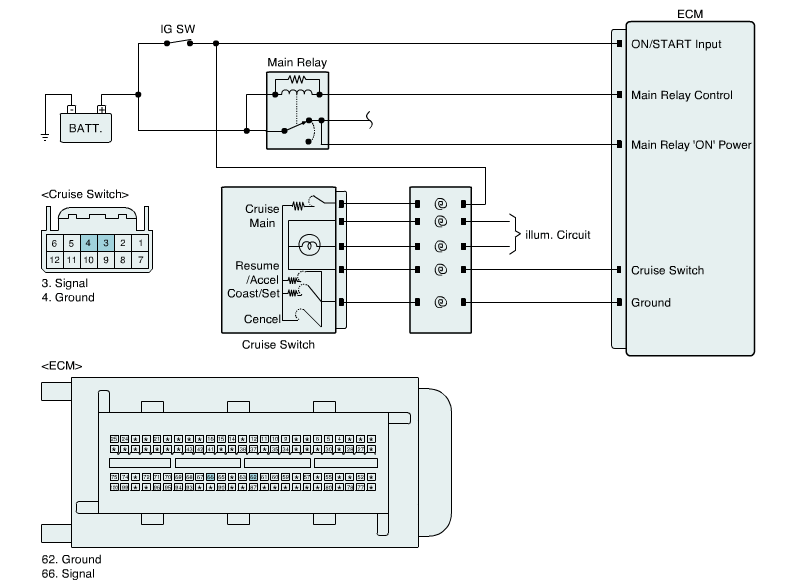

Fig 1: Cruise Switch Diagnostic Circuit Diagram
G08836825Courtesy of HYUNDAI MOTOR AMERICA
