Engine Control System Diagnosis (1 Of 3) - 4.6L
>>
DTC P0122: Throttle Position Sensor 1 Signal Circuit Low Input
>>
General Information
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

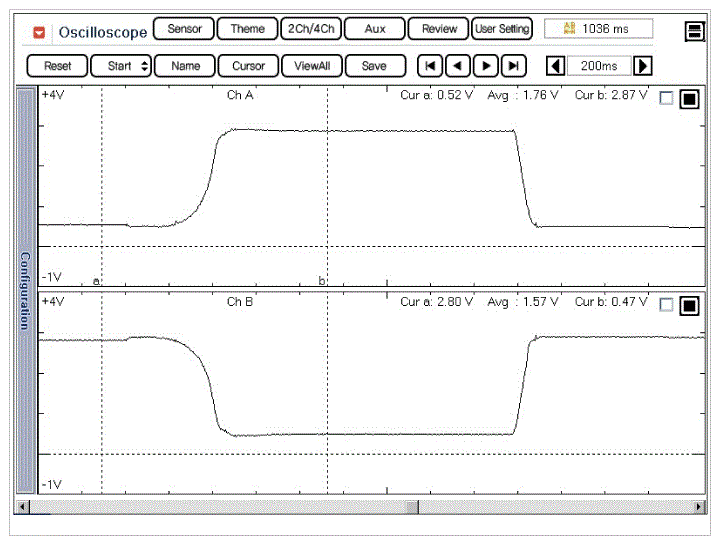

Fig 1: Display - TPS1 & TPS2 Normal Waveform (With No Accel Padal Depressed Under IG ON Condition)
Courtesy of HYUNDAI MOTOR AMERICA
Normal waveform of TPS1 & TPS2 with no accel padal depressed under IG ON condition, refer to
Fig 1
.
