Component Inspection

Check the Signal waveform of HO2S
1. IG "OFF" and connect HO2S connector.
2. Engine start.
3. After warming-up, monitor signal waveform of HO2S with scantool.
  Specification: Refer to SIGNAL WAVEFORM & DATA

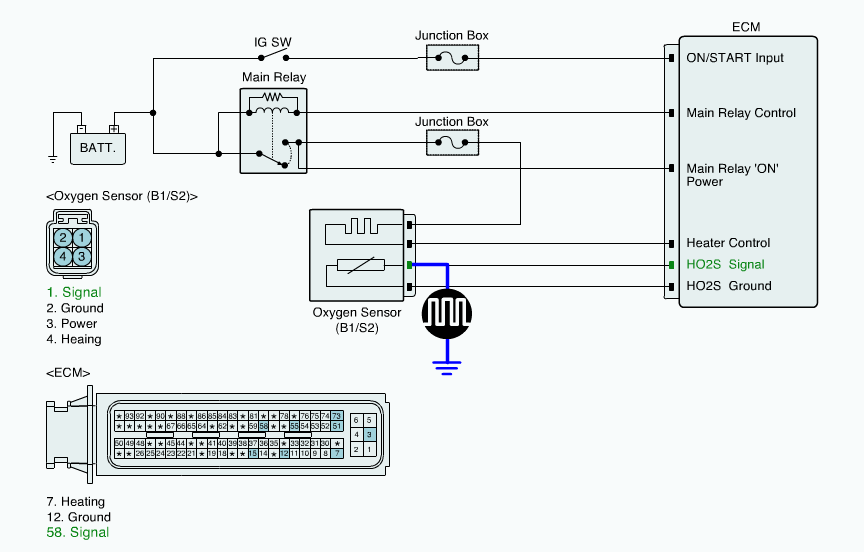

  Fig 1: Checking HO2S Signal Waveform
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the sensor switching properly?
  YES

  Go to "Check HO2S" as below.

  NO

  Substitute with a known - good HO2S and check for proper operation. If the problem is corrected, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check HO2S
1. IG "OFF" and disconnect HO2S connector.
2. Check that the HO2S is securely installed.
3. Check the HO2S for contamination or damage
4. Is the sensor normal?
  YES

  Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Substitute with a known - good HO2S and check for proper operation. If the problem is corrected, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
