Engine Control System Diagnosis (2 Of 3) - 4.6L
>>
DTC P0222: Throttle Position Sensor 2 Signal Circuit Low Input
>>
General Information
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

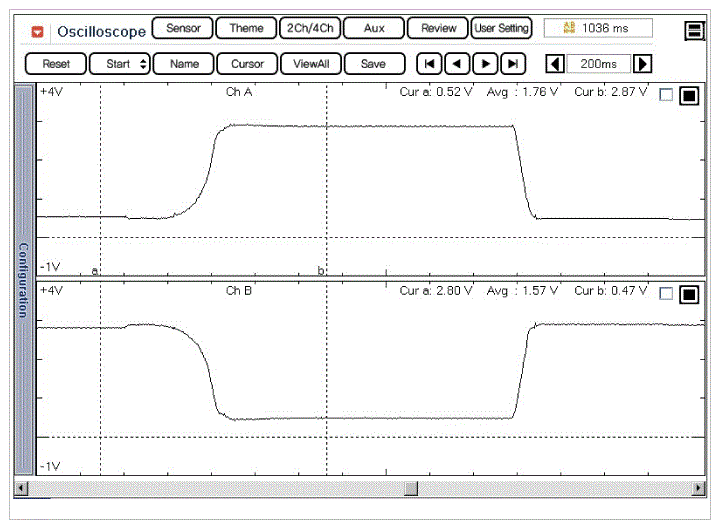

Fig 1: Display - TPS1 & TPS2 Normal Waveform (With No Accel Pedal Depressed Under IG ON Condition)
Courtesy of HYUNDAI MOTOR AMERICA
Normal waveform of TPS1 & TPS2 with no accel pedal depressed under IG ON condition, refer to
Fig 1
.
