Components and Components Location: Components

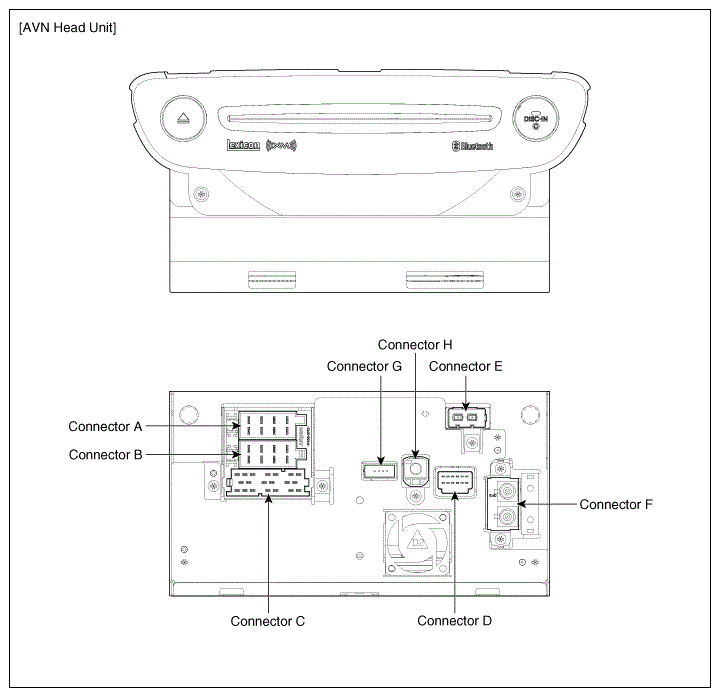

Fig 1: Identifying Audio Video Navigation Head Unit And Connector (1 Of 3)
G08853303Courtesy of HYUNDAI MOTOR AMERICA

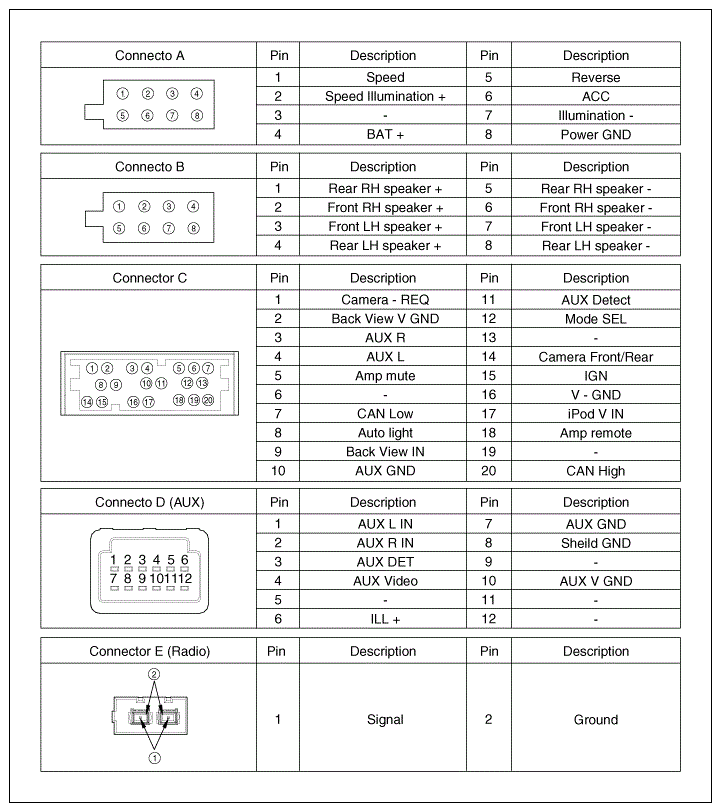

Fig 2: Identifying Audio Video Navigation Head Unit And Connector (2 Of 3)
G08853304Courtesy of HYUNDAI MOTOR AMERICA

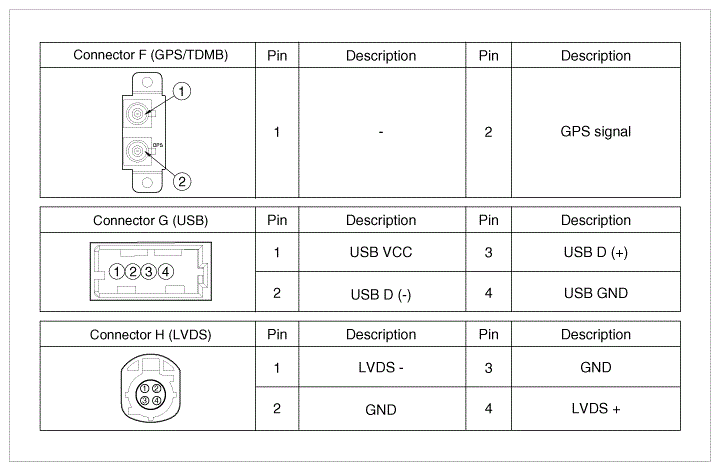

Fig 3: Identifying Audio Video Navigation Head Unit And Connector (3 Of 3)
G08853305Courtesy of HYUNDAI MOTOR AMERICA
