Projected Dimensions

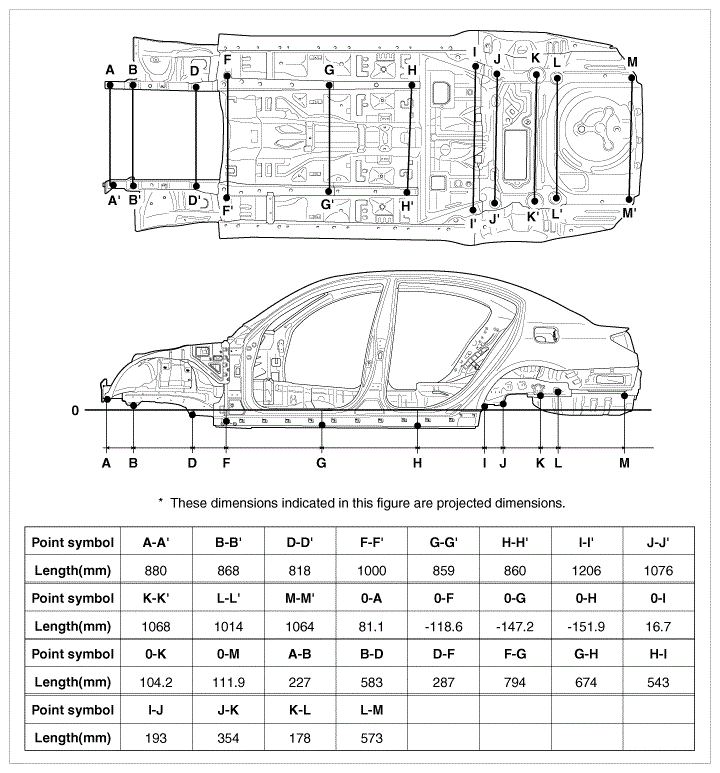

Fig 1: Identifying Under Body Projected Dimensions
G08834891Courtesy of HYUNDAI MOTOR AMERICA

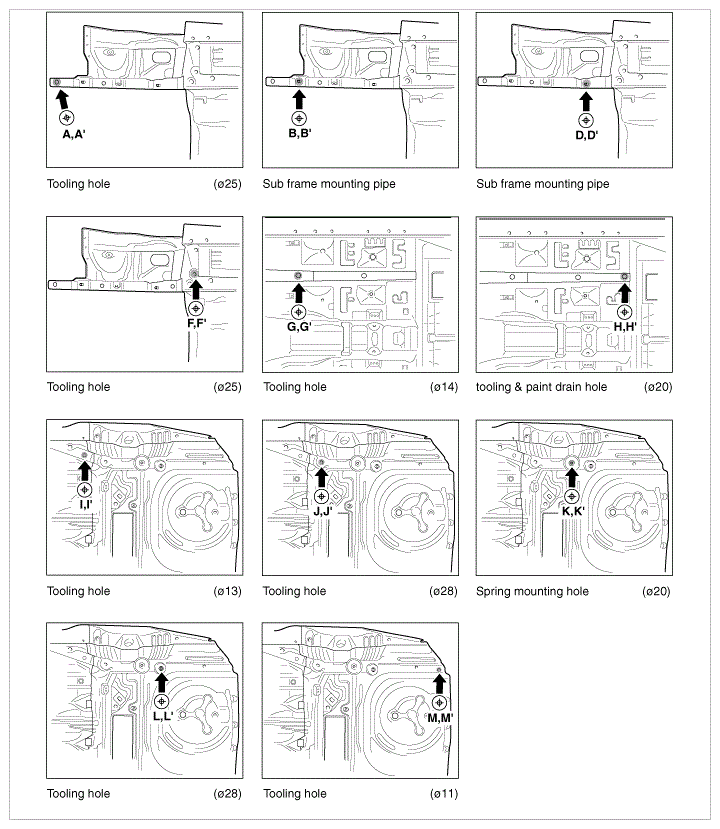

Fig 2: Locating Under Body Projected Dimensions Measurement Points
G08834892Courtesy of HYUNDAI MOTOR AMERICA
