Repair procedures: Removal

Remove the front bumper. (Refer to the FRONT BUMPER ).
Remove the bolt and disconnect the horn connector, then remove the high pitch horn (B) and low pitch horn (A).

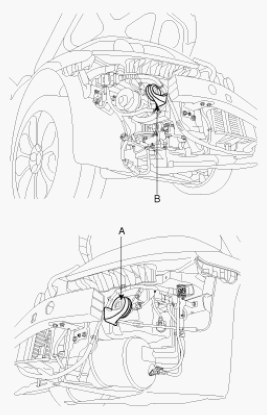

Fig 1: Identifying High And Low Pitch Horn

Courtesy of HYUNDAI MOTOR AMERICA
