Engine Control System - 4.6L
>>
ETC (Electronic Throttle control) System
>>
Schematic Diagrams
>>
Circuit diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit diagram

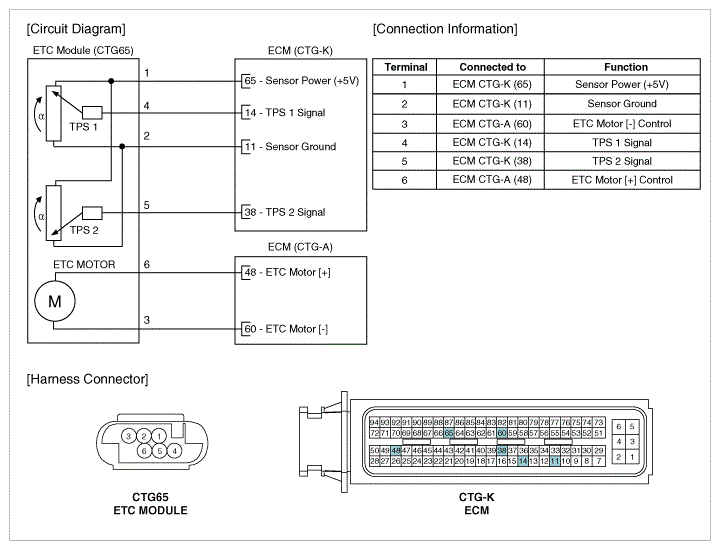

Fig 1: Electronic Throttle Control System Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
