Genesis 4.6
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 4.6L
>>
ETC (Electronic Throttle control) System
>>
Schematic Diagrams
>>
Schematic diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic diagram

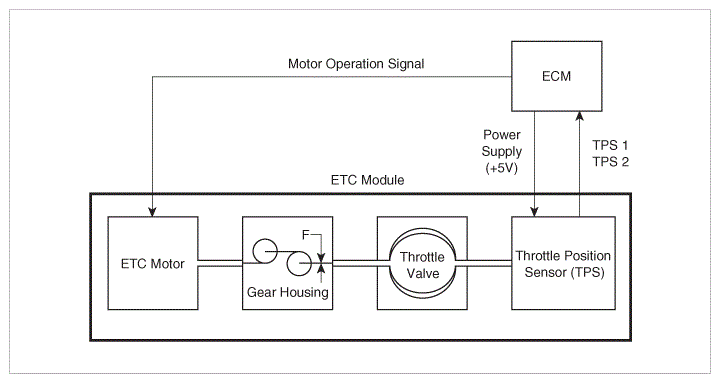

Fig 1: Electronic Throttle Control System Schematic Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
