Components and Components Location: Components

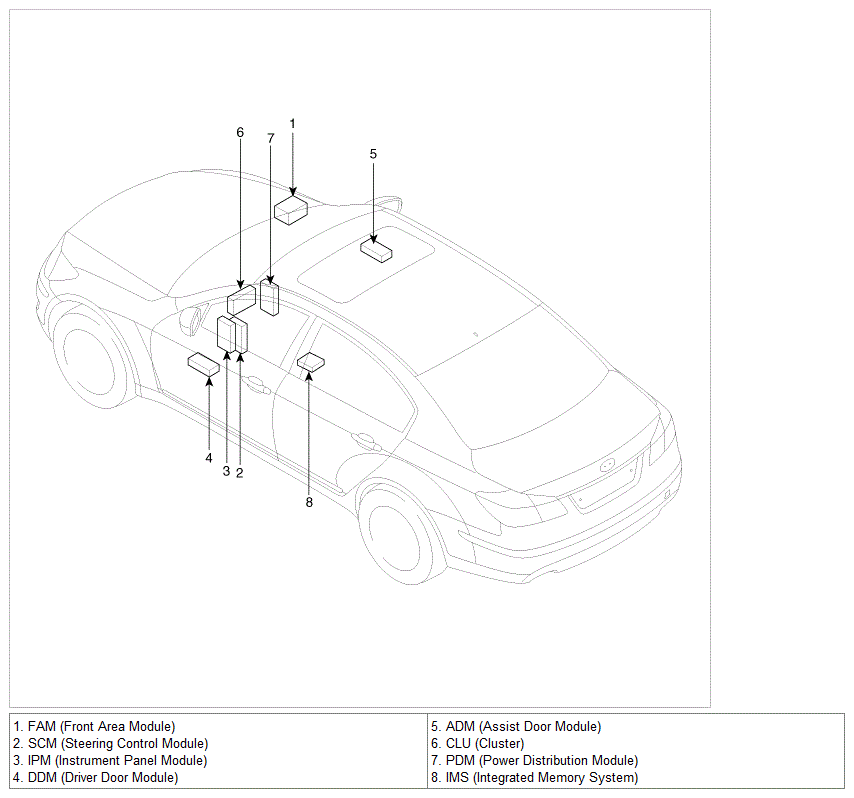

Fig 1: Identifying Body Control Module Components
G08838460Courtesy of HYUNDAI MOTOR AMERICA
