Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

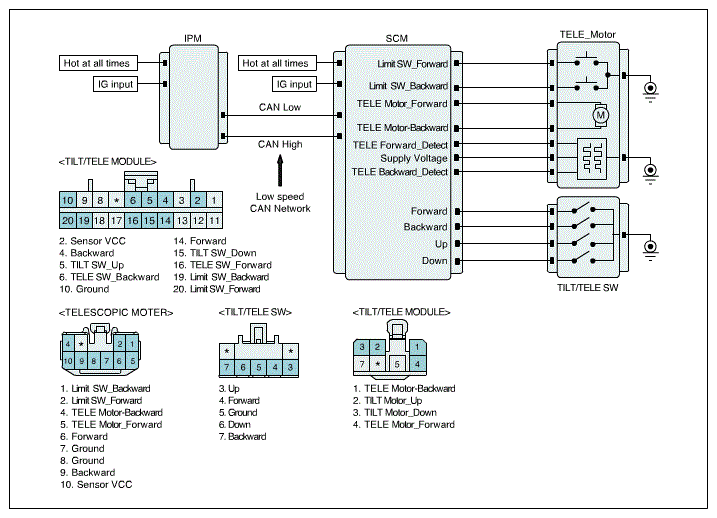

Fig 1: Telescopic Motor/Position Sensor And SCM - Circuit Diagram
G08852567Courtesy of HYUNDAI MOTOR AMERICA
