Diagnostic Circuit Diagram

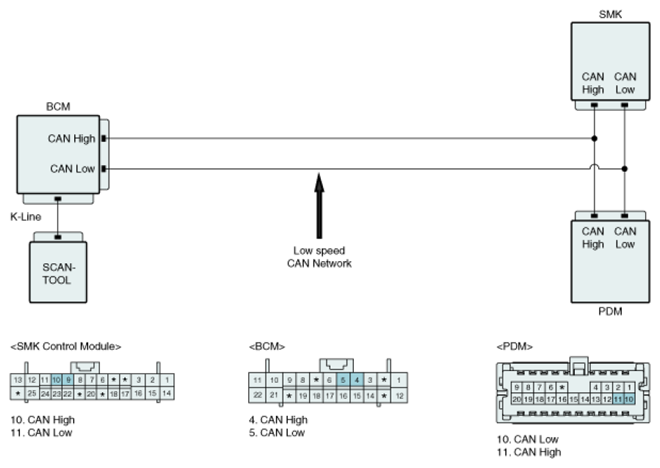

Fig 1: CAN Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
