DTC B1602: CAN Error: General Description

This is DTC which is related with communication error between PDM and other units.

(* Control Units: BCM (Body Control Module), PDM (Power Distribution Module), SMK (Smart Key) ECU.

^*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.

^*2 LIN (Local Interconnect Network): LIN is serial communication type which is used in electrical control system. (This is less expensive.)

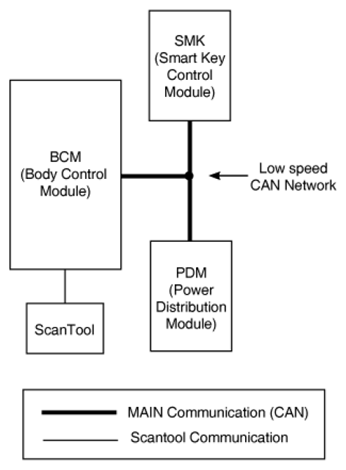

Fig 1: Main Communication (CAN) & Scantool Communication Diagram

Courtesy of HYUNDAI MOTOR CO.
