Hyundai
>>
2012
>>
Genesis Coupe 2.0T, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Button Engine Start System
>>
PDM (Power Distribution Module)
>>
DTC B1989: ESCL Ground Short Circuit To Battery
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

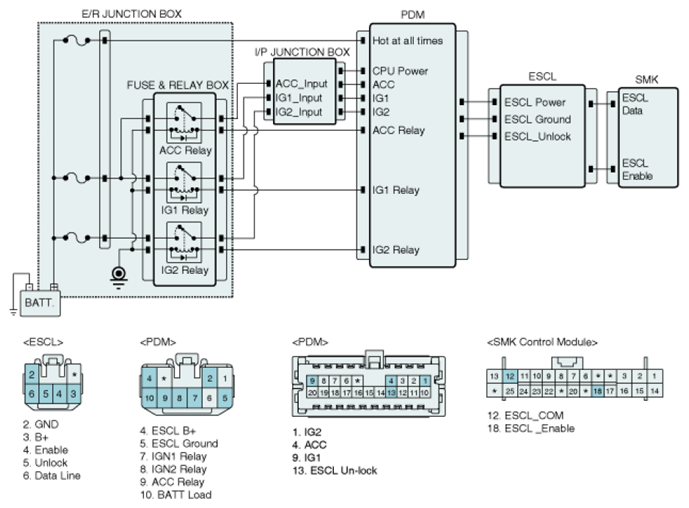

Fig 1: ESCL Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
