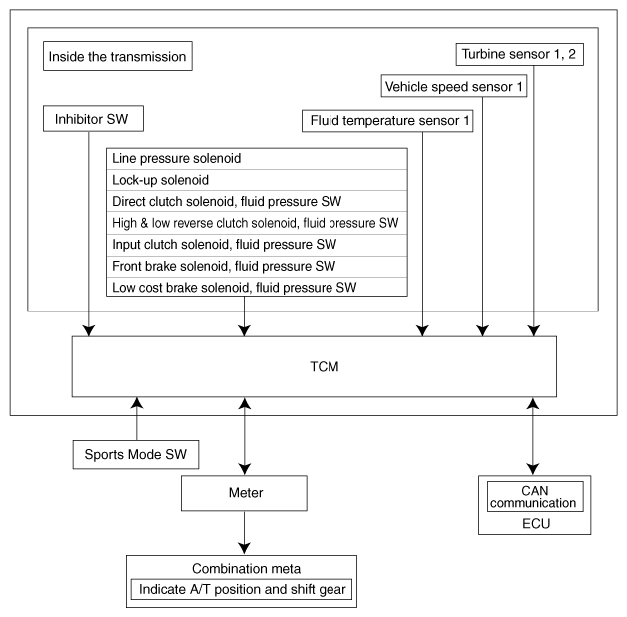

Control System Diagram
Main Communication Signal
MAIN COMMUNICATION SIGNAL CHART
| Input to ECM (CAN) | Output to ECM (CAN) | Input from external sys. | Output to external sys. |
|---|---|---|---|
| - | - | A/T driving mode SW | Self-diagnosis indicator |
| Engine torque signal | Output revolution signal | Sports mode SW | Range signal (P, R, N, D) |
| Engine revolution signal | Turbine sensor signal | Up SW | Range signal |
| - | Torque reduction request signal | Down SW | Reverse lamp signal |
| Accelerator opening signal | Stop lamp SW | N position signal | |
| Power | 4 x 4 Low signal |
