Circuit Diagram

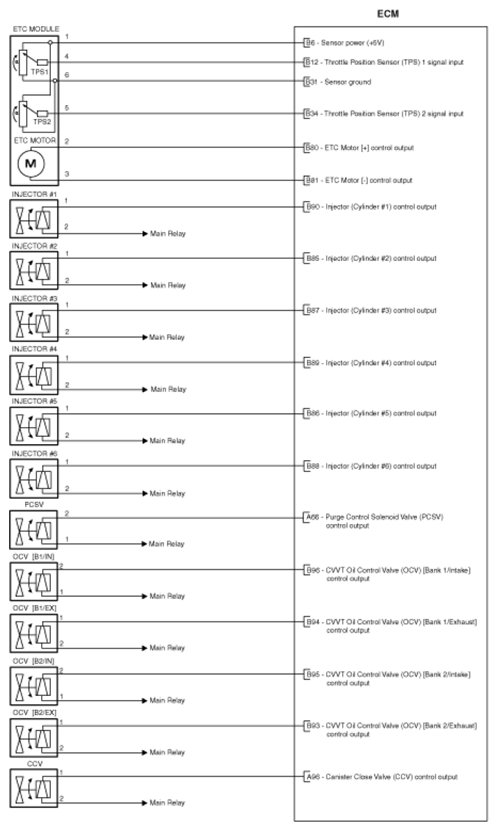

Fig 1: ECM Circuit Diagram (1 Of 5)

Courtesy of HYUNDAI MOTOR CO.

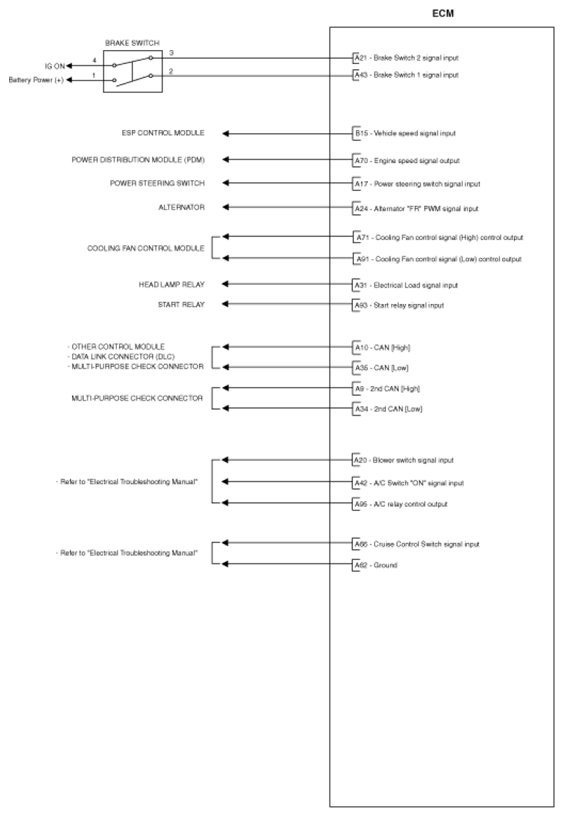

Fig 2: ECM Circuit Diagram (2 Of 5)

Courtesy of HYUNDAI MOTOR CO.

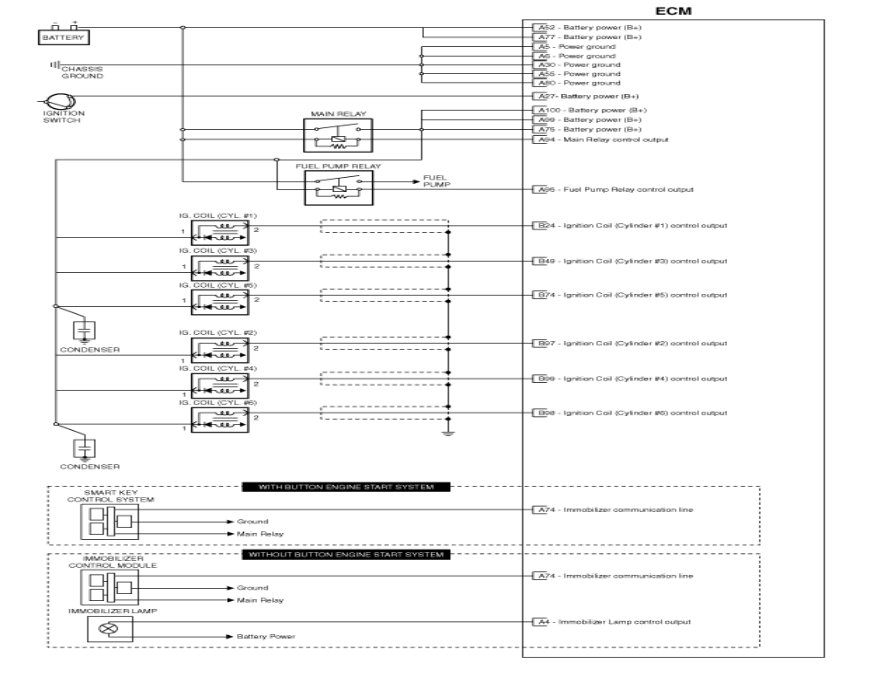

Fig 3: ECM Circuit Diagram (3 Of 5)

Courtesy of HYUNDAI MOTOR CO.

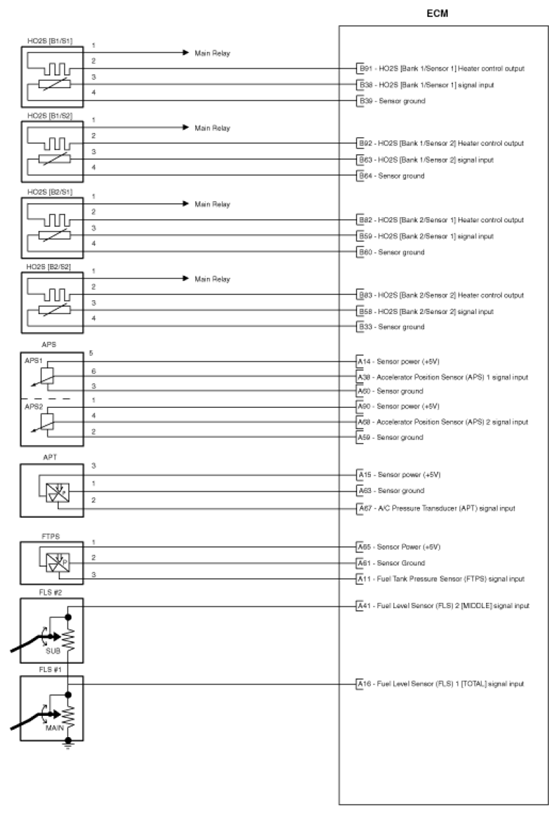

Fig 4: ECM Circuit Diagram (4 Of 5)

Courtesy of HYUNDAI MOTOR CO.

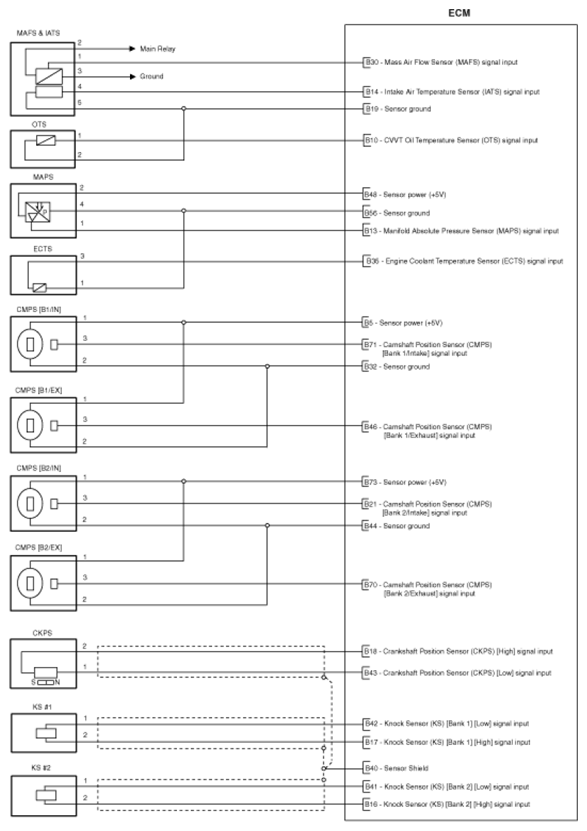

Fig 5: ECM Circuit Diagram (5 Of 5)

Courtesy of HYUNDAI MOTOR CO.
