Wave Form

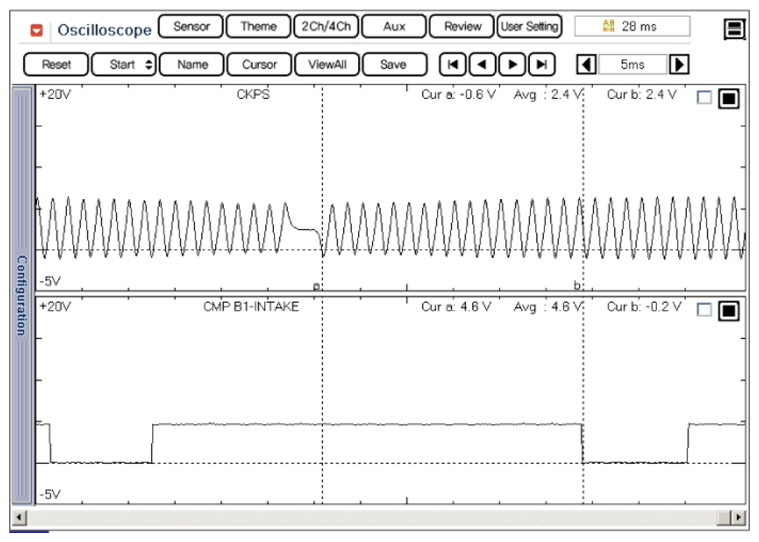

Fig 1: CKPS & CMPS - Waveform Graph (Normal Waveform at idle)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
