Engine Control Module





ECM Terminal And Input/Output signal

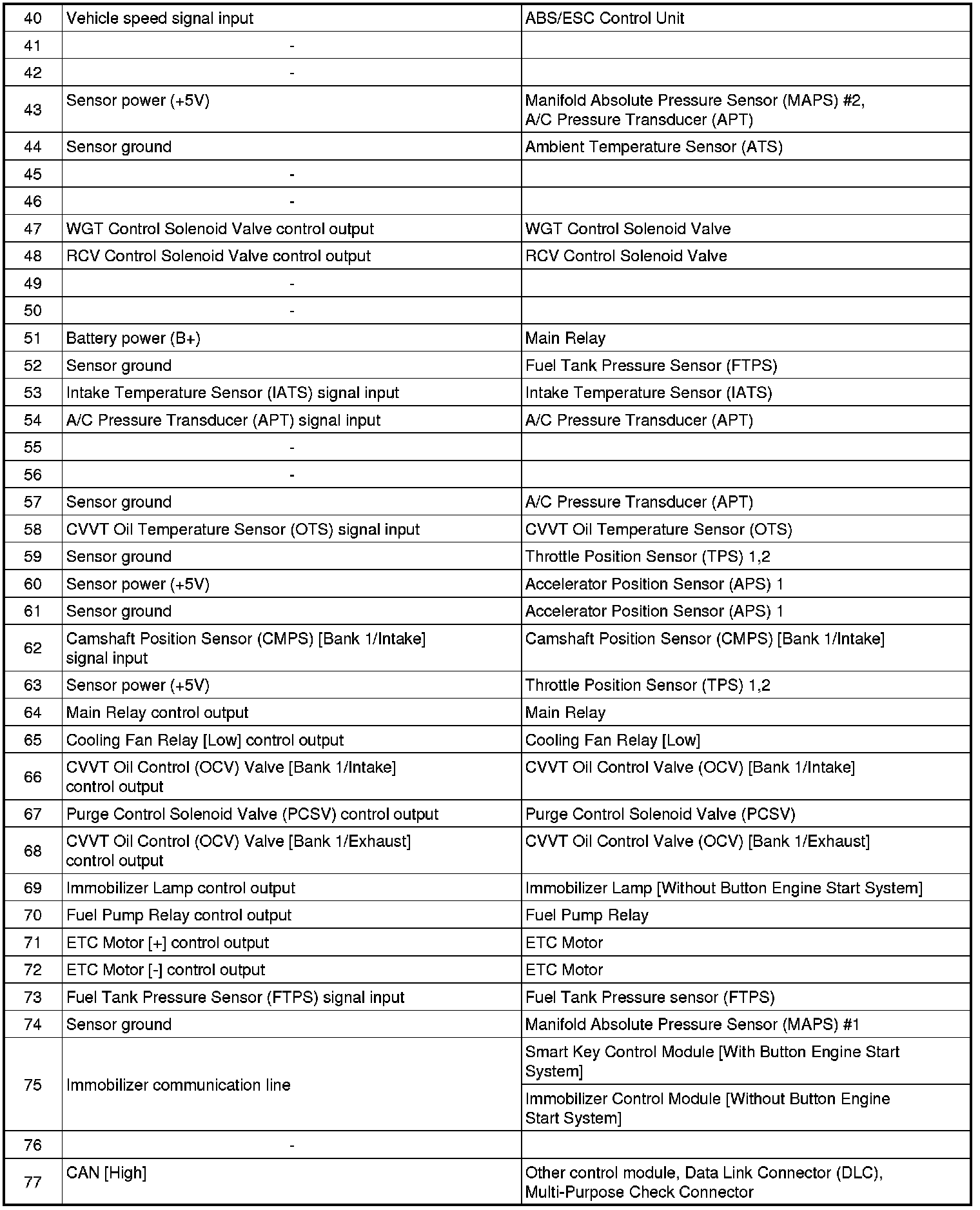

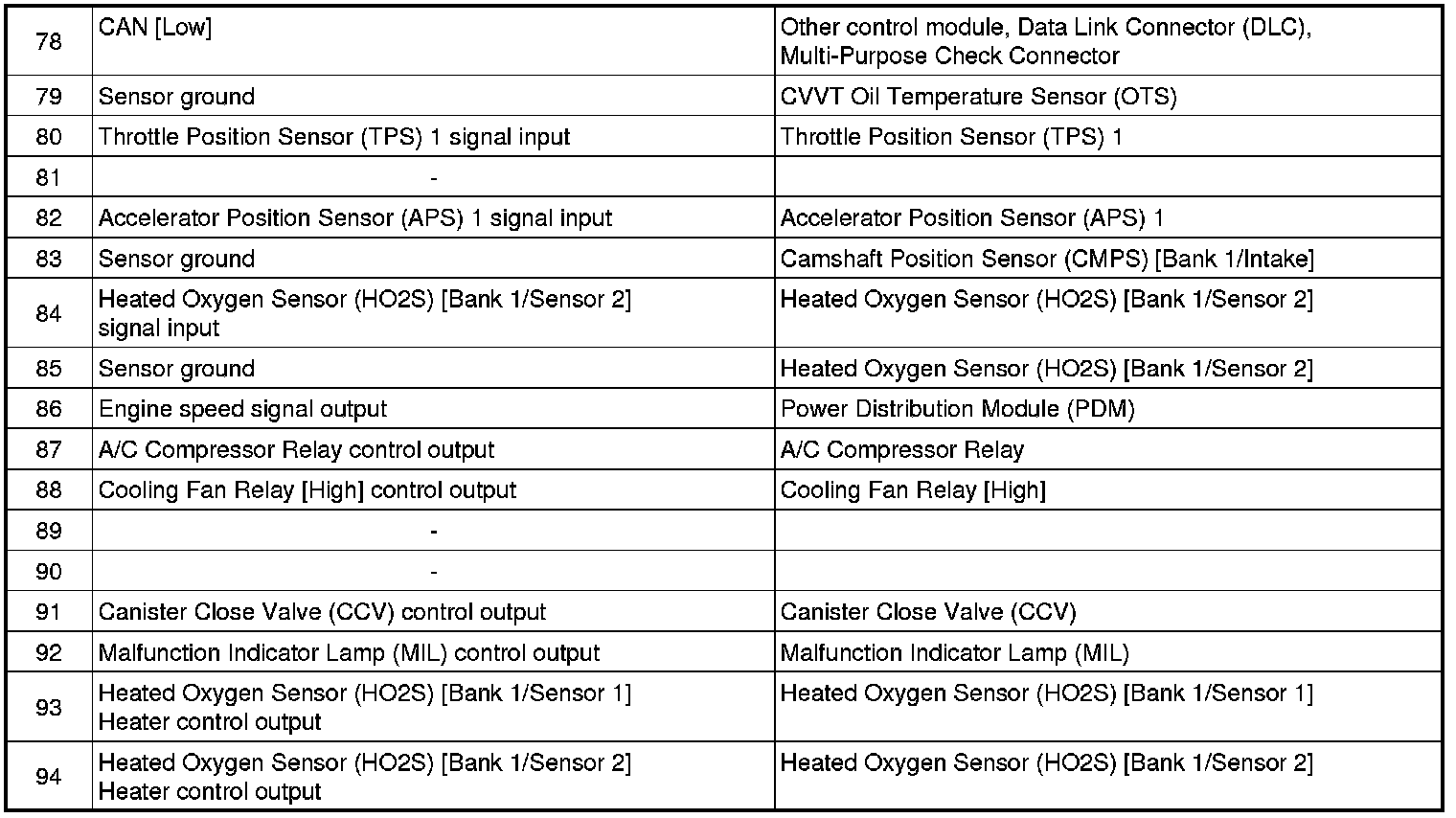

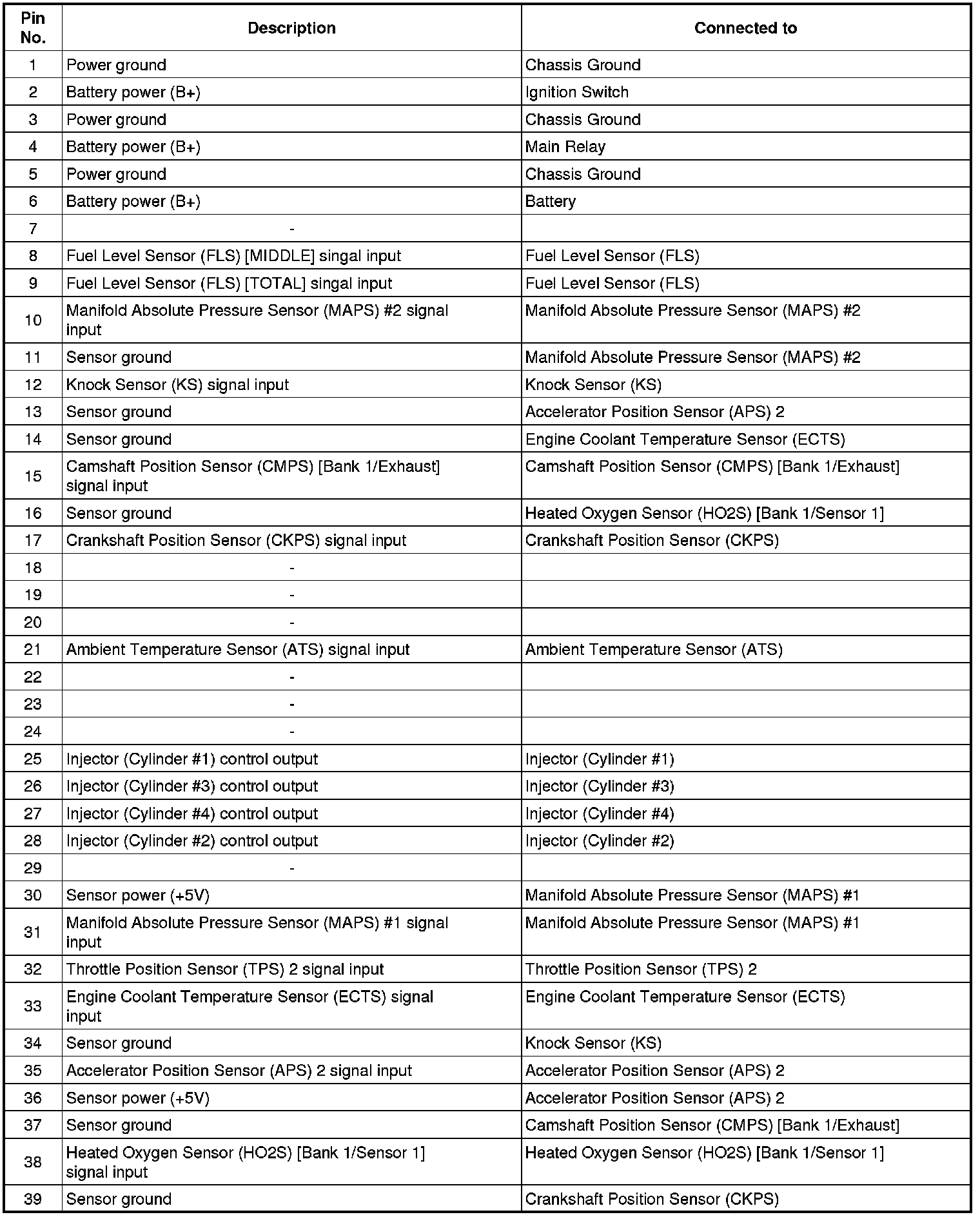

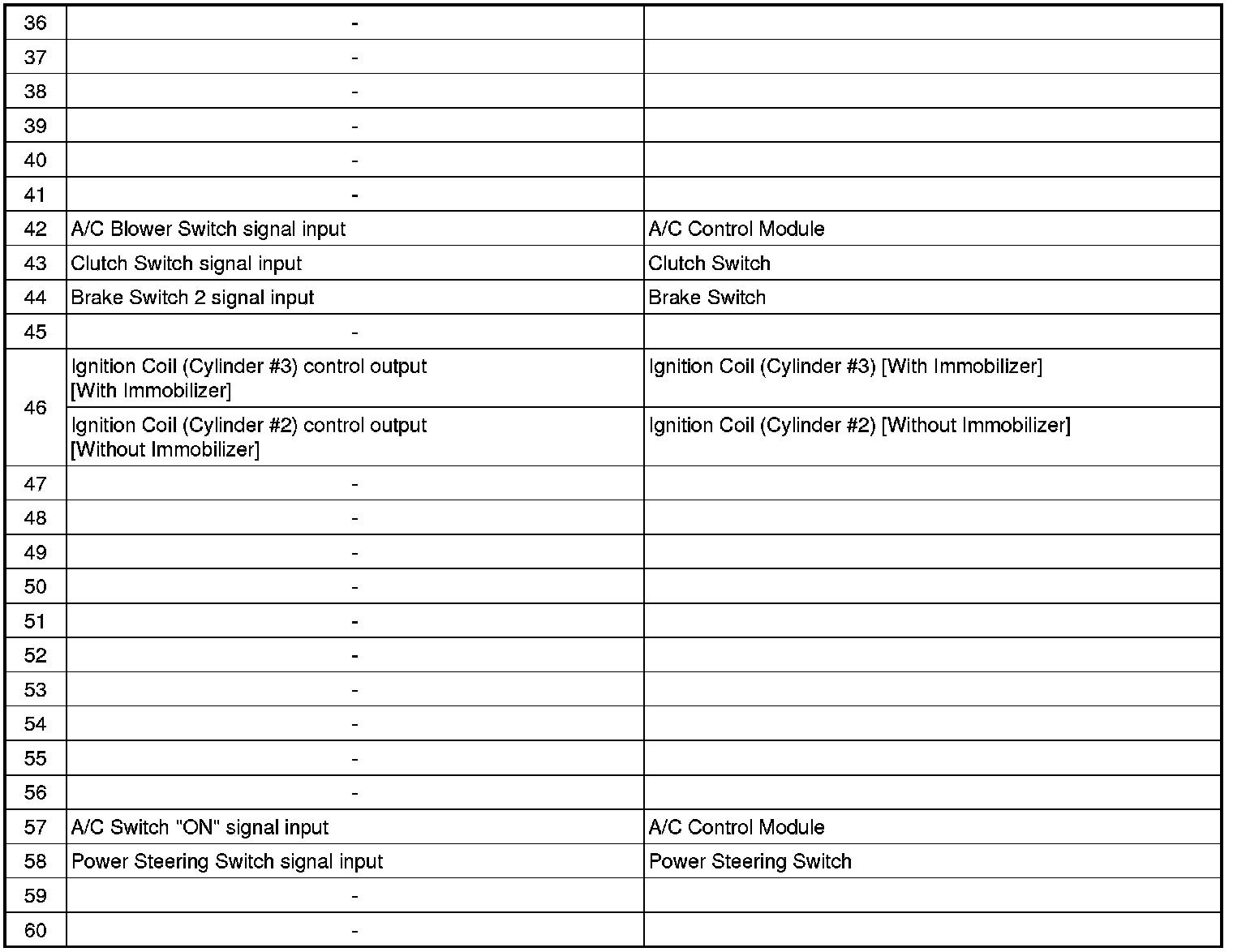

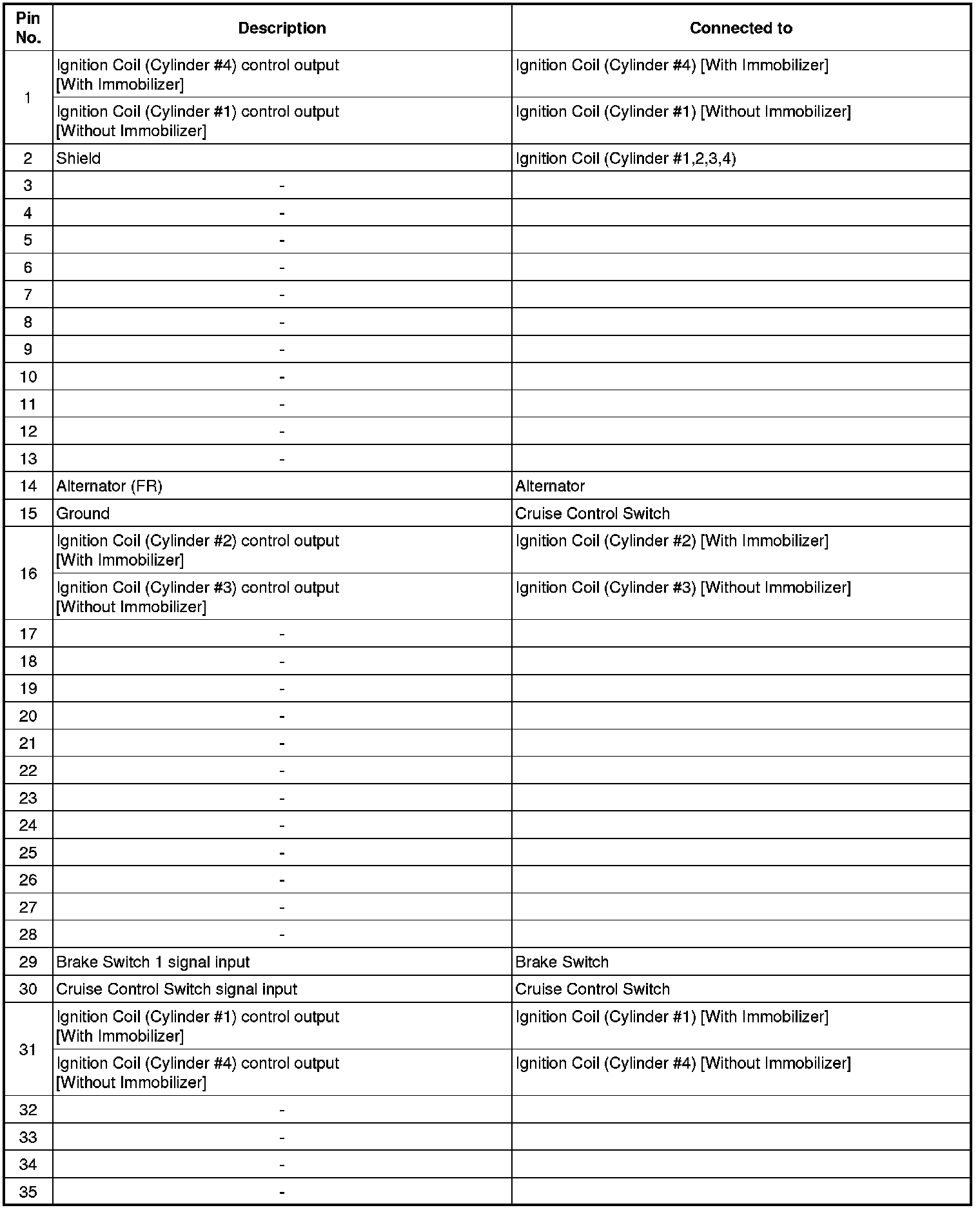

ECM Terminal Function

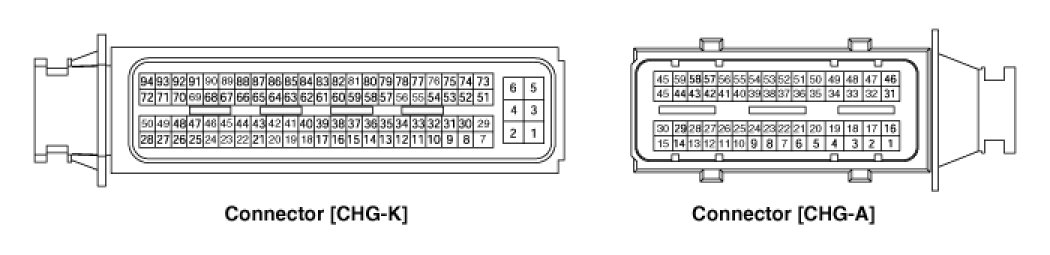

Connector [CHG-K]













Connector [CHG-A]

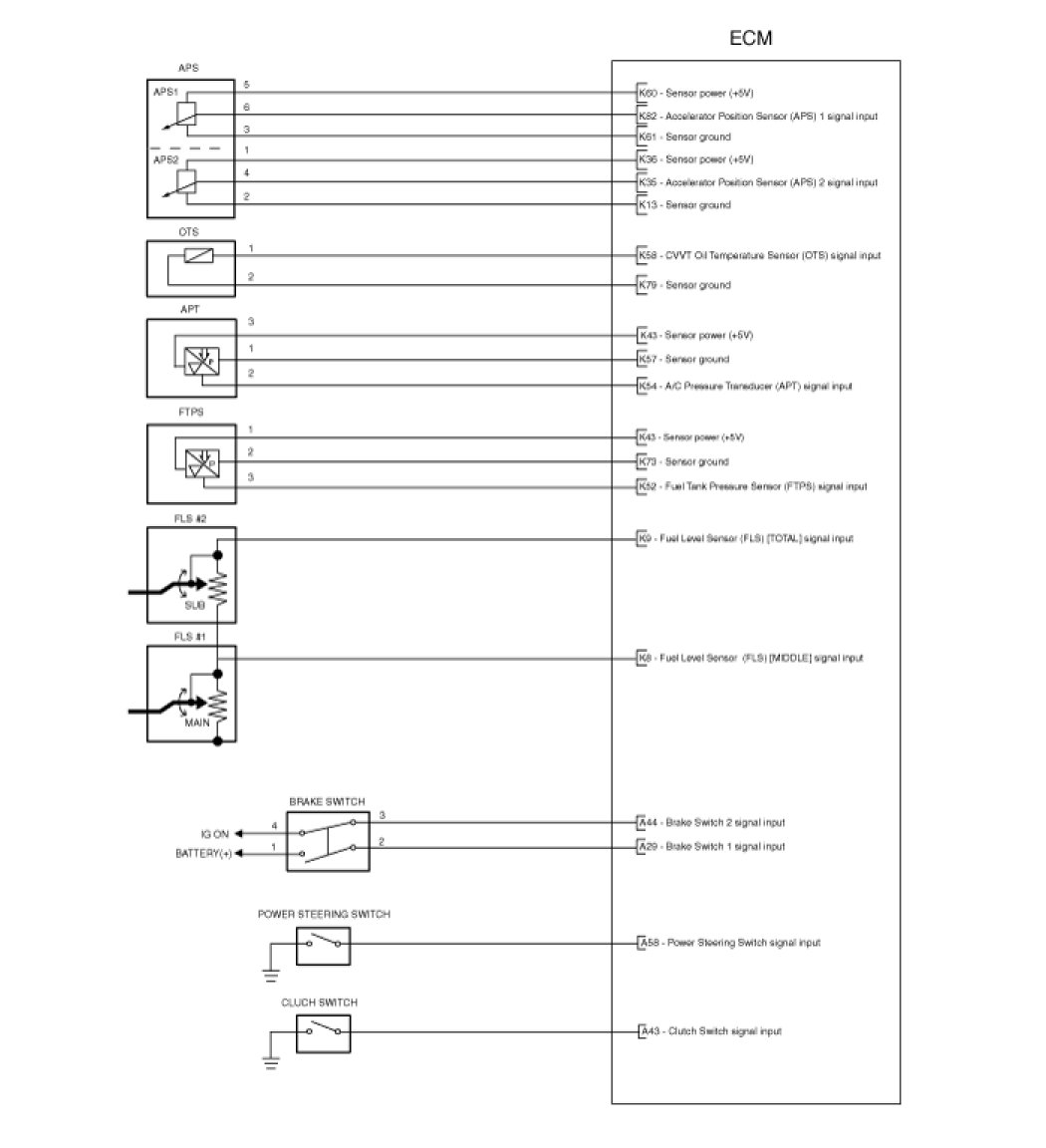

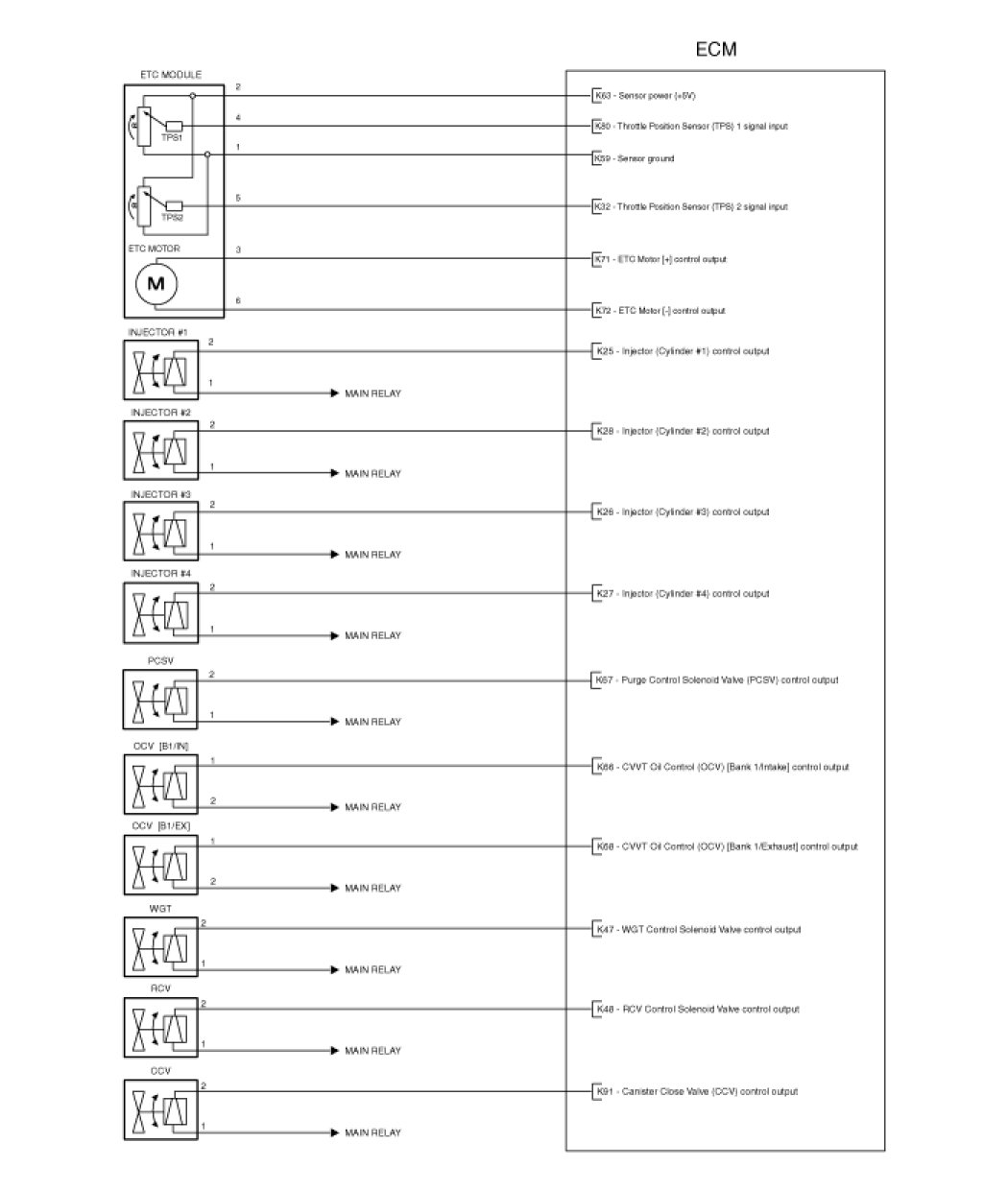

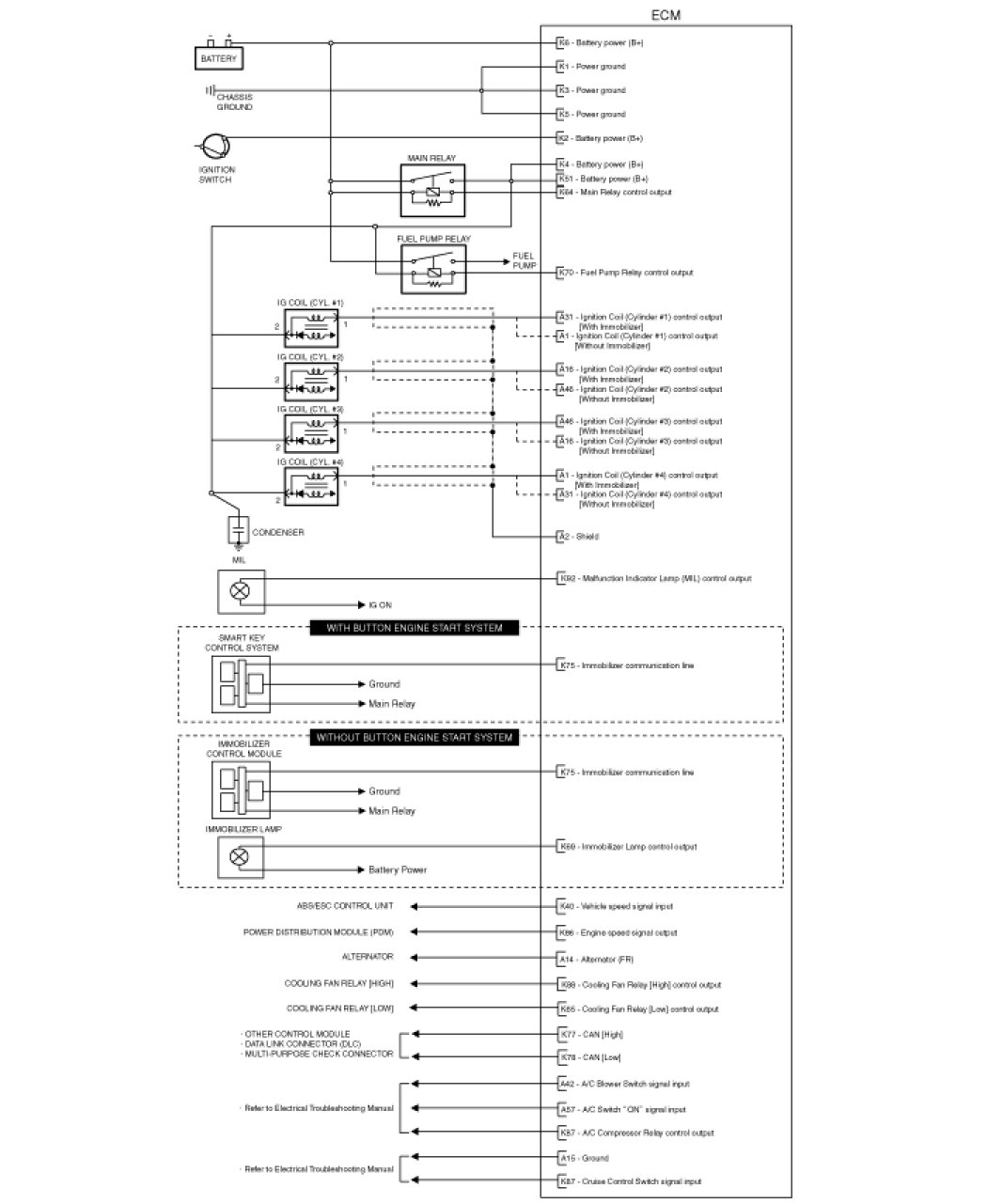

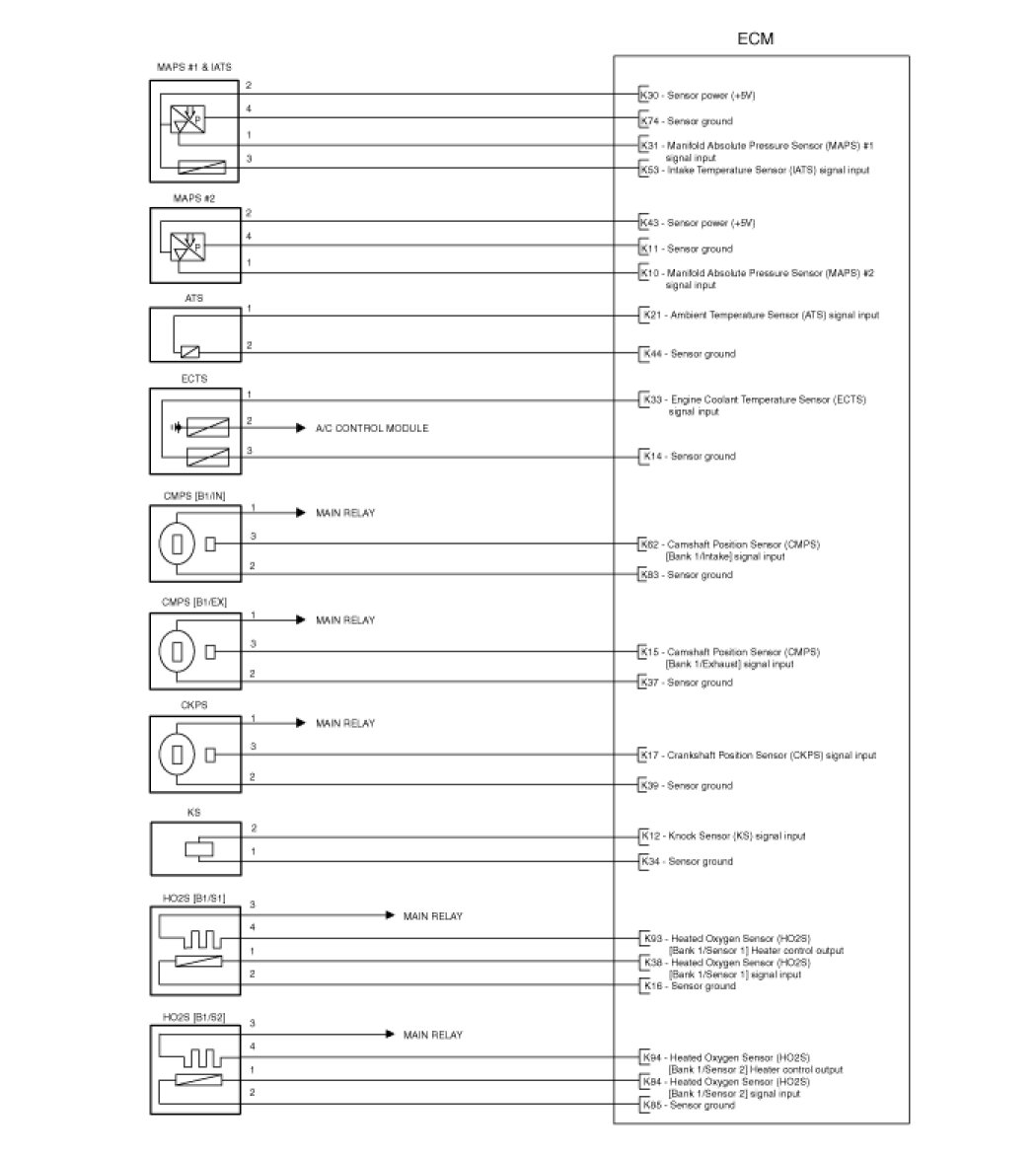

Circuit Diagram
