Front Subframe: Service and Repair

Replacement

1. Remove the front wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

2. Remove the lower arm.

3. Remove the front strut assembly.

4. Remove the front stabilizer.

5. Remove the steering gear box.

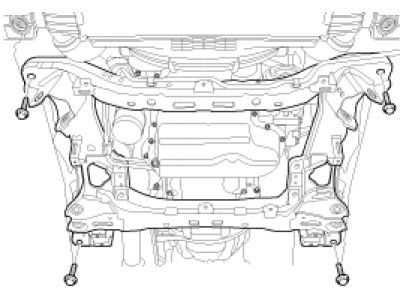

6. Remove the cross member from the body by loosening the mounting bolts and nuts.




7. Installation is the reverse of removal.
8. Check the alignment.
