Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.

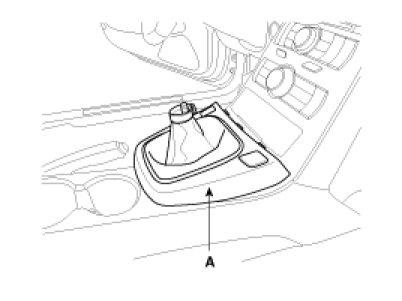

2. Remove the console upper cover(A).





3. Remove the center fascia lower panel(A).

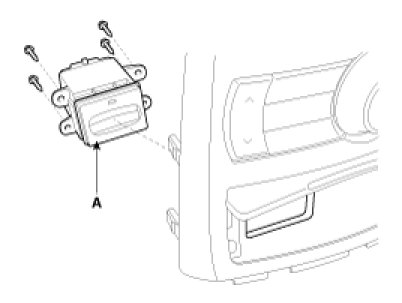

4. Disconnect the connector and remove the fob holder(A) after loosening the mounting screws.






Installation

1. Install the fob holder assembly.
2. Install the center fascia lower panel.
3. Install the console upper cover.
