IMS Power Seat Control

Removal

1. Disconnect the negative (-) battery terminal.

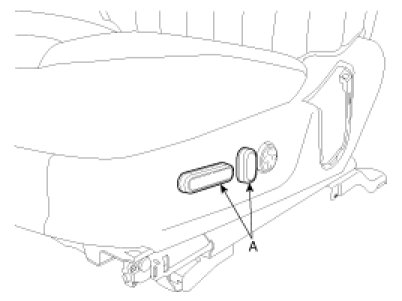

2. Remove the seat control switch (A).

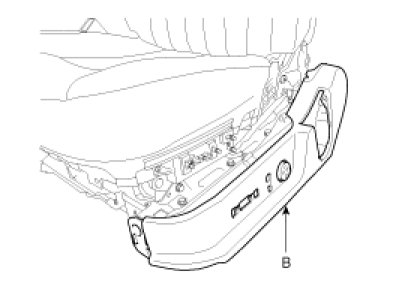

3. After loosening the mounting screws and crip, then remove the seat cover (A) and recliner cover (B).

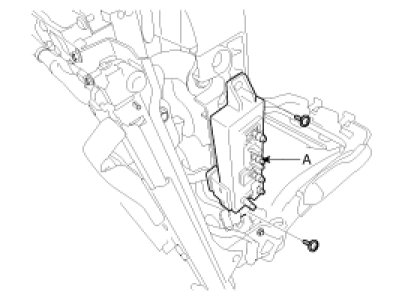

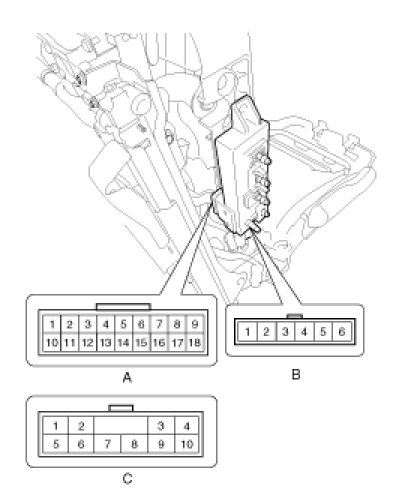

4. Loosen the power seat control switch (A) screws(2EA), then remove the connectors (2EA).






Installation

1. Connect the connectors and reassemble the power seat control switch.
2. Reassemble the recliner cover and seat front cover.

Inspection

1. Remove the seat control switch.

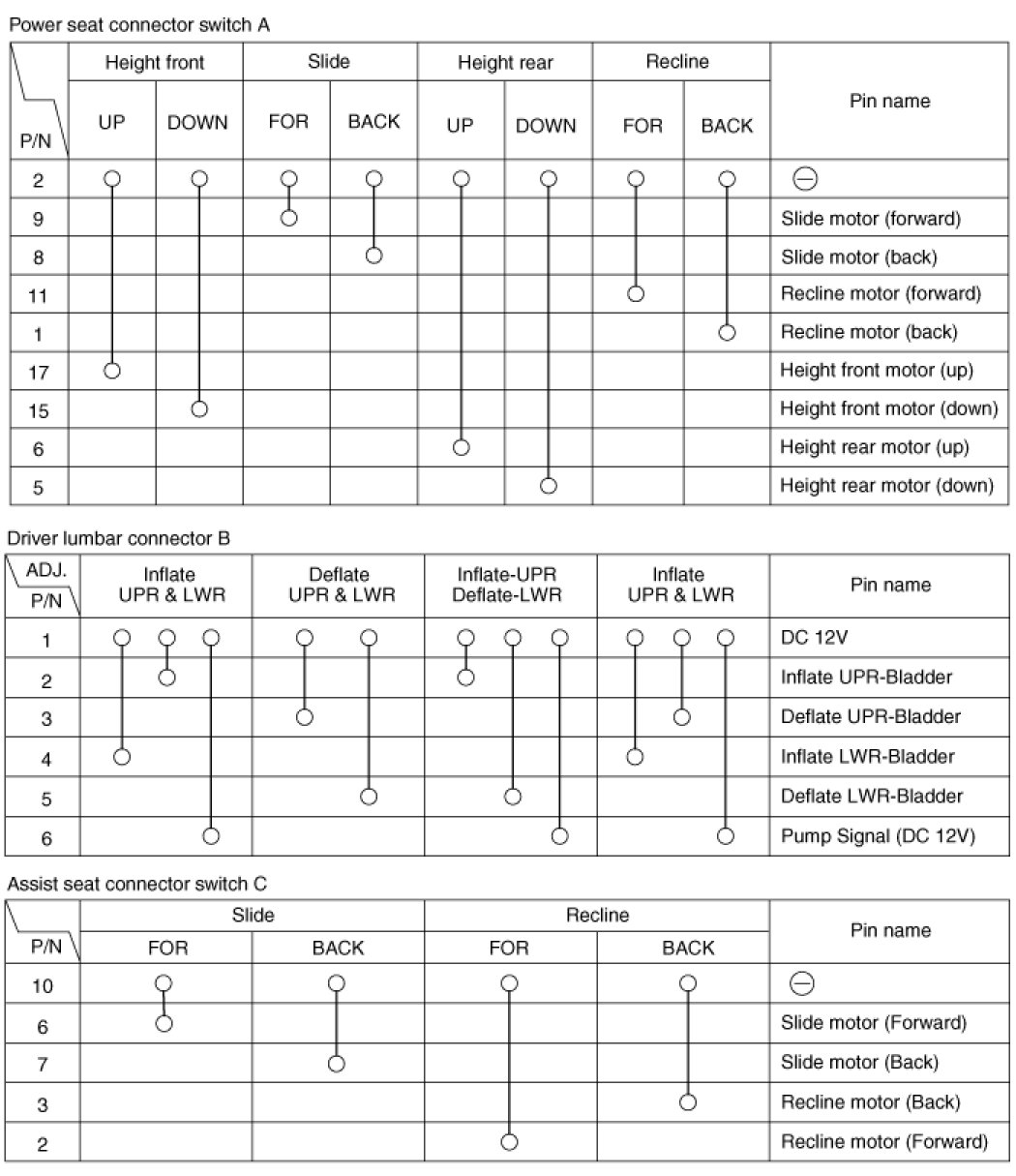

2. With the power seat control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat control switch.
