Electrical Diagrams





IDB terminal and Inoutput

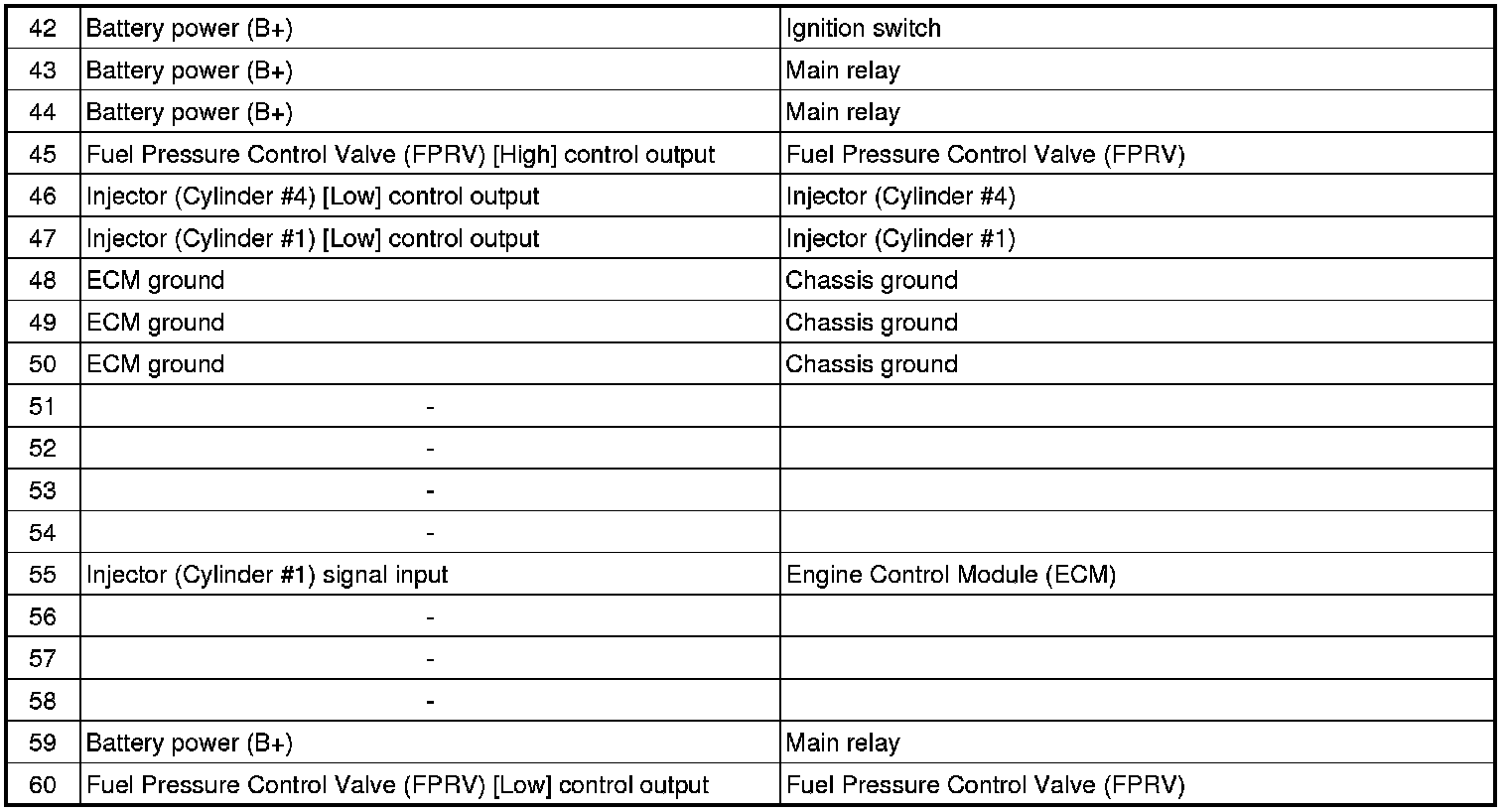

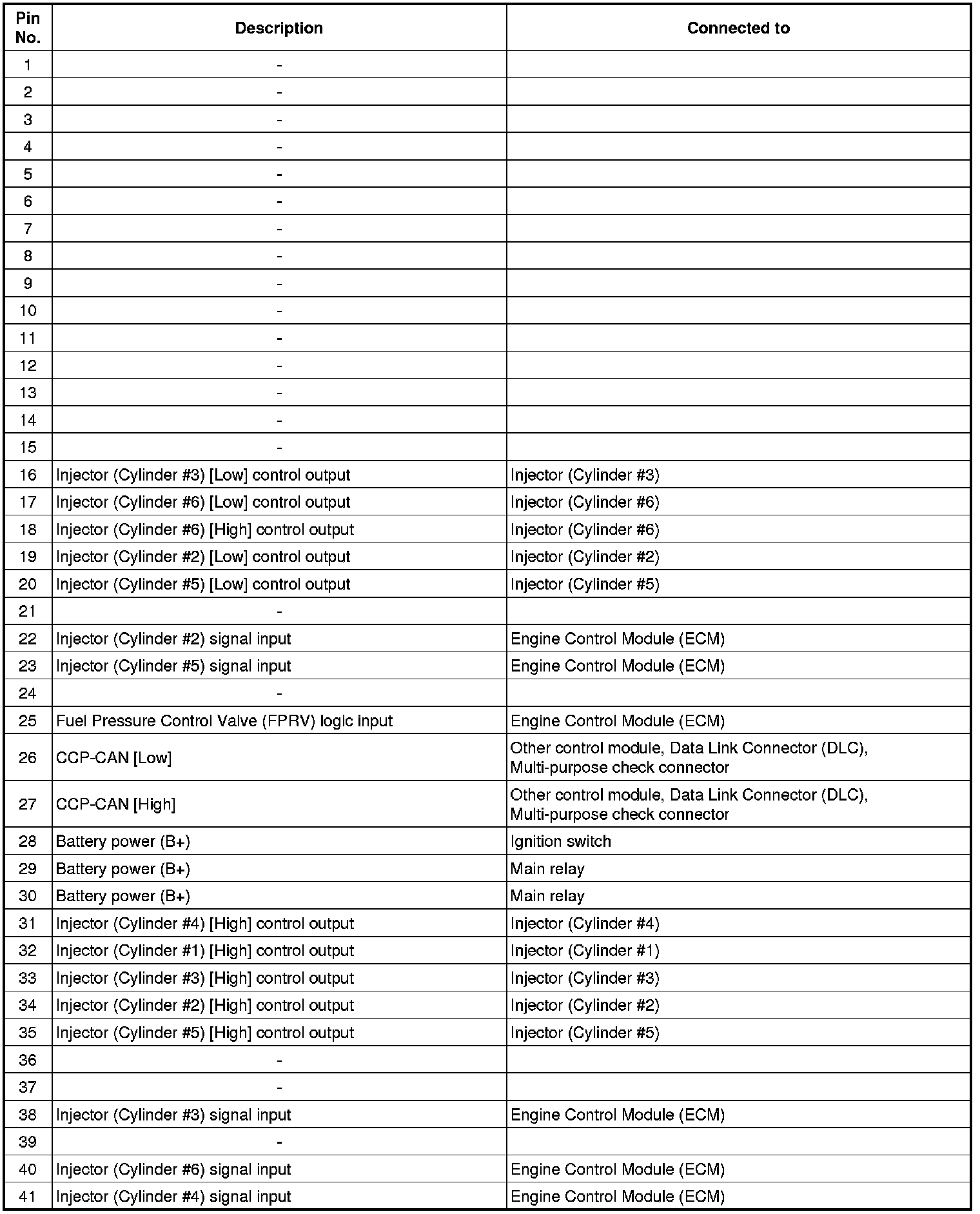

IDB terminal function
Connector [CLG-IDB]

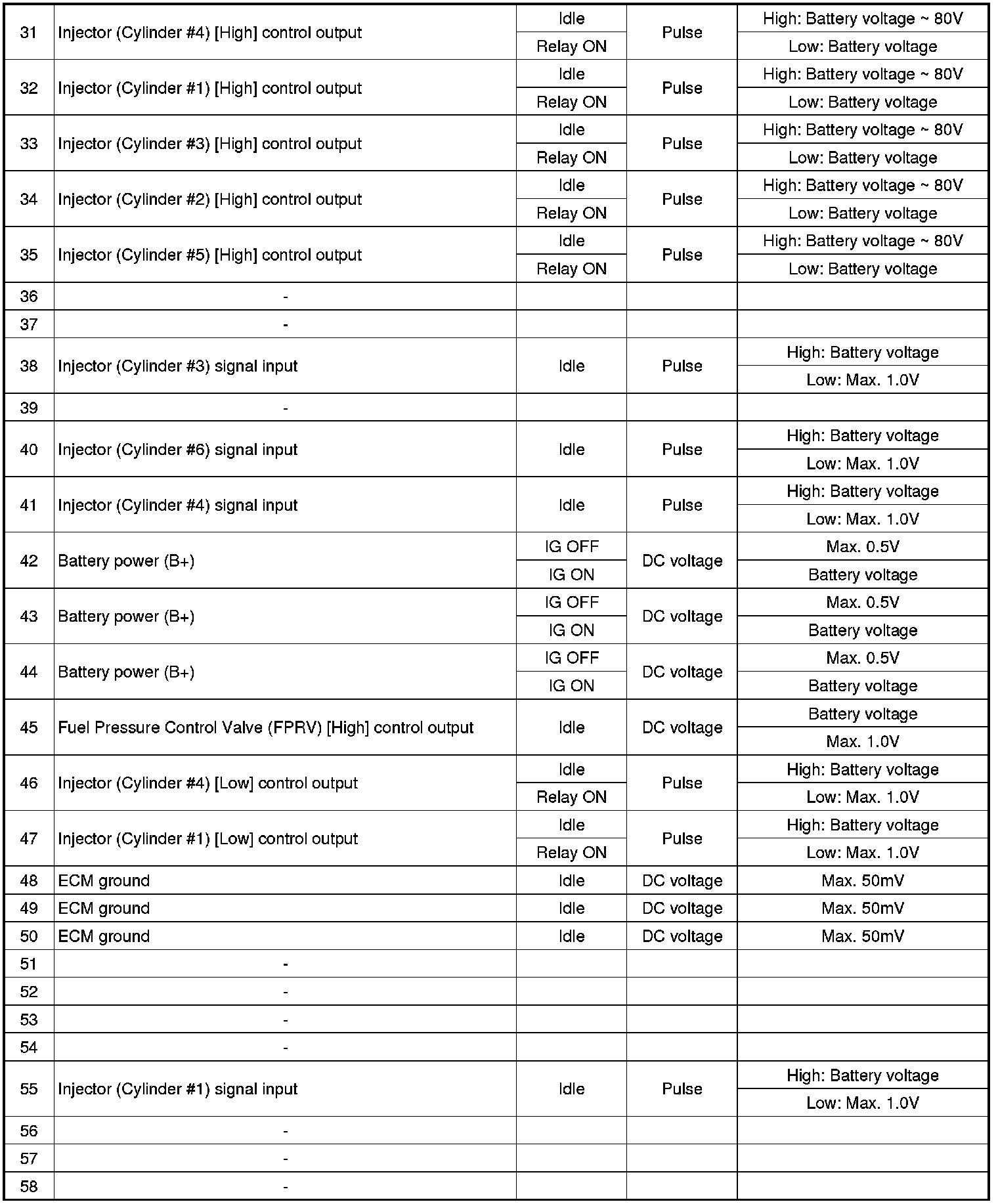

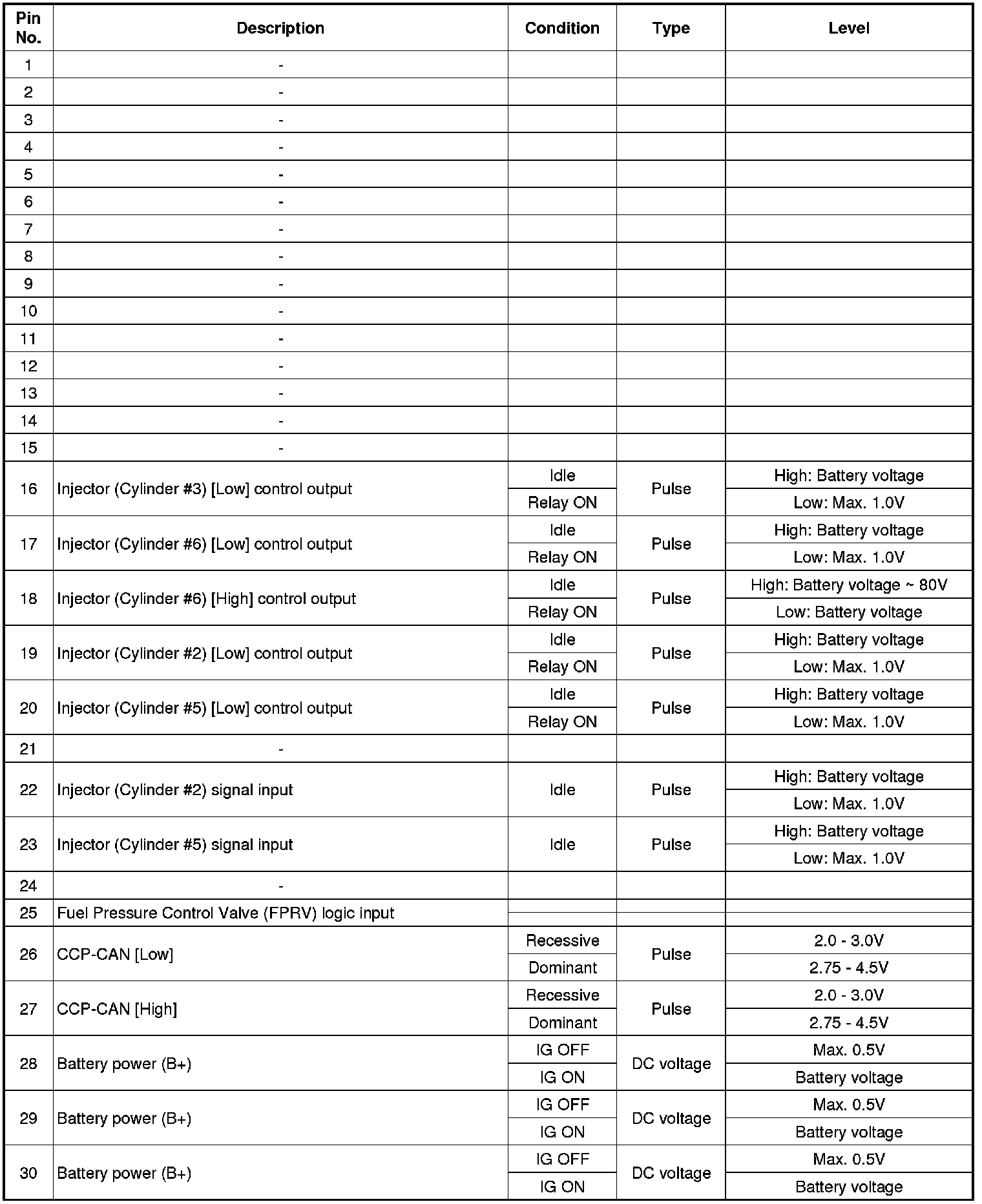

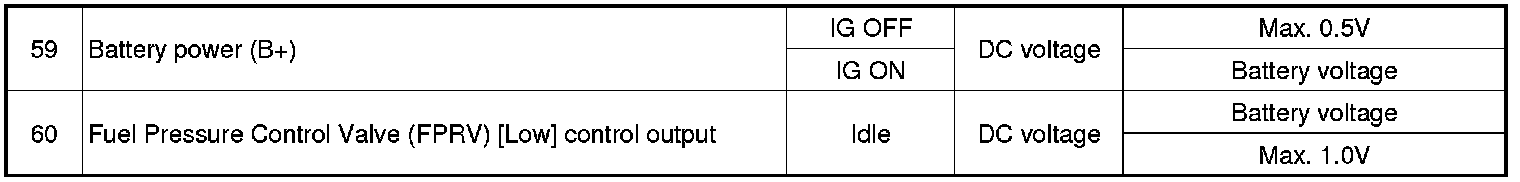

IDB Terminal input/output signal
Connector [CLG-IDB]














Circuit Diagram
