Engine Control Module





ECM Terminal And Input / Output signal

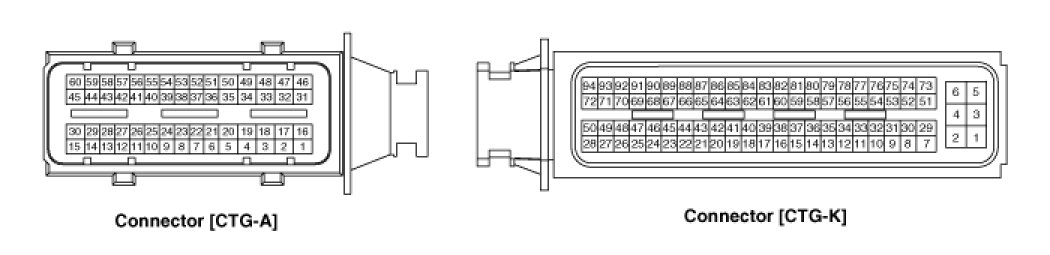

ECM Harness Connector

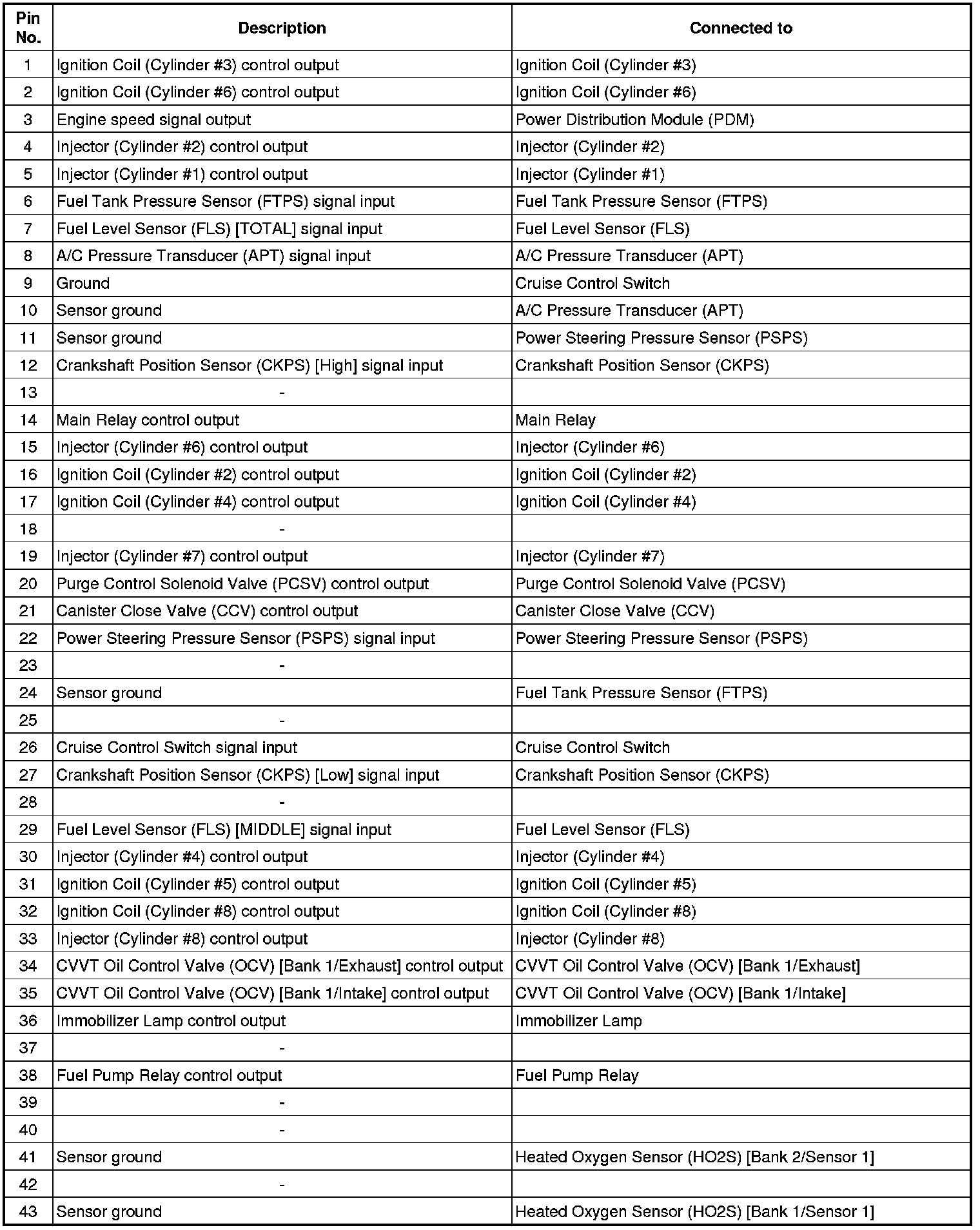

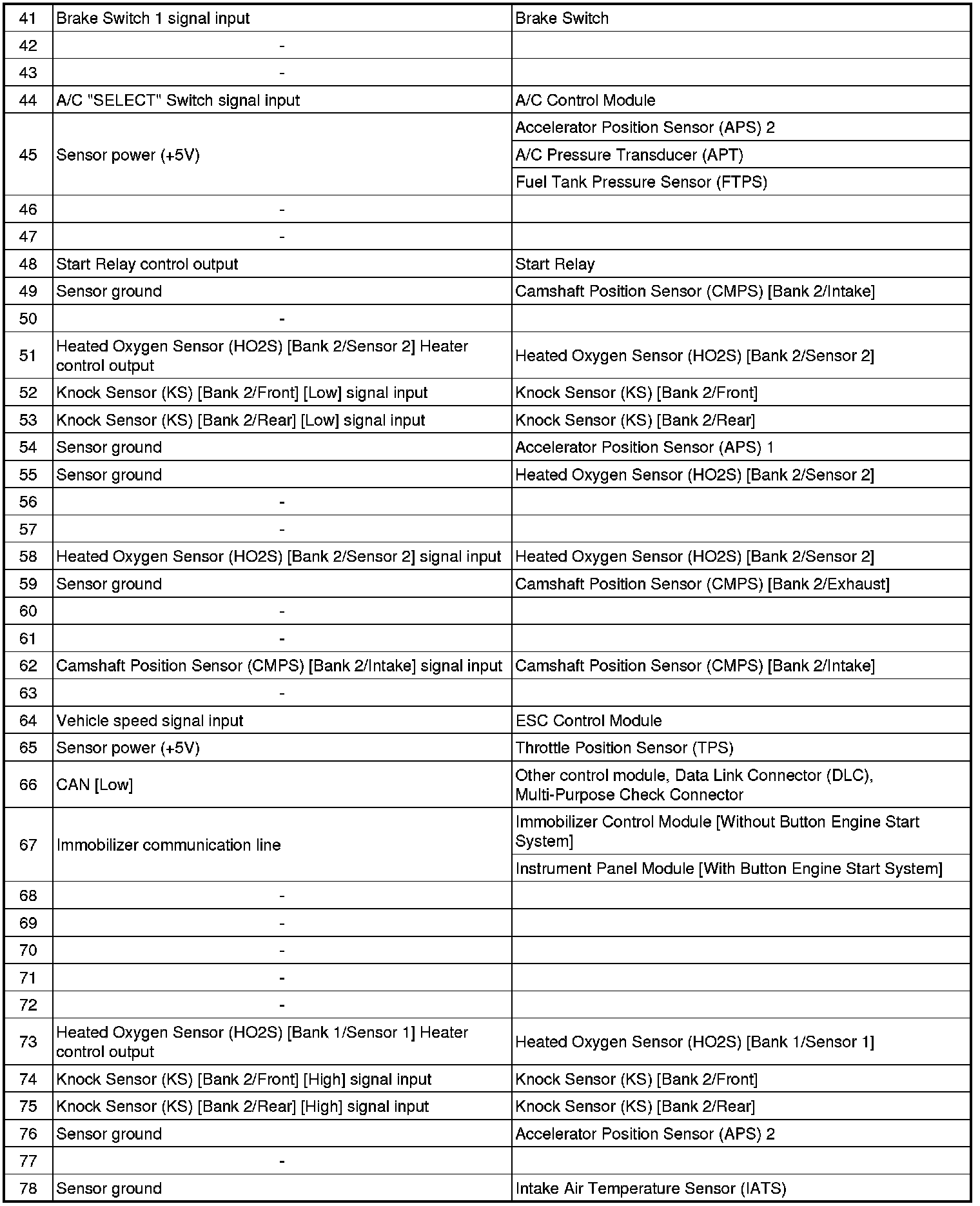

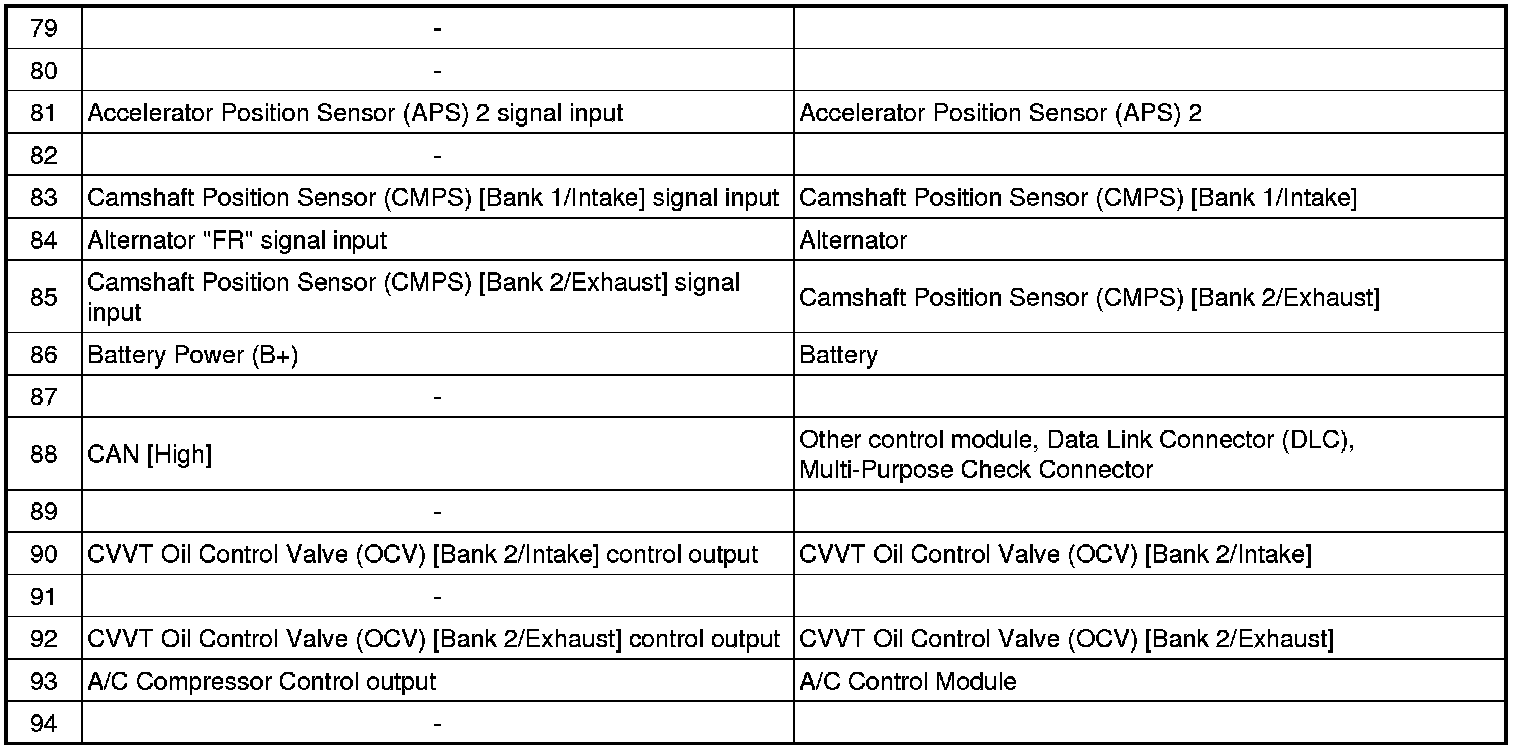

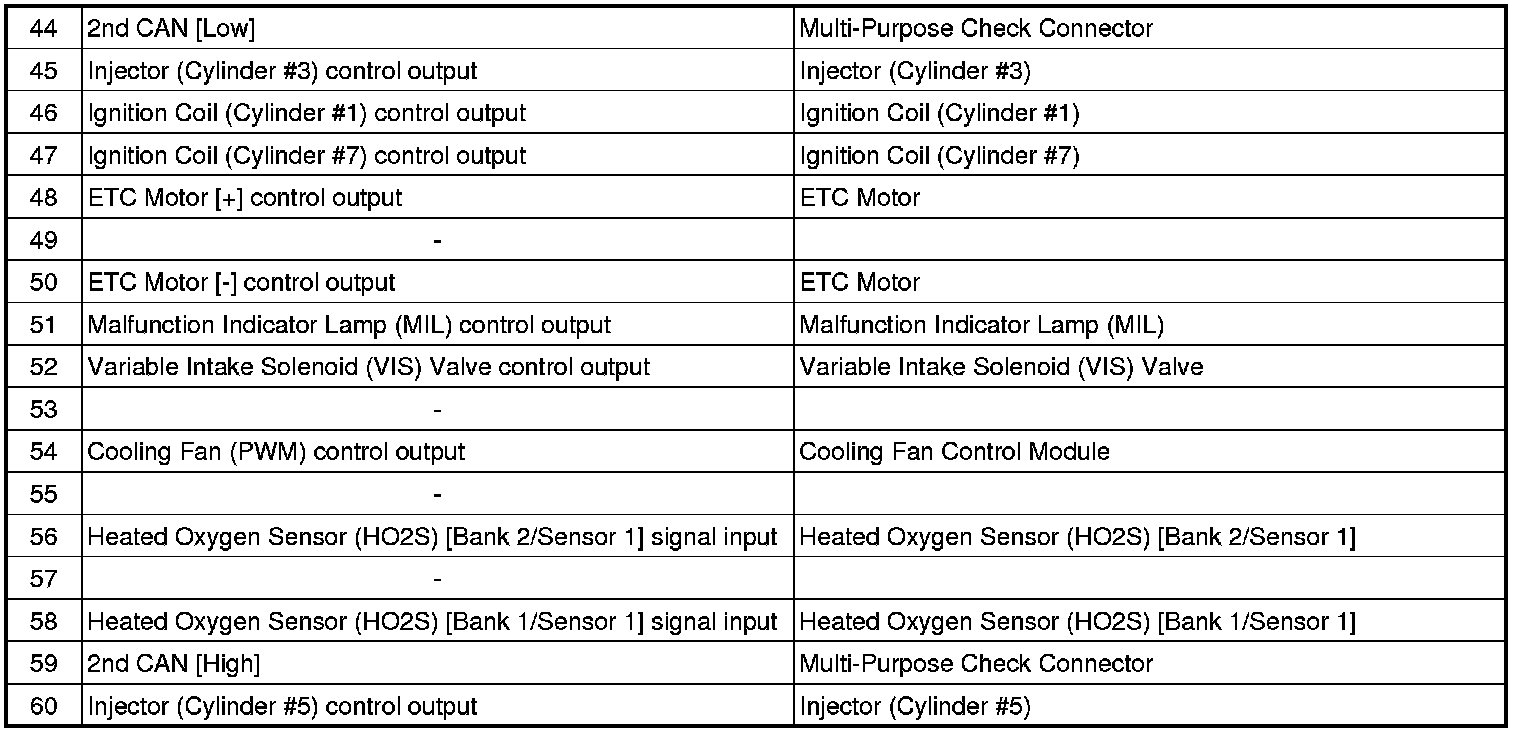

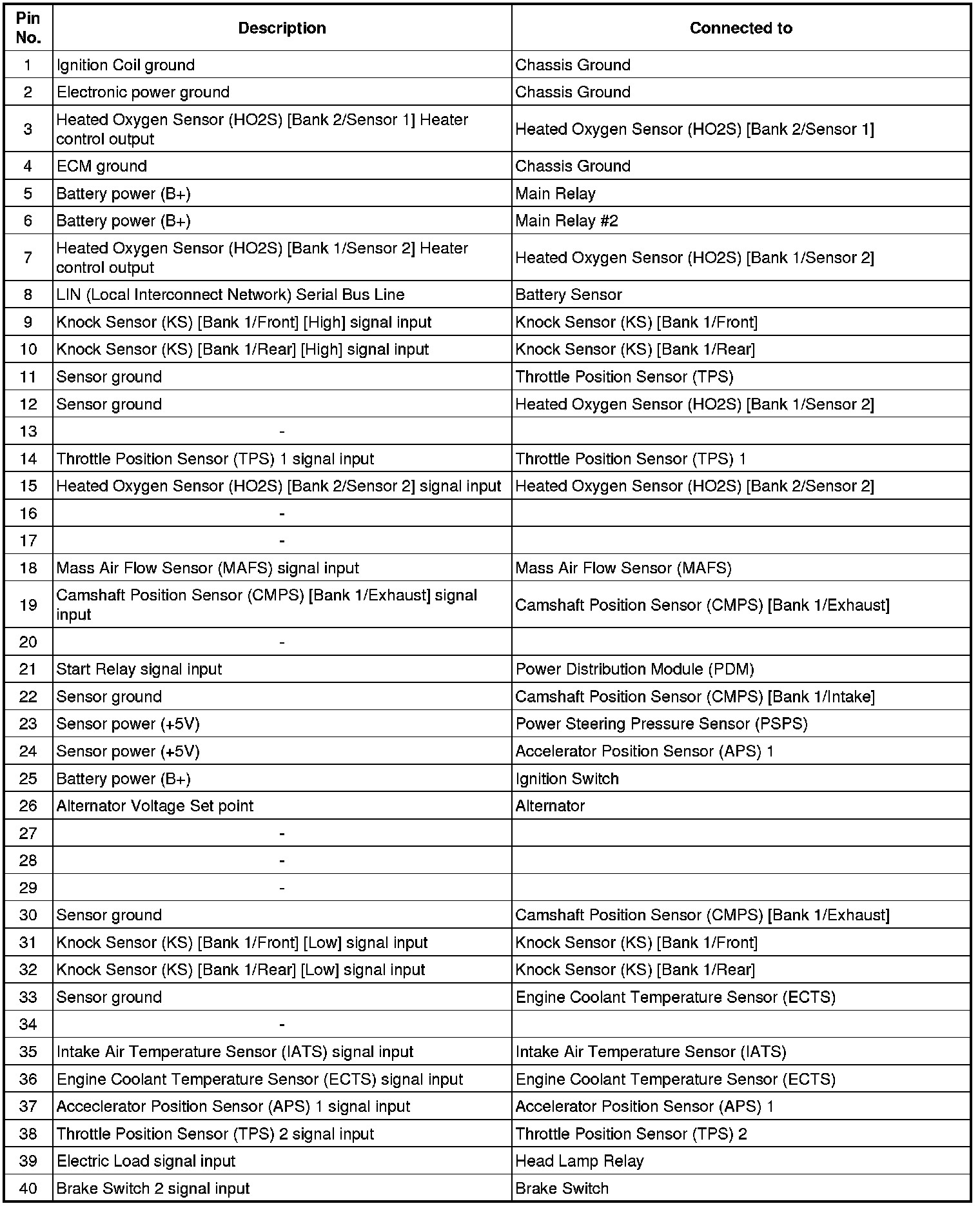

ECM Terminal Function
Connector [CTG-A]









Connector [CTG-K]

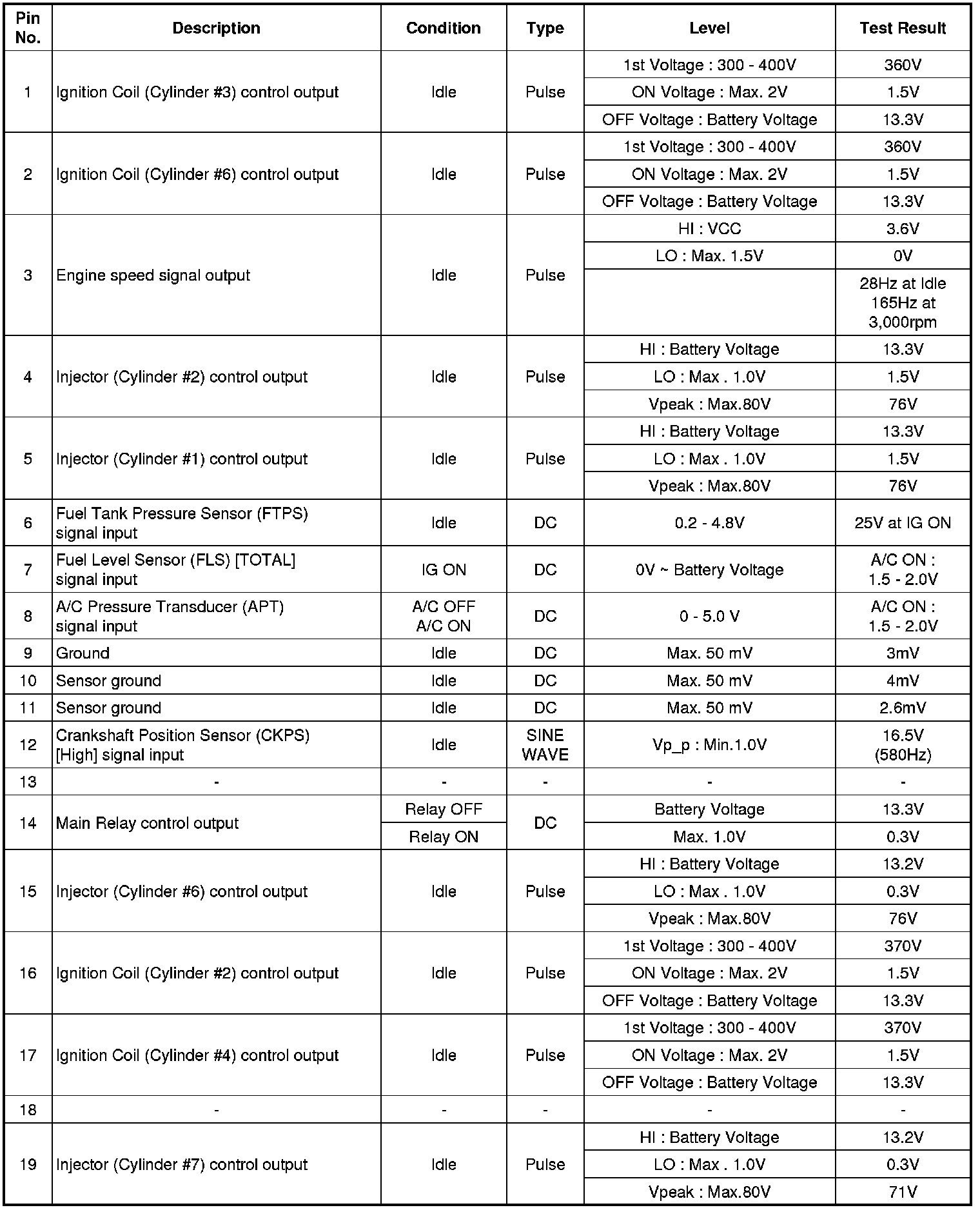

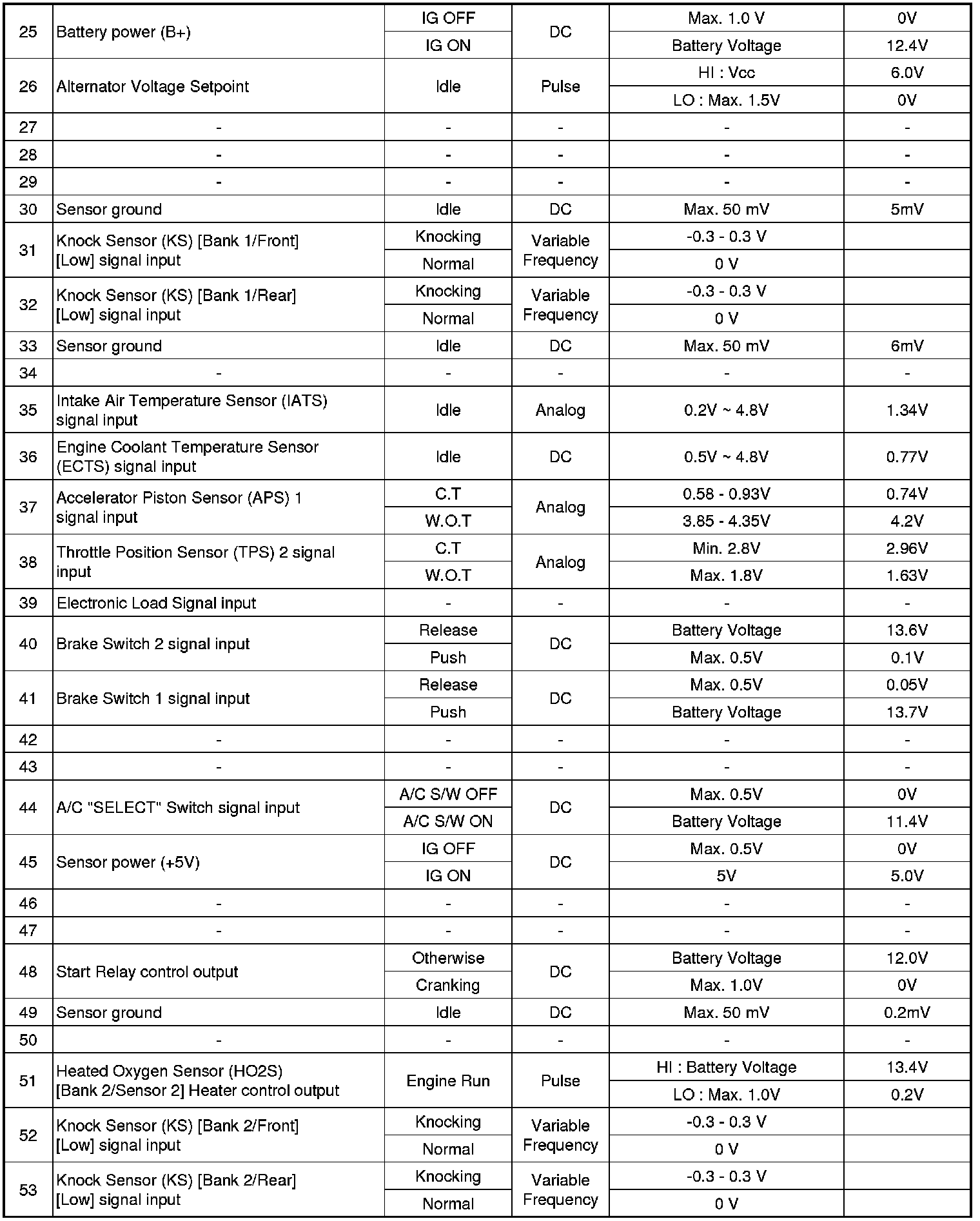

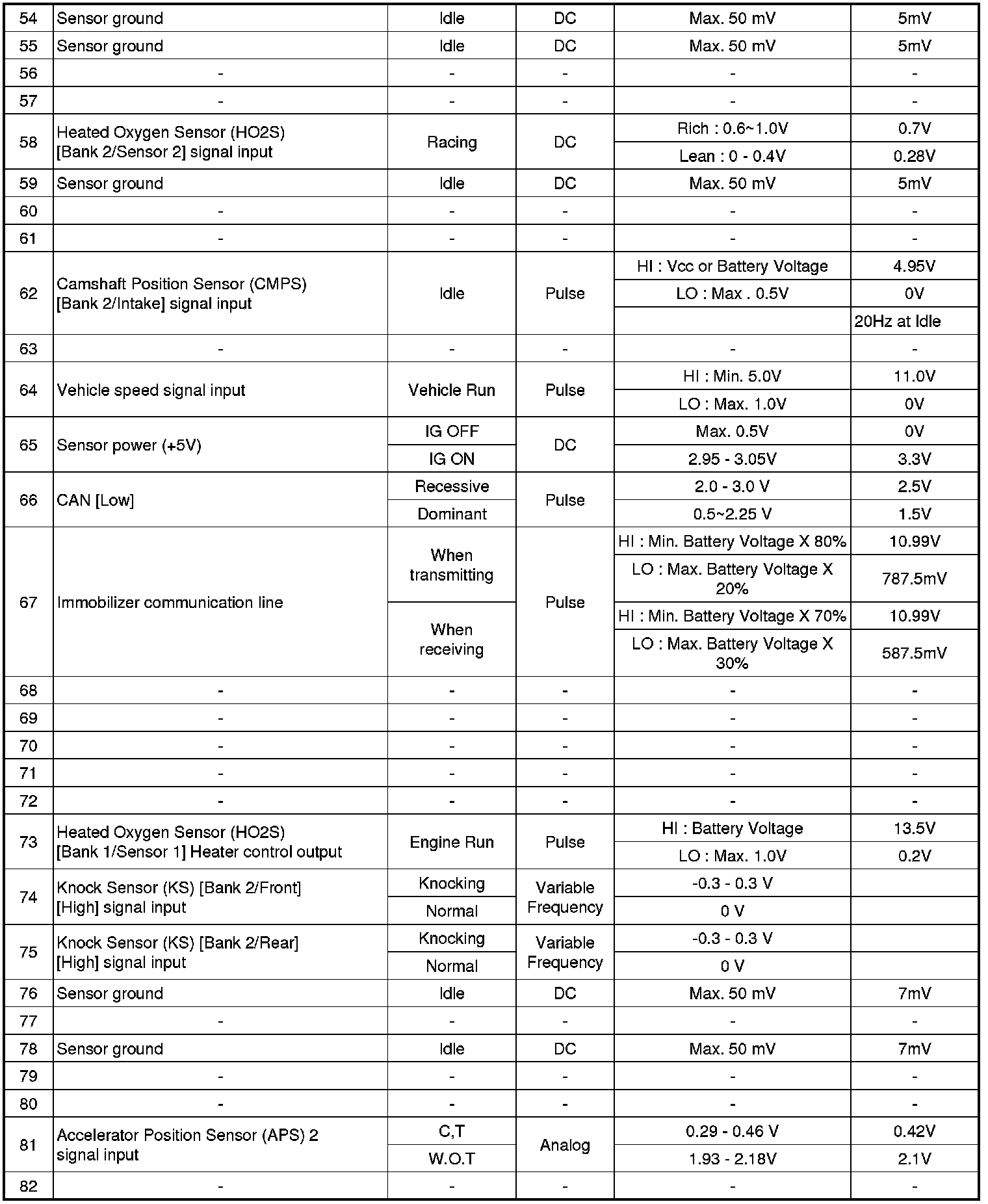

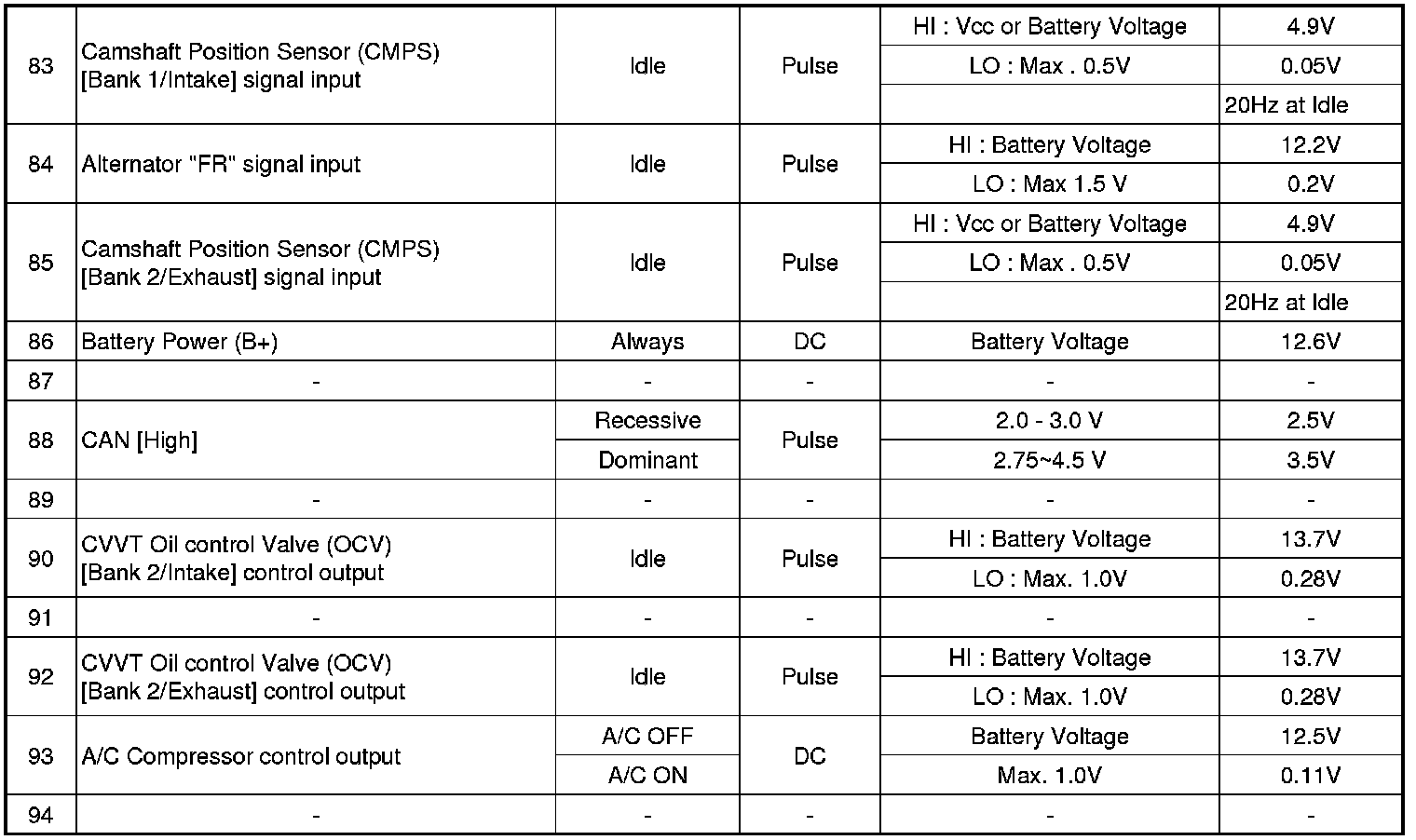

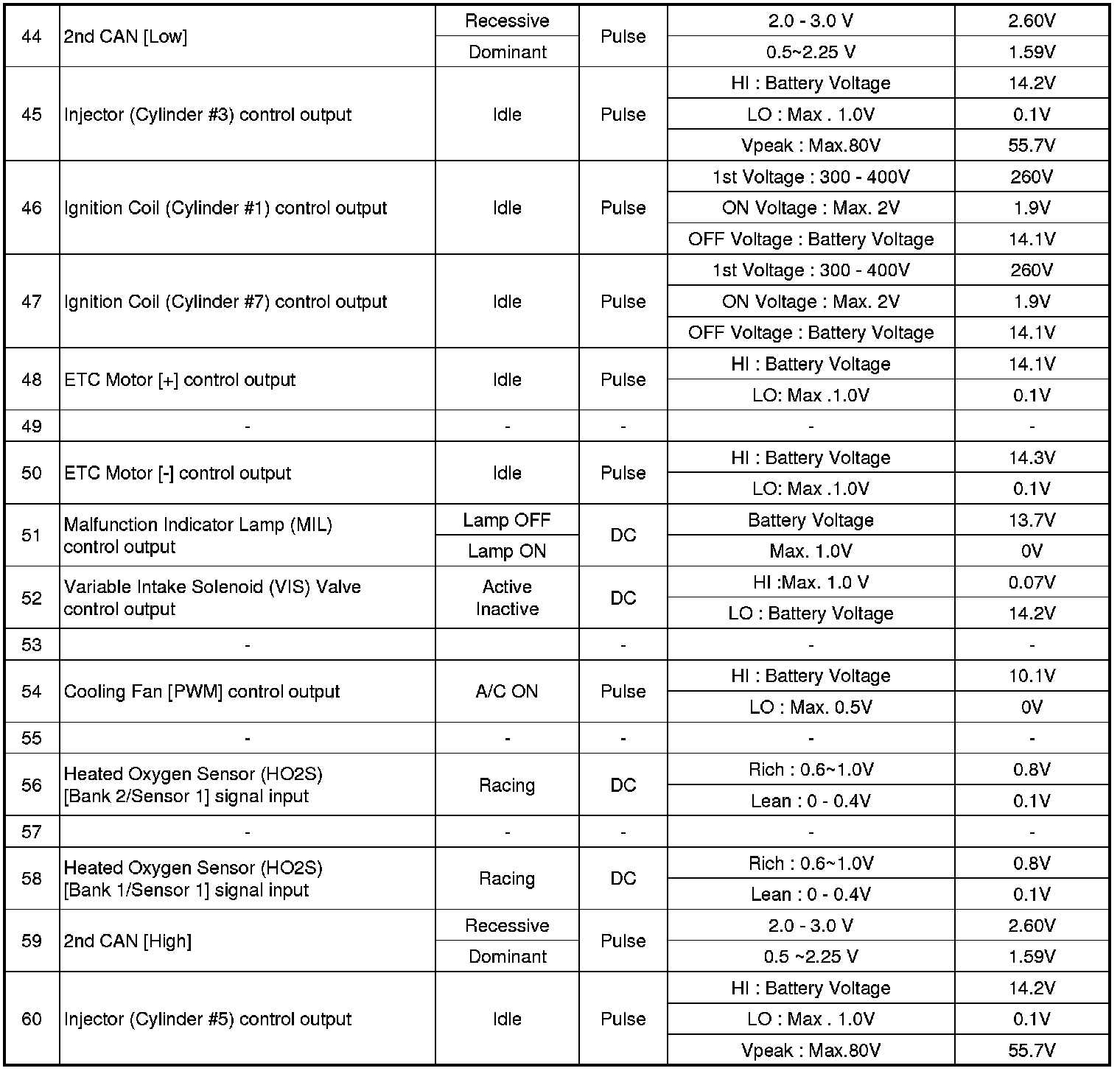

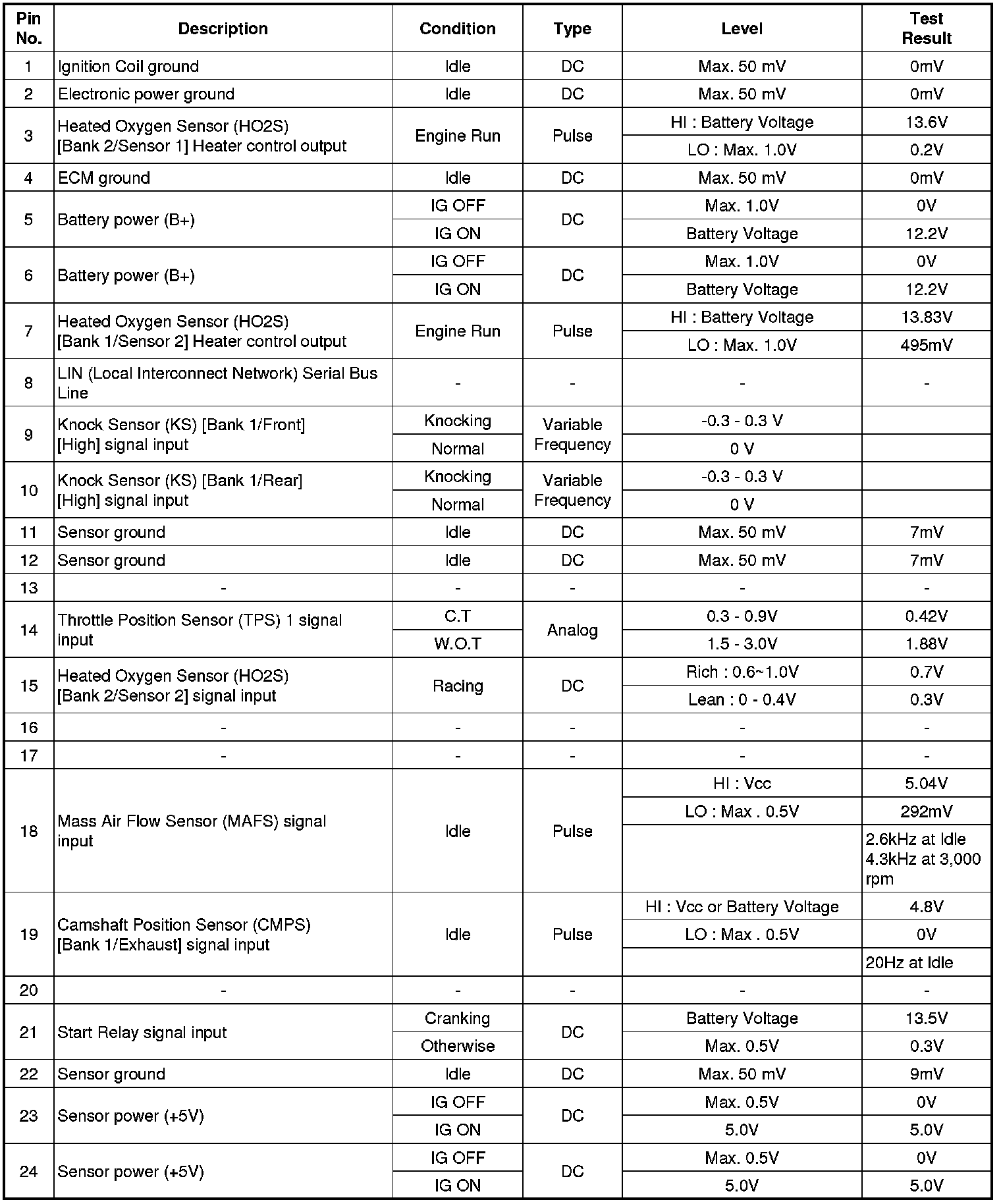

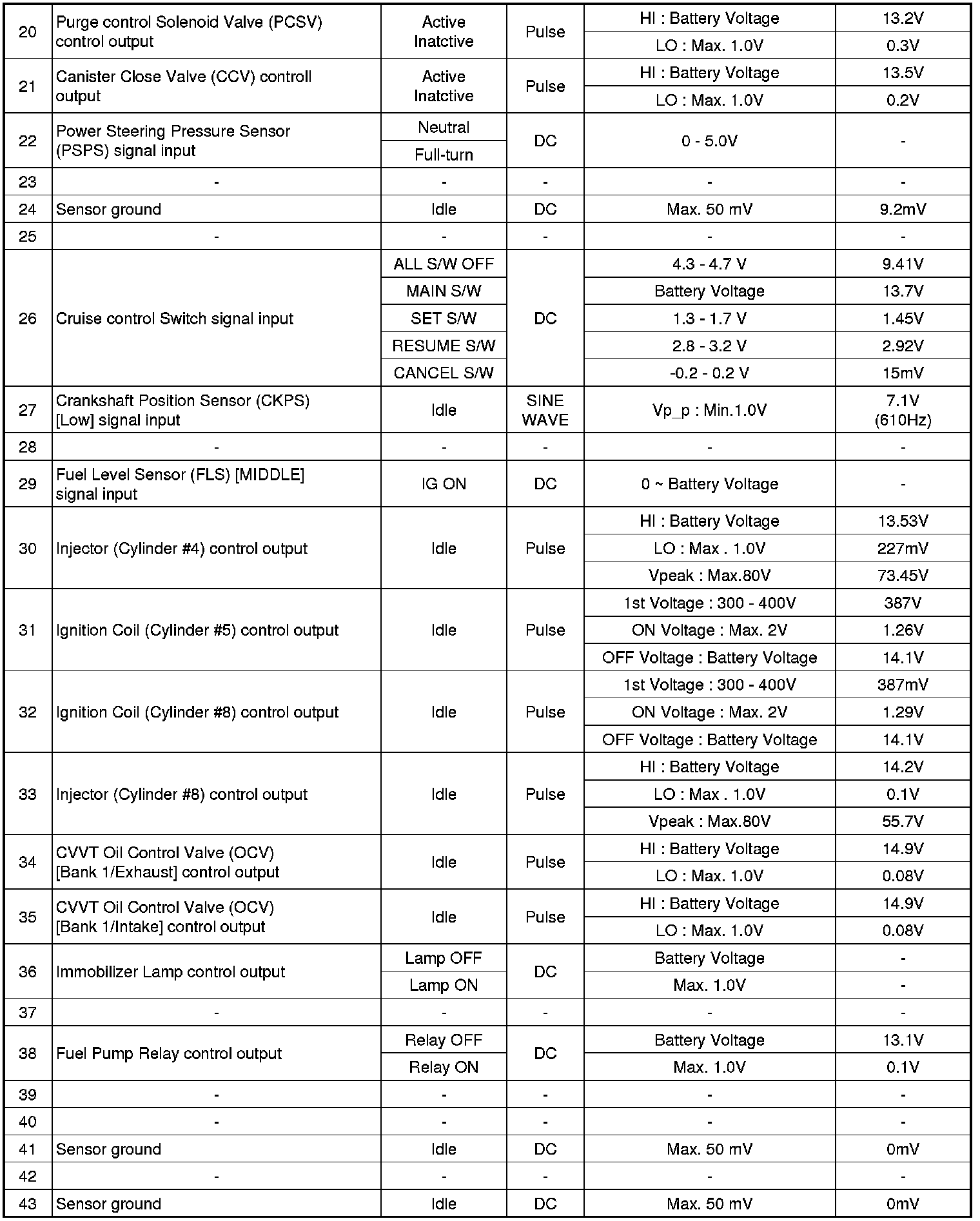

ECM Terminal Input/ Output signal
Connector [CTG-A]













Connector [CTG-K]

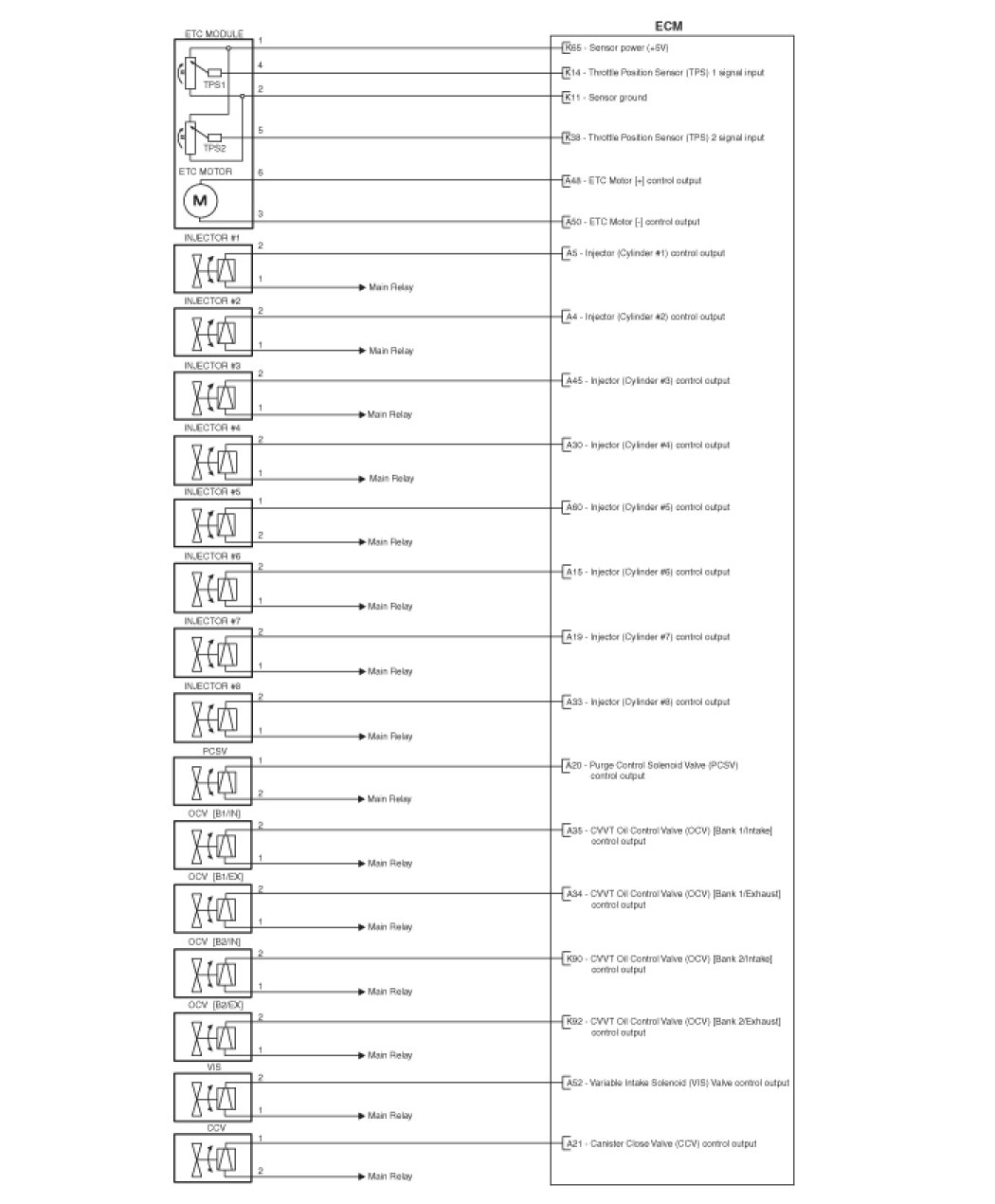

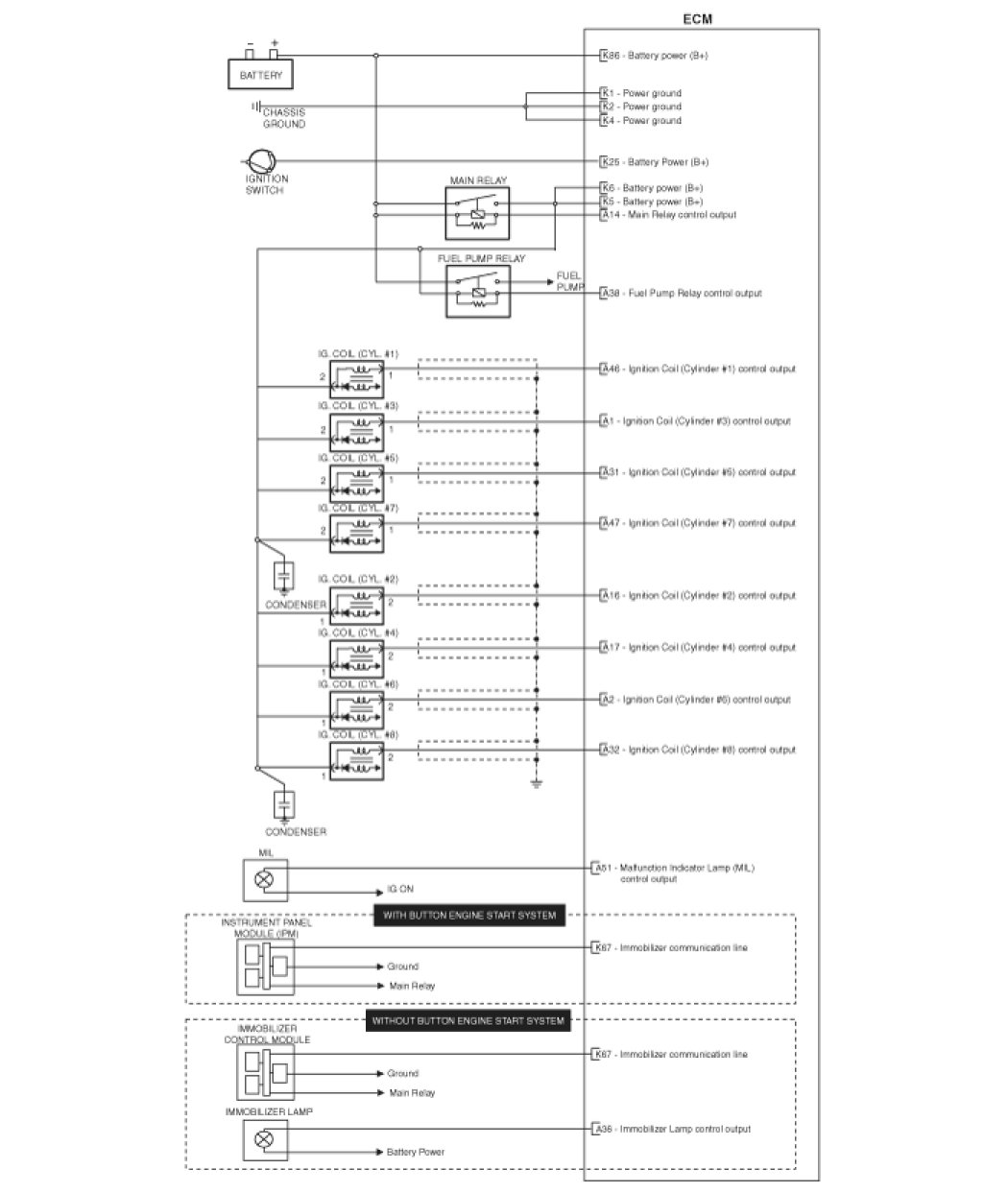

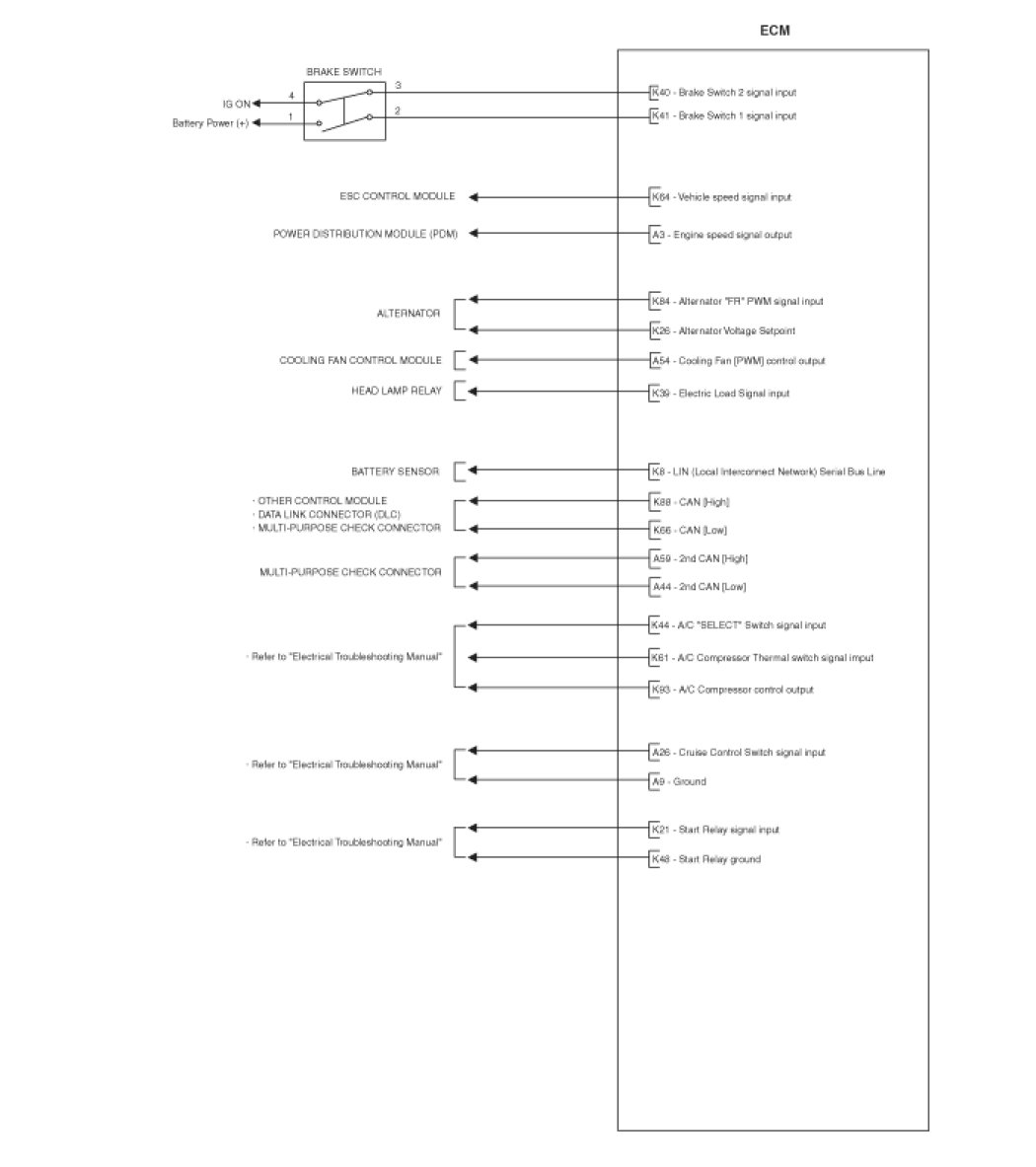

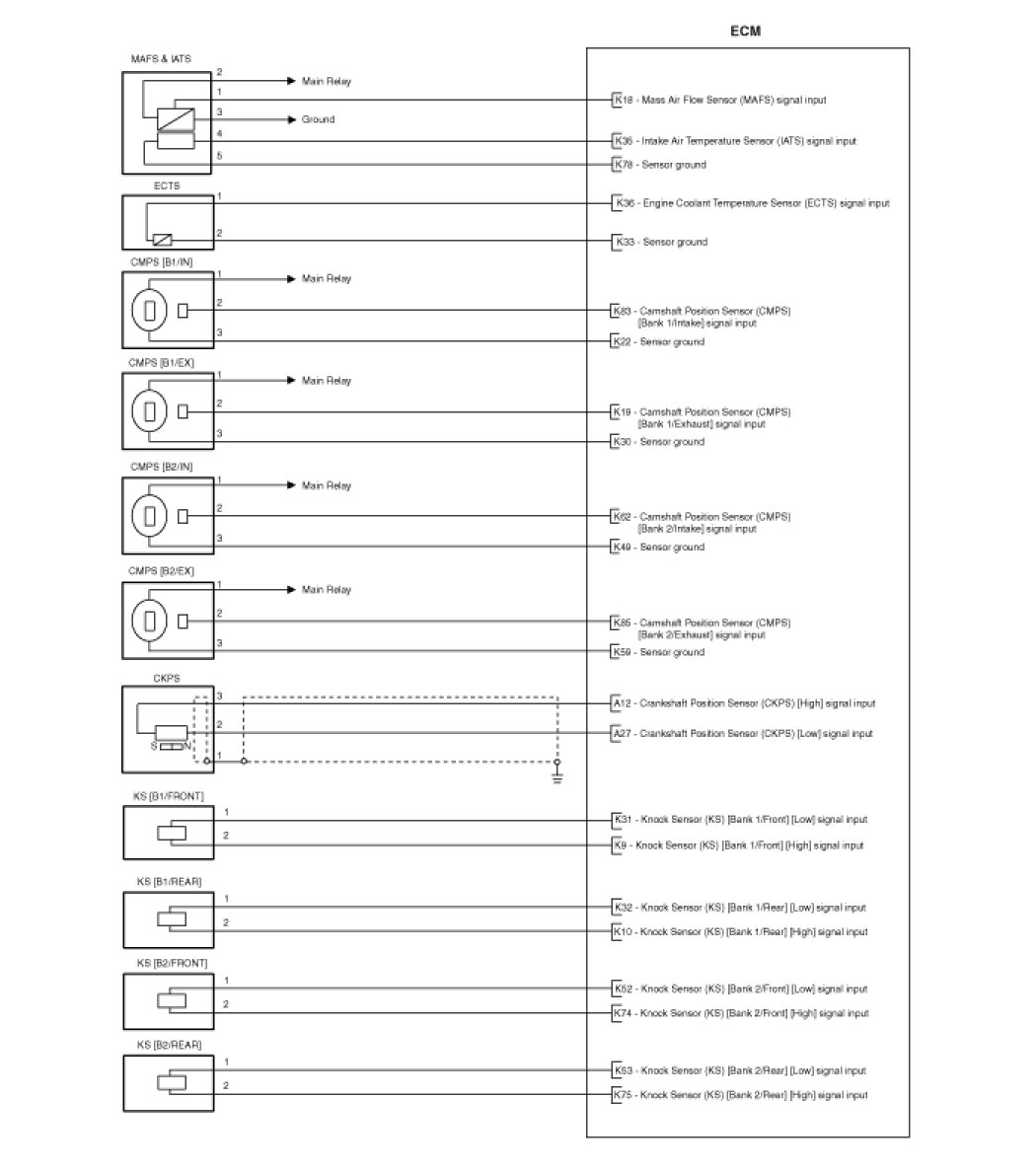

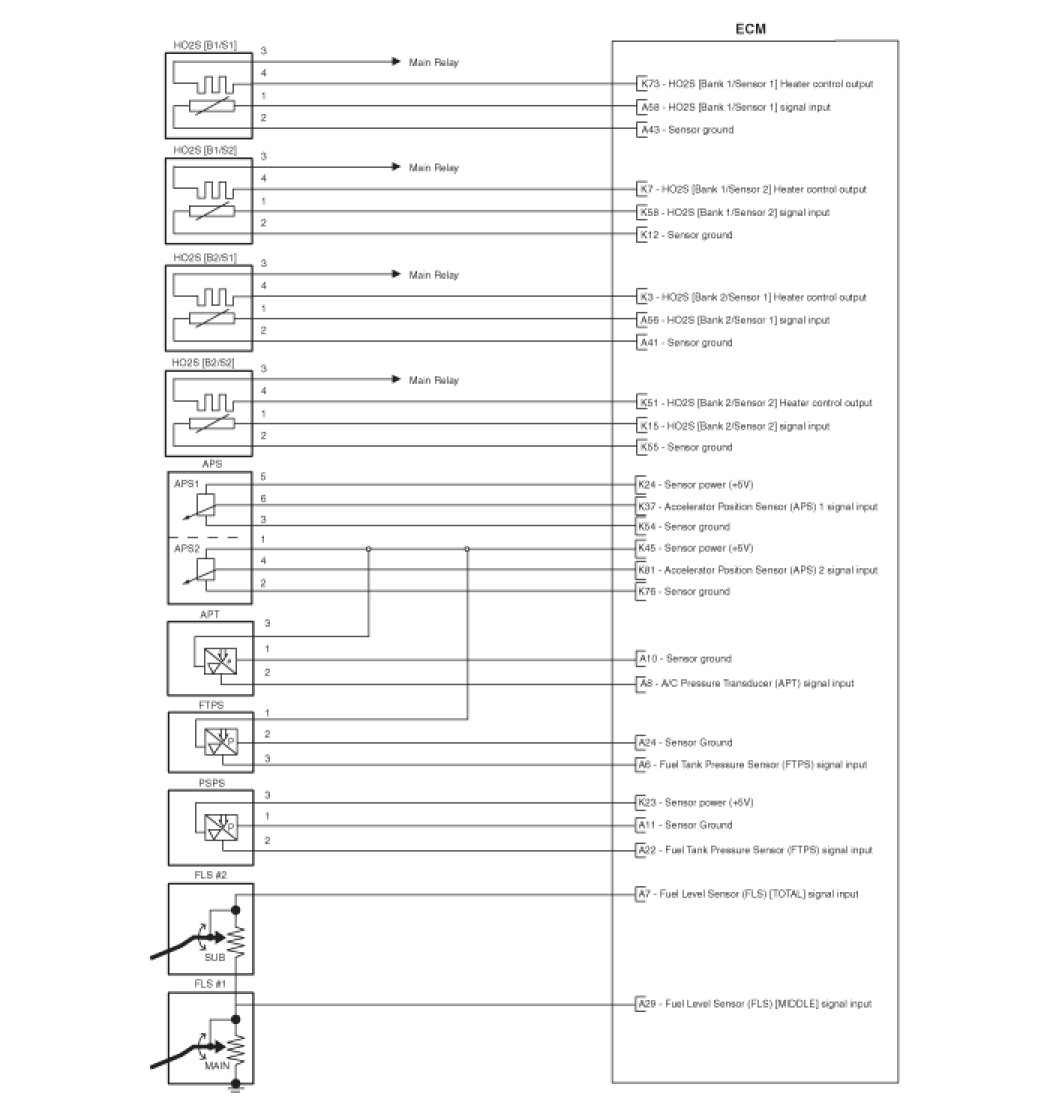

Circuit Diagram
