Fuse & Relay Information
Fuse & Relay Information

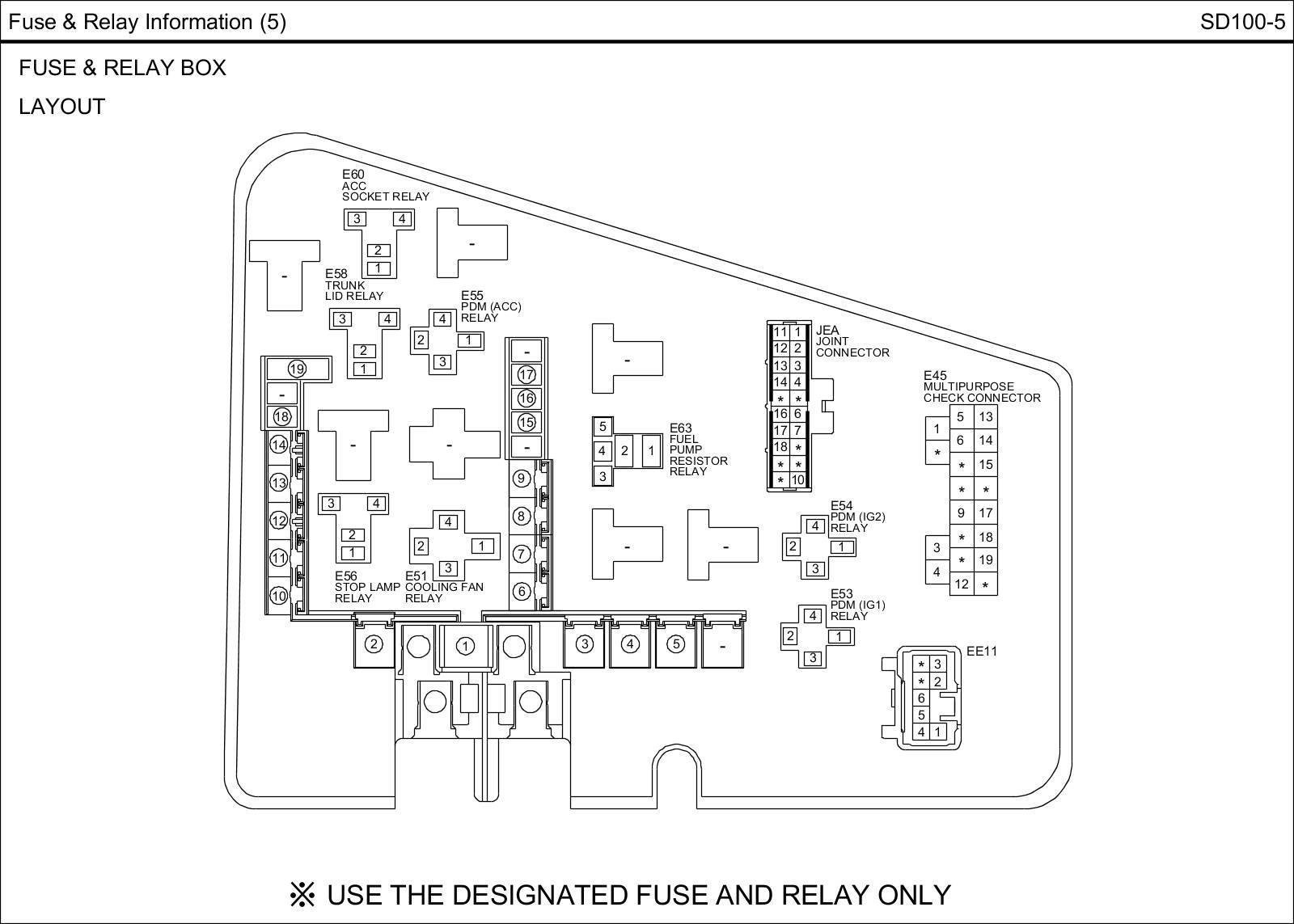

Fuse & Relay Box View:

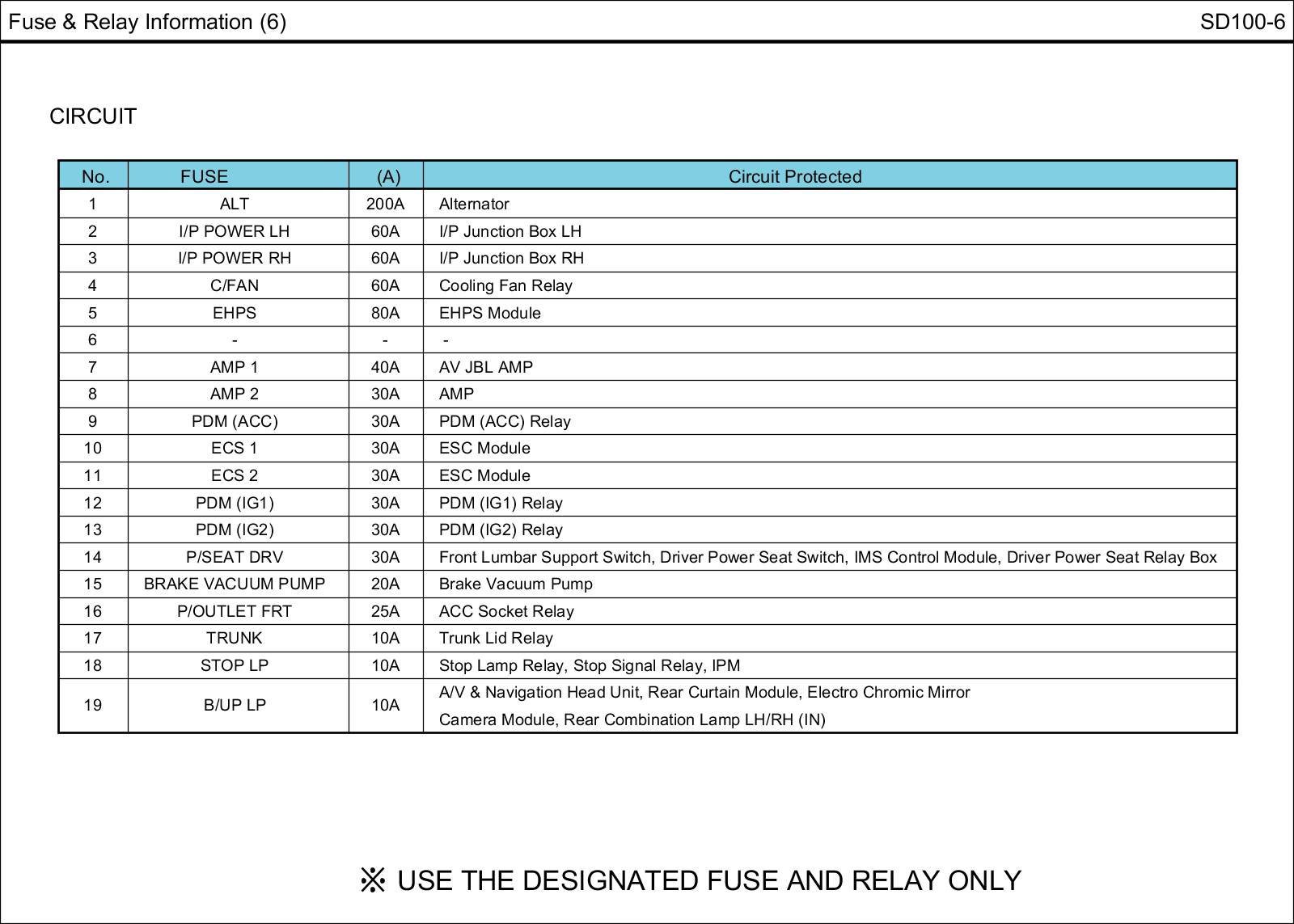

Fuse & Relay Box Circuit Details:

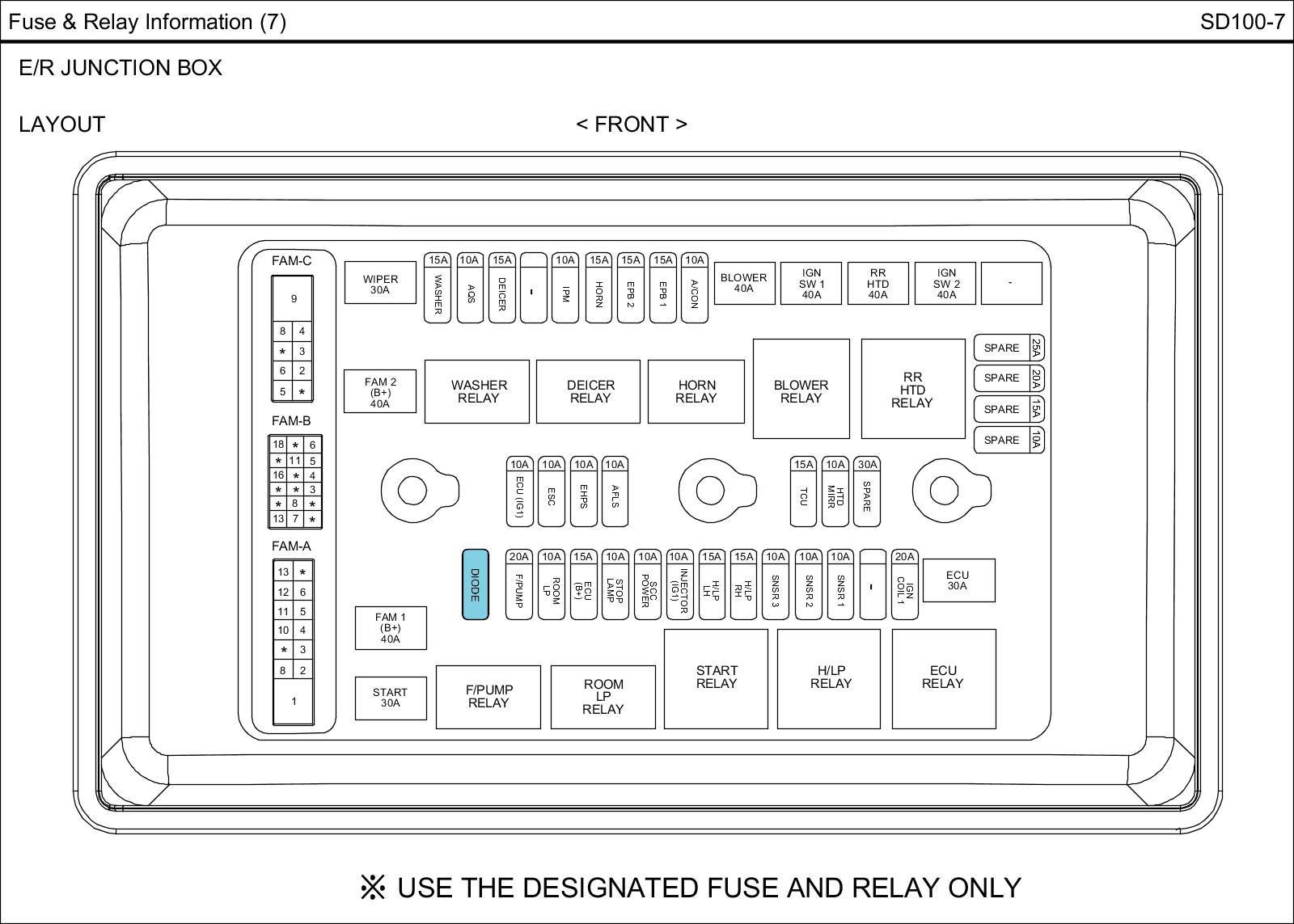

E/R Junction Box View:

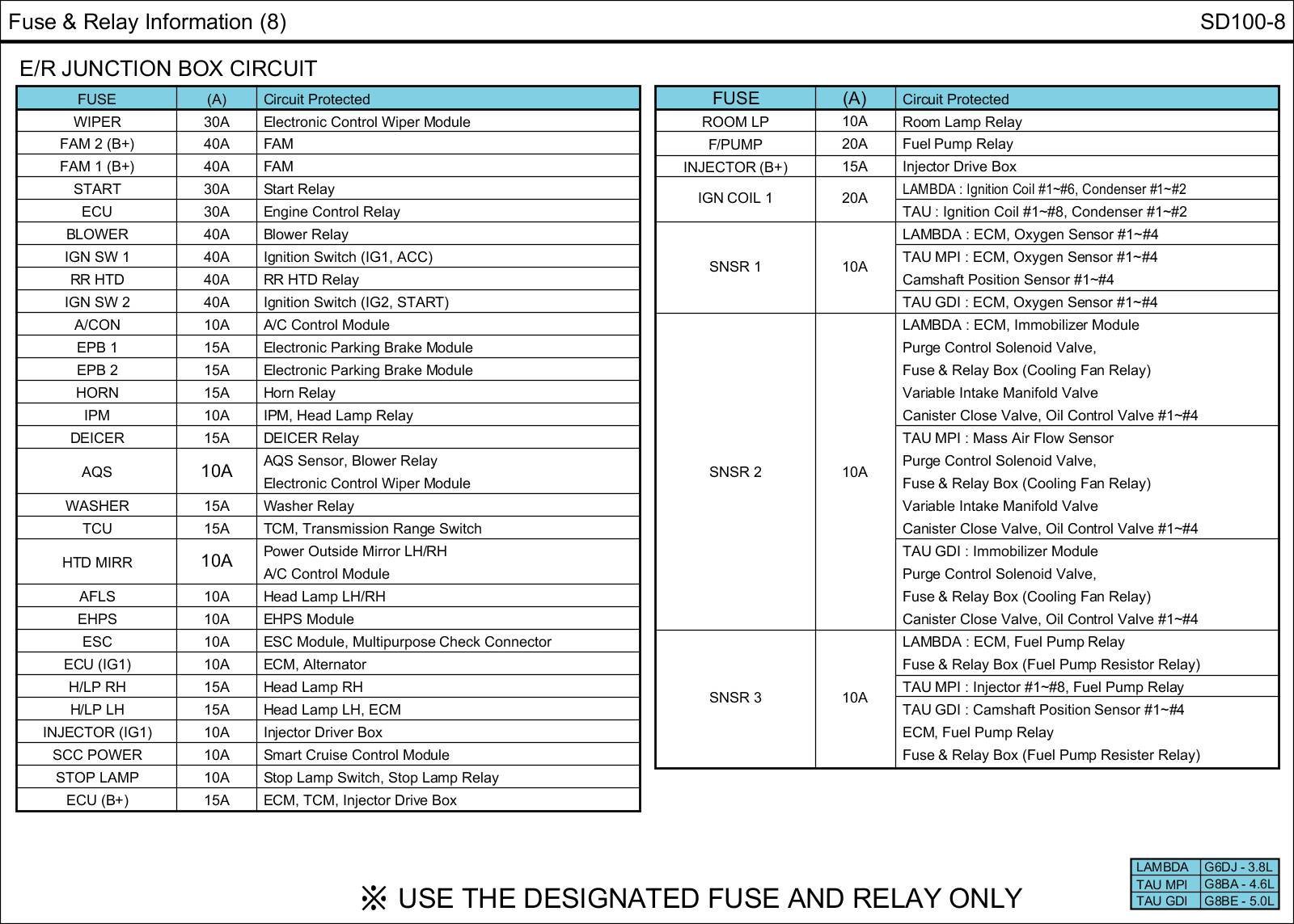

E/R Junction Box Circuit Details:
