Intake Manifold

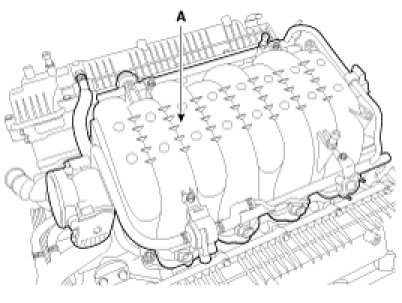

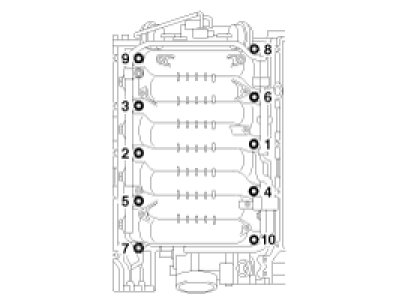

Installation the intake manifold module (A), tighten the nuts as following method.
Tightening torque
1st step 4.9 - 7.8N.m ( 0.5 - 0.8kgf.m, 3.6 - 5.8lb-ft)
2nd step 19.6 - 26.5N.m ( 2.0 - 2.7kgf.m, 14.5 - 19.5lb-ft)
Installation the intake manifold module (A), tighten the nuts as following method.
Tightening torque
1st step 4.9 - 7.8N.m ( 0.5 - 0.8kgf.m, 3.6 - 5.8lb-ft)
2nd step 19.6 - 26.5N.m ( 2.0 - 2.7kgf.m, 14.5 - 19.5lb-ft)
