Power Window Main Switch

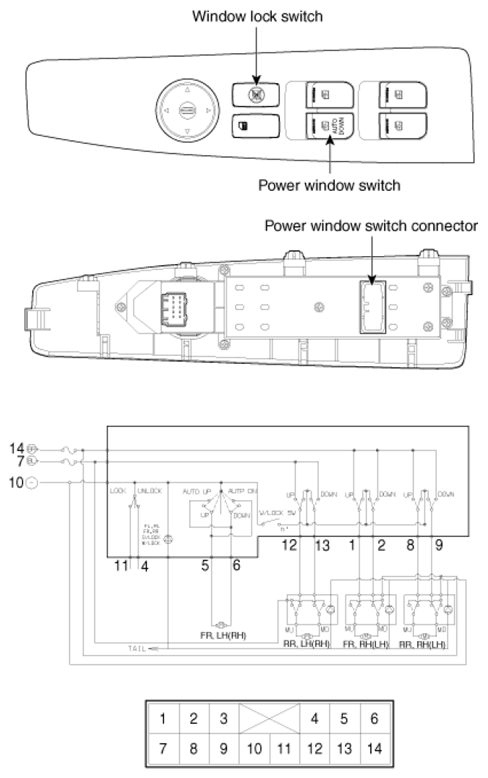

Fig 1: Identifying Power Window Main Switch With Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
