Components And Components Location: Component

WARNING: This page is about a different variant/trim than selected.

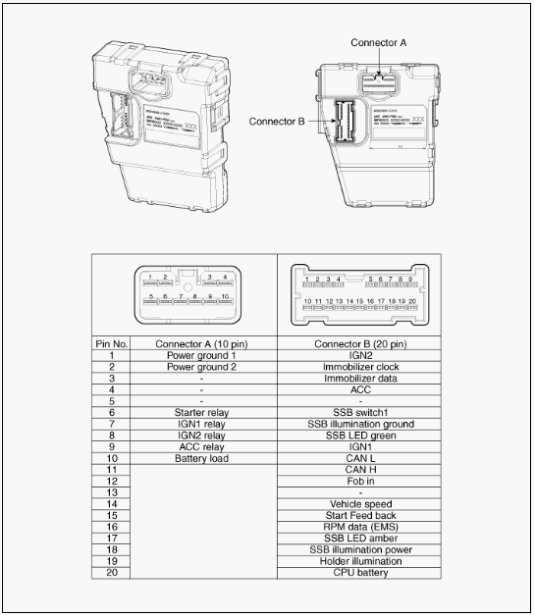

Fig 1: Identifying Power Distribution Module Connector Terminals
G07319393Courtesy of HYUNDAI MOTOR CO.
