System Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

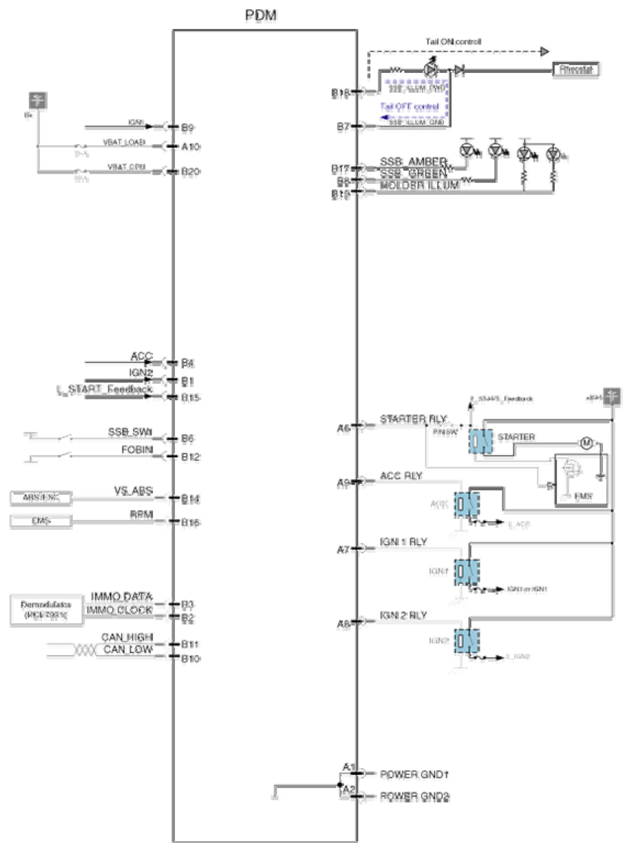

Fig 1: Power Distribution Module System Circuit Diagram
G07319394Courtesy of HYUNDAI MOTOR CO.
