Components And Components Location: Components

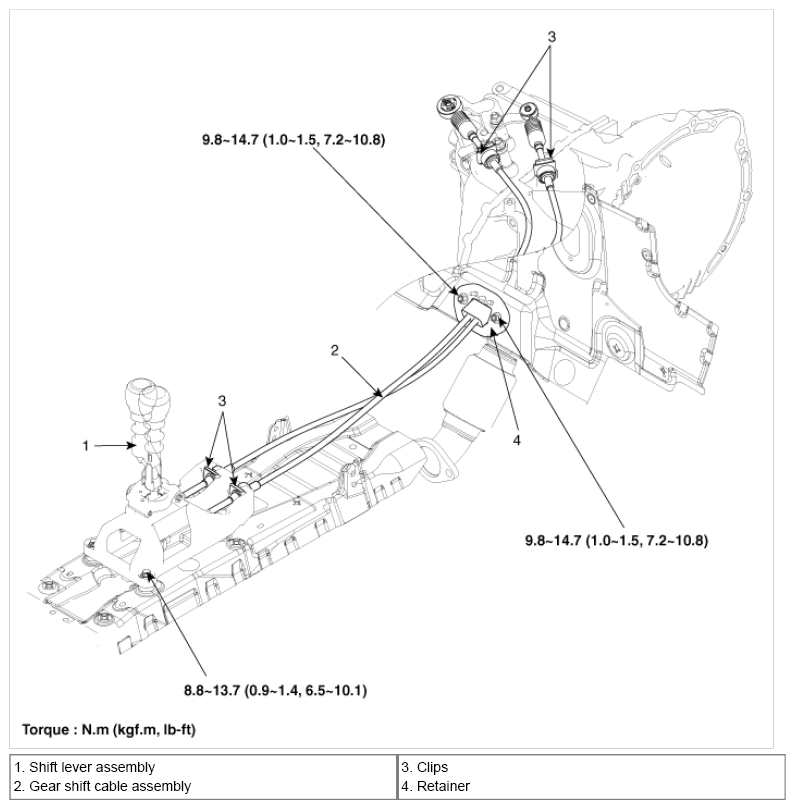

Fig 1: Identifying Shift Lever Assembly, Clips, Gear Shift Cable Assembly And Retainer
G07358780Courtesy of HYUNDAI MOTOR CO.
