Transaxle Oil Temperature Sensor: Specifications: Specifications
Type: Negative Thermal Coefficient Type

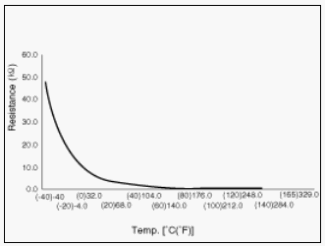

TRANSAXLE OIL TEMPERATURE SENSOR SPECIFICATIONS CHART
| Temp. (°C)°F |
Resistance (kΩ) |
| (-40)-40 |
46.8 |
| (-20)-4.0 |
15.6 |
| (0) 32.0 |
5.88 |
| (20) 68.0 |
2.51 |
| (40) 104.0 |
1.17 |
| (60) 140.0 |
0.59 |
| (80) 176.0 |
0.32 |
| (100) 212.0 |
0.18 |
| (120) 248.0 |
0.11 |
| (140) 284.0 |
0.07 |
| (165) 329.0 |
0.04 |
Courtesy of HYUNDAI MOTOR CO.
