Front Fender: Service and Repair

Replacement

NOTE:
- Be careful not to damage the hood and body.
- Use a clip remover when removing clips.

1. Remove the front bumper.

2. Loosen the mud guard mounting screws.




3. After loosening the mounting screws and clips, then remove the side sill garnish (A).

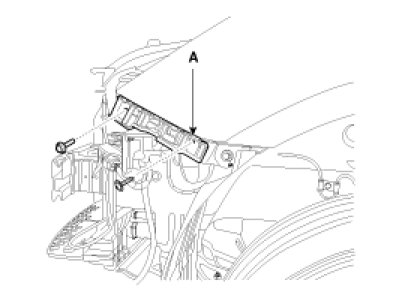

4. After loosening the mounting screw and bolt, then remove the front bumper side mounting bracket (A).

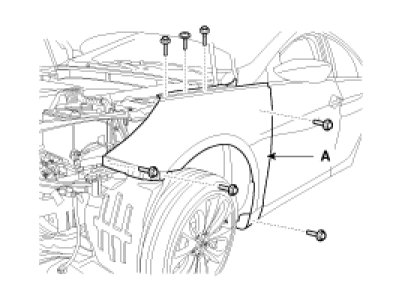

5. After loosening the fender mounting screw and bolts, then remove the fender (A).




6. Installation is the reverse of removal.
