A/C Control Module (Manual A/C, With Navigation)

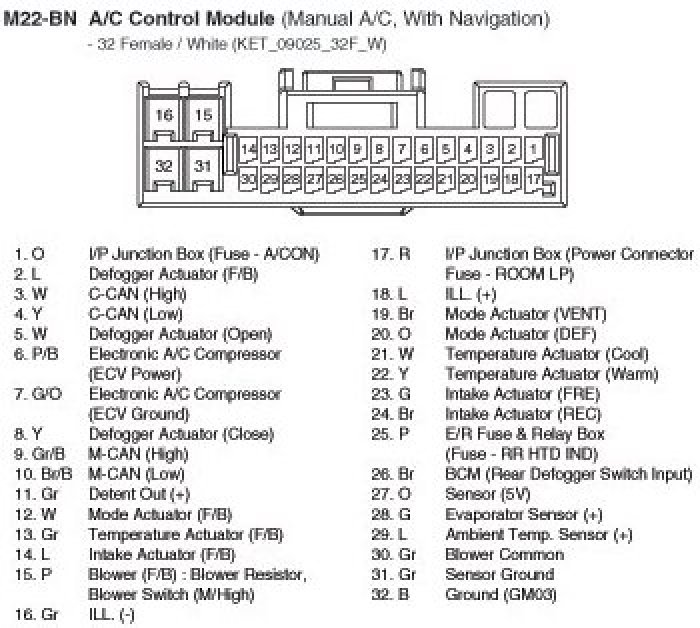

M22-BN A/C Control Module (Manual A/C, With Navigation):
