Control Module, A/T

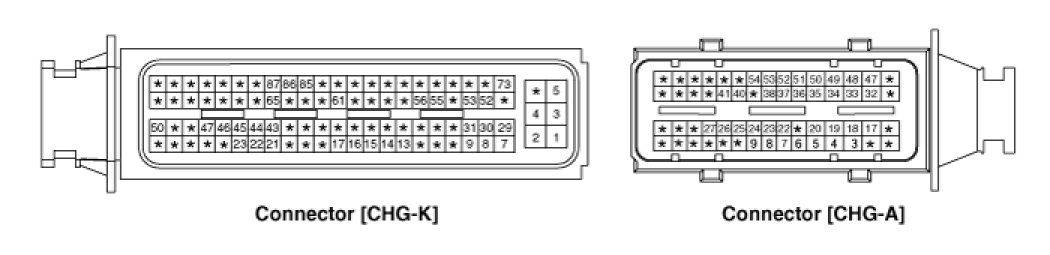

1. TCM connector and terminal function

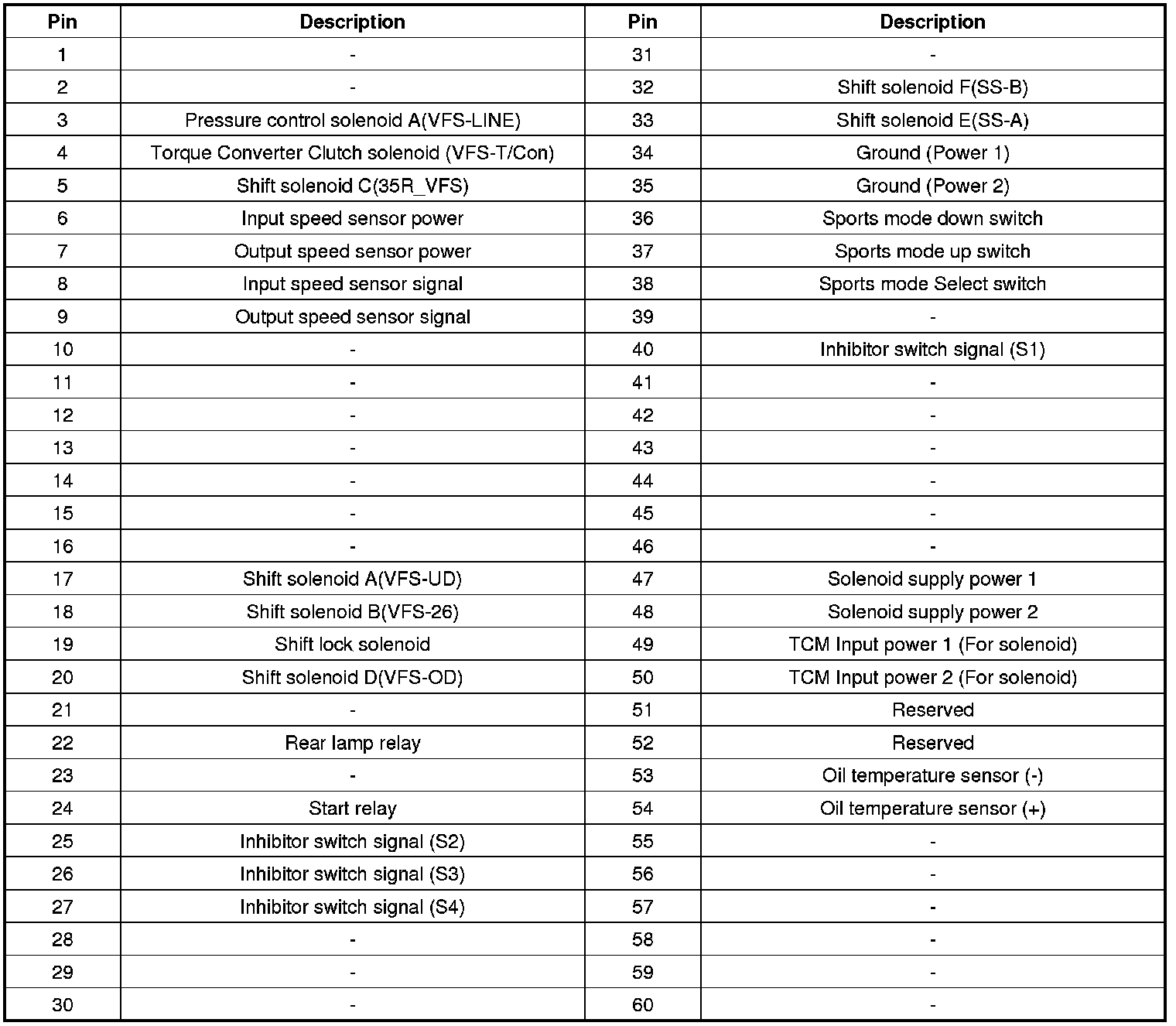

2. TCM terminal function

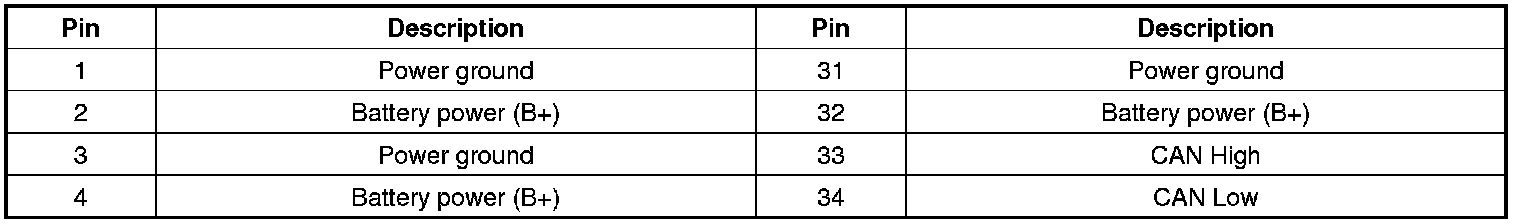

Connector [CHG-A]





Connector [CHG-K]






3. TCM Terminal input/ output signal

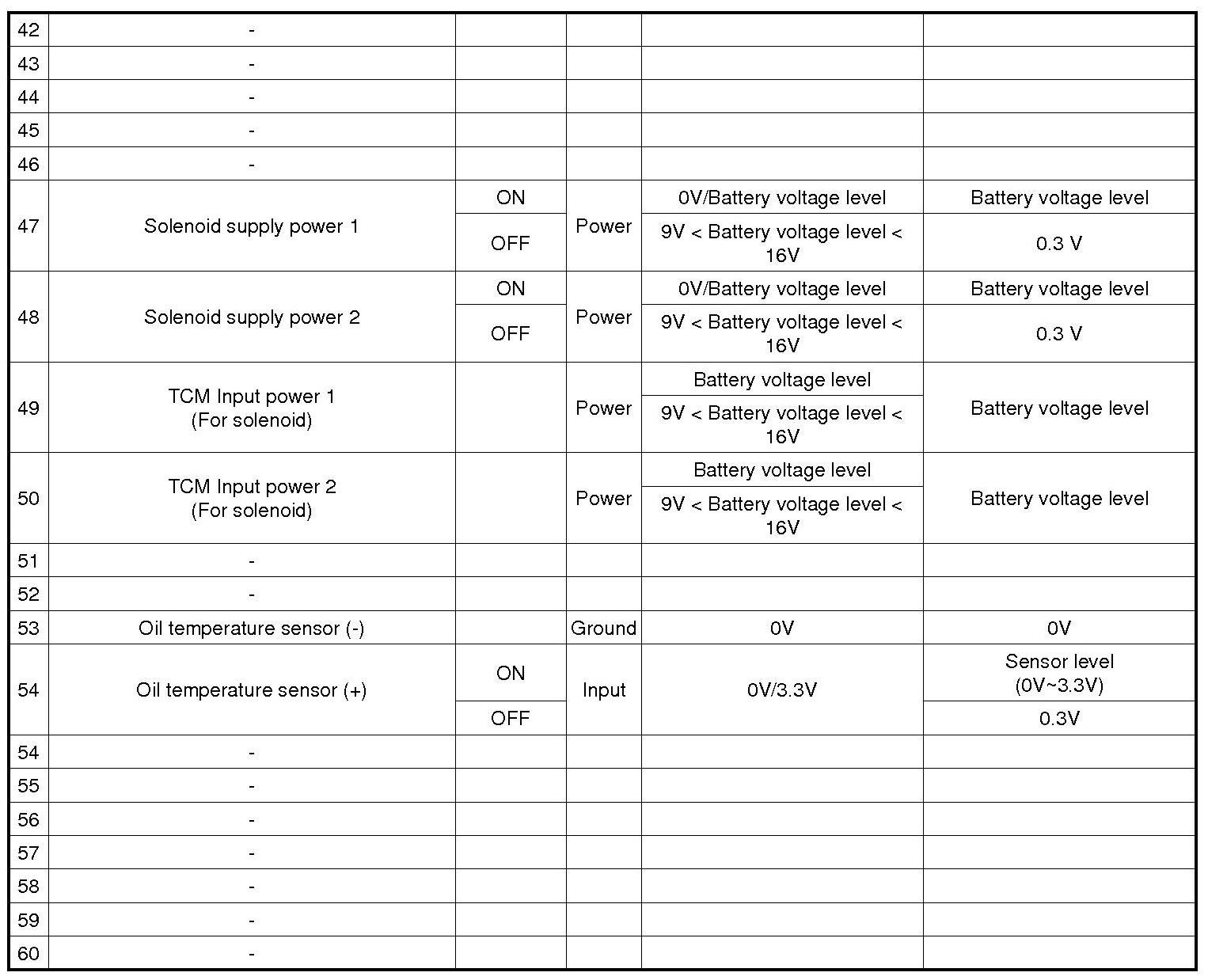

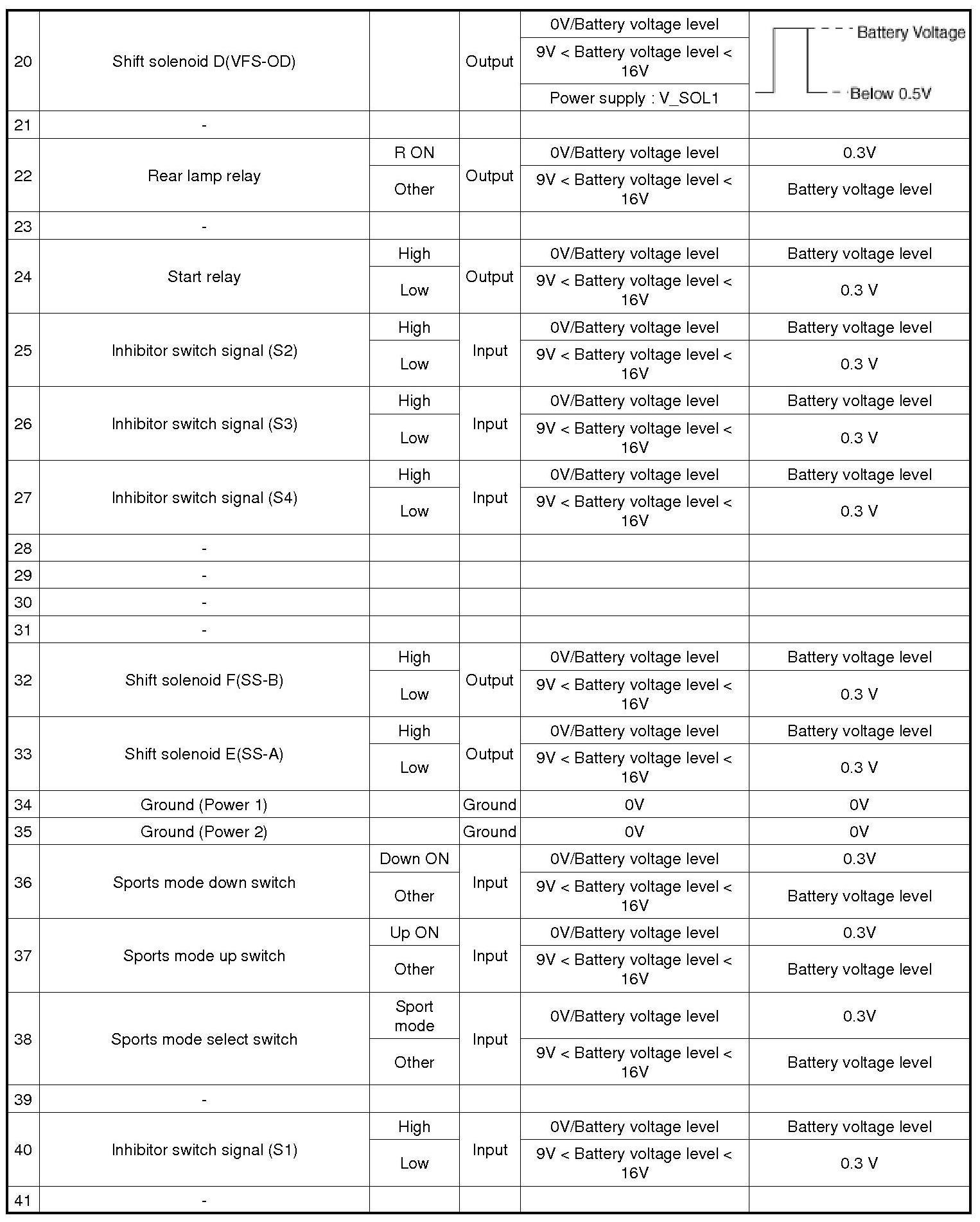

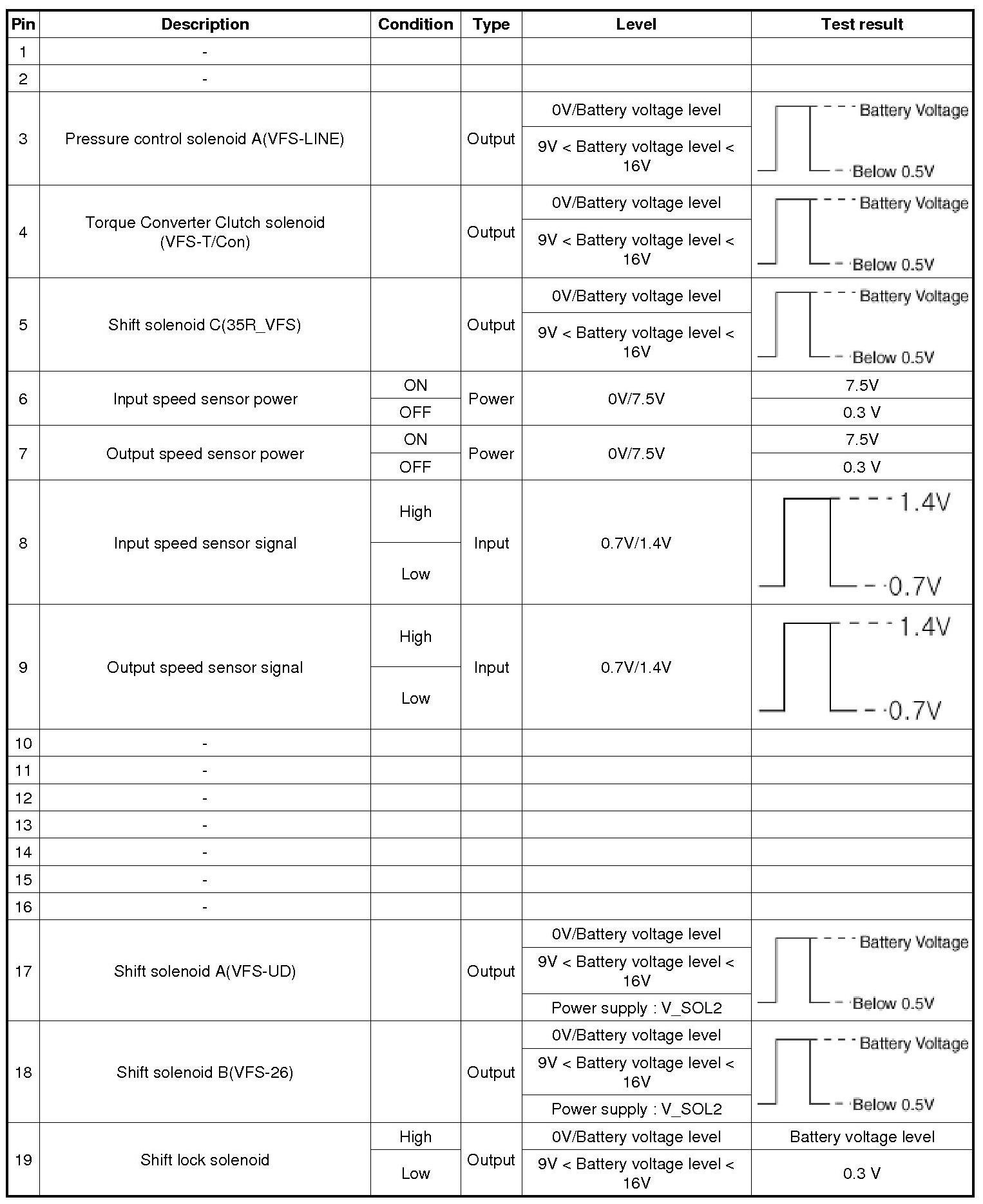

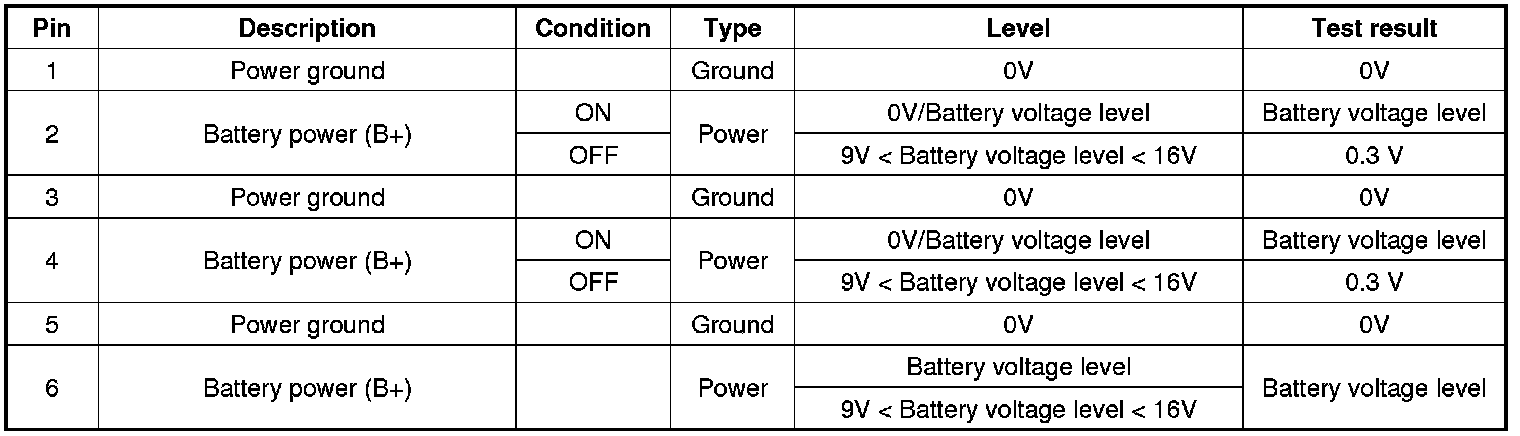

Connector [CHG-A]













Connector [CHG-K]
