Repair Procedures





Replacement

1. Disconnect the negative (-) battery terminal.

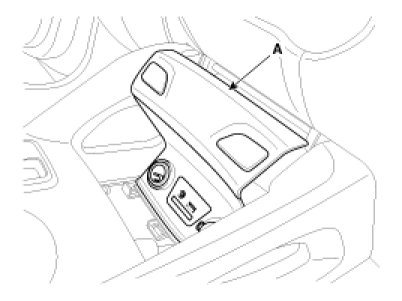

2. Remove the console upper cover (A).

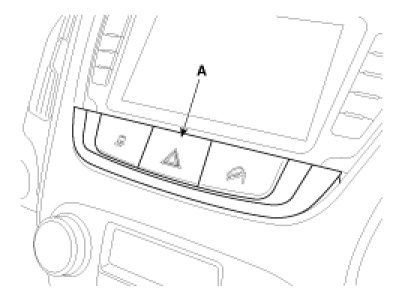

3. Using the screwdriver, remove the center facia lower cover (A).

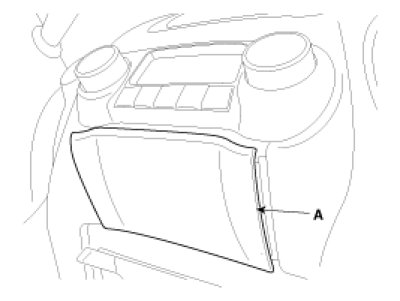

4. Using the screwdriver, remove the center facia lower switch assembly (A).

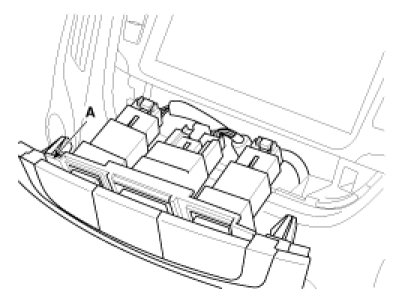

5. Disconnect the connectors and then remove the center facia lower switch assembly (A).

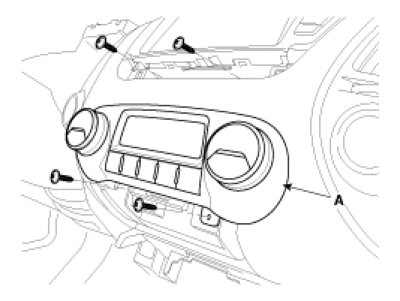

6. Loosen the control panel mounting screws and then remove the control panel (A).

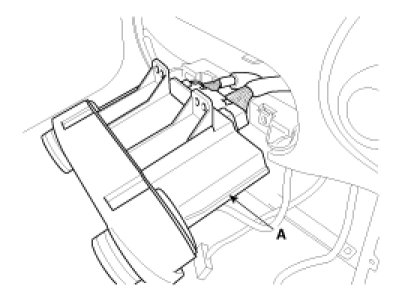

7. Disconnect the connectors and then remove the control panel (A).




8. Installation is the reverse order of removal.
