Courtesy Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

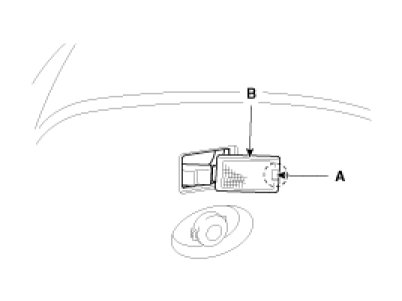

2. Remove the luggage room lamp (B) when prying the hole (A) with a flat-up screwdriver

3. Remove the luggage room lamp bulb in case of necessity

Installation

1. Replace the lamp bulb.
2. Install the luggage room lamp assembly after connecting the lamp connector.
