Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the left air vent.

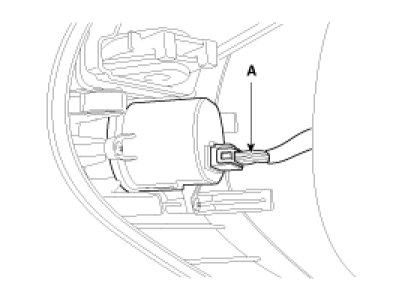

3. Disconnect the connector (A).

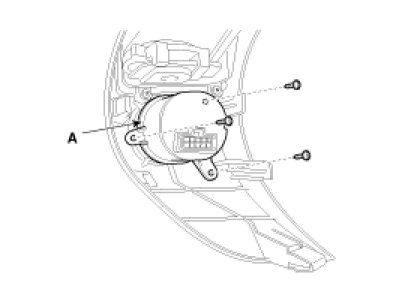

4. Remove the start/stop button (A) after loosening the mounting screws.






Installation

1. Install the start/stop button.
2. Install the left air vent.
