Neutralization Status Check: Notes

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

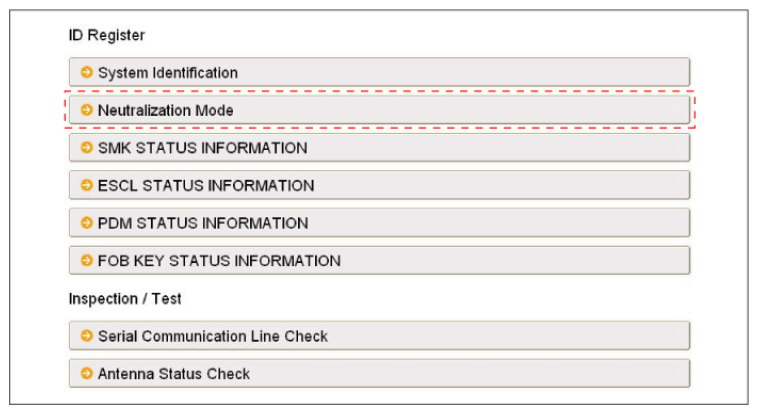

Fig 1: Selecting Neutralization Mode
Courtesy of HYUNDAI MOTOR CO.

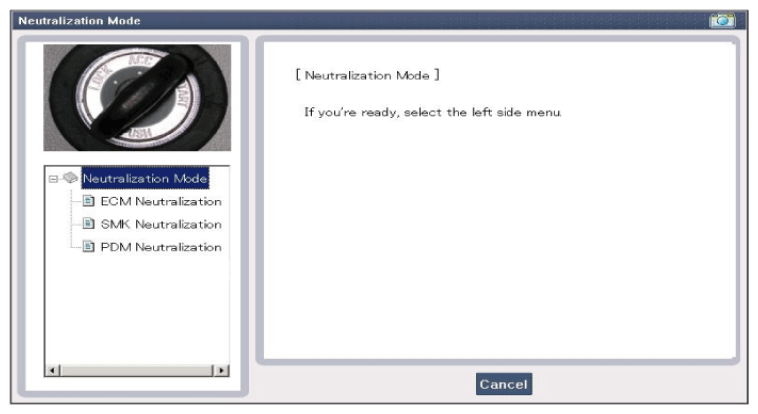

Fig 2: Display - Neutralization Mode Screen
Courtesy of HYUNDAI MOTOR CO.

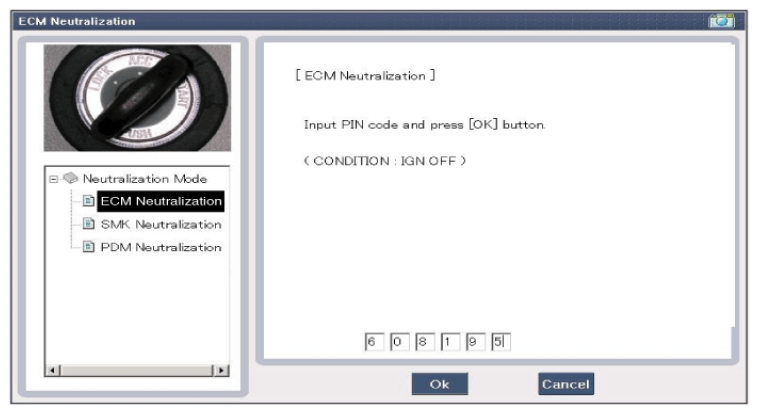

Fig 3: Display - ECM Neutralization Entering Screen
Courtesy of HYUNDAI MOTOR CO.

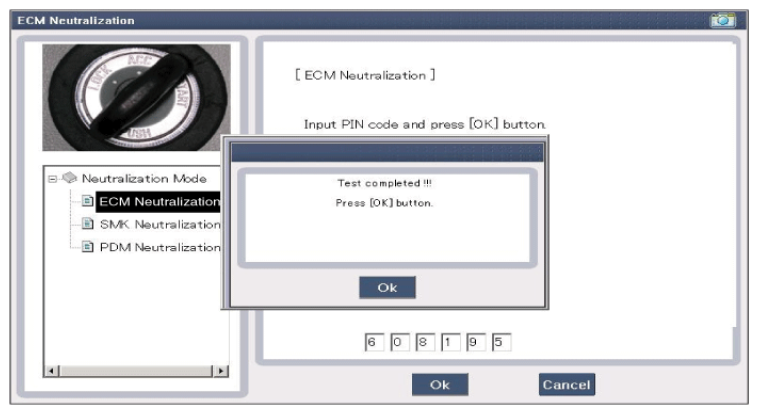

Fig 4: Display - ECM Neutralization Mode Completed Screen
Courtesy of HYUNDAI MOTOR CO.

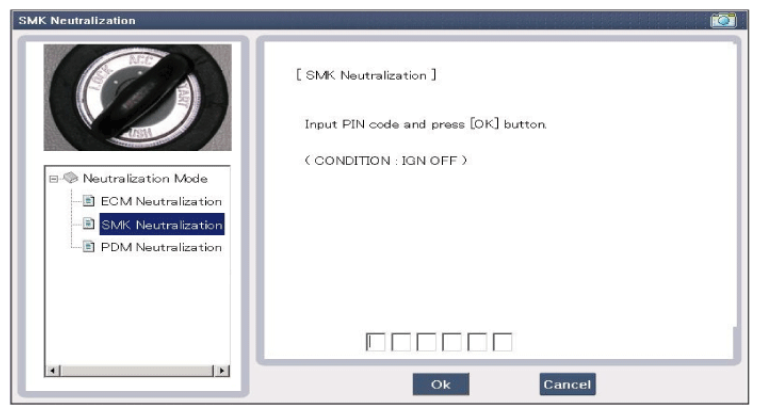

Fig 5: Display - SMK Neutralization Entering Screen
Courtesy of HYUNDAI MOTOR CO.

Fig 6: Display - SMK Neutralization Entering Screen
Courtesy of HYUNDAI MOTOR CO.

Fig 7: Display - SMK Neutralization Completed Screen
Courtesy of HYUNDAI MOTOR CO.

Fig 8: Display - PDM Neutralization Entering Screen
Courtesy of HYUNDAI MOTOR CO.

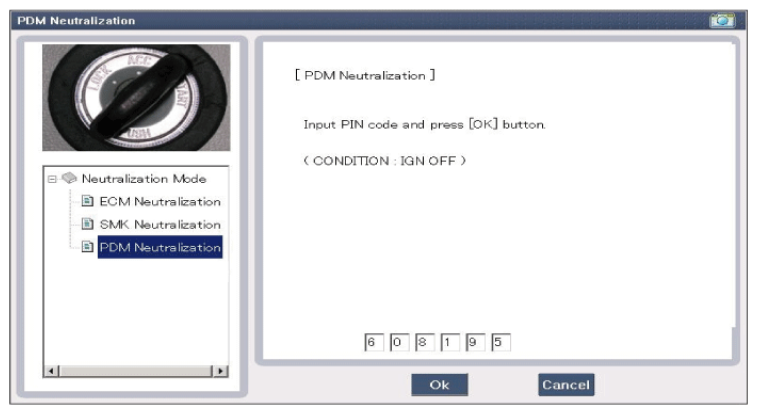

Fig 9: Display - PDM Neutralization Entering Screen
Courtesy of HYUNDAI MOTOR CO.

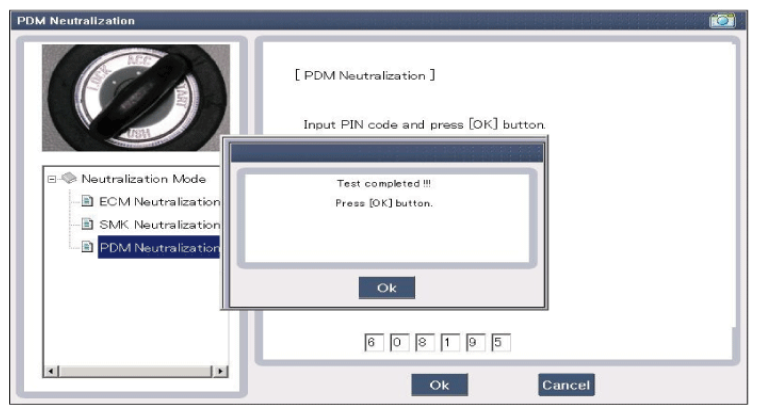

Fig 10: Display - PDM Neutralization Completed Screen
