PDM Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "PDM STATUS INFO".

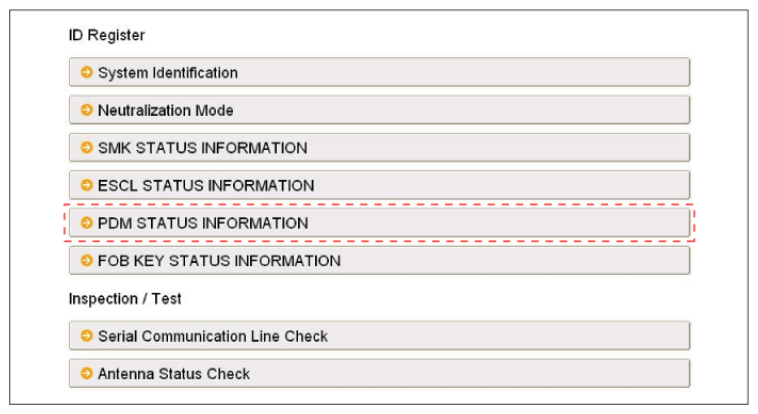

    Fig 1: Selecting PDM Status Information
    G06875388Courtesy of HYUNDAI MOTOR CO.

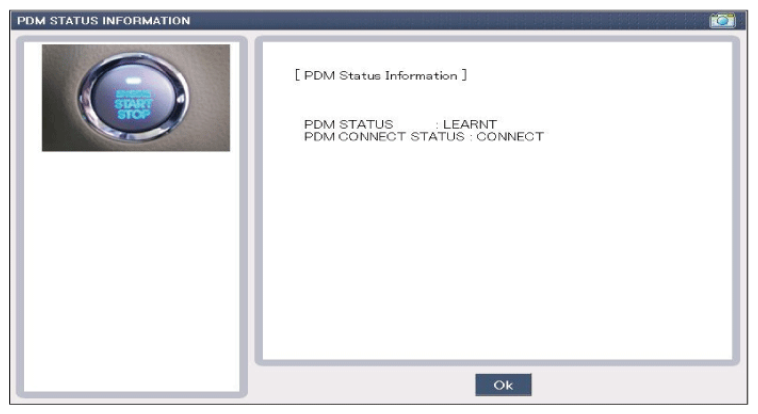

    Fig 2: Display - PDM Status Information Screen
    G06875389Courtesy of HYUNDAI MOTOR CO.
