Hyundai
>>
2012
>>
Tucson GL, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Starter
>>
Button Engine Start System
>>
Button Engine Start System
>>
Schematic Diagrams
>>
Circuit Diagram (1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram (1)

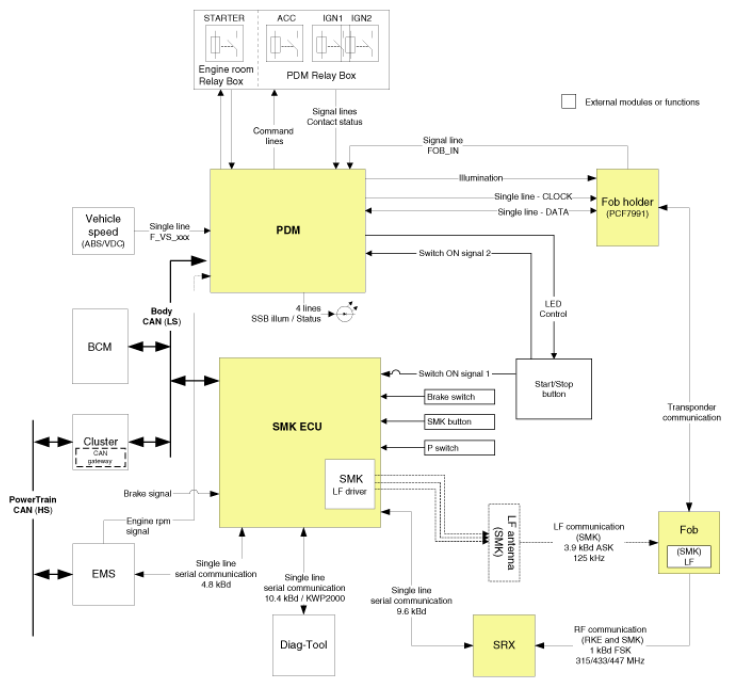

Fig 1: Button Engine Start System Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
