Signal Waveform & Data

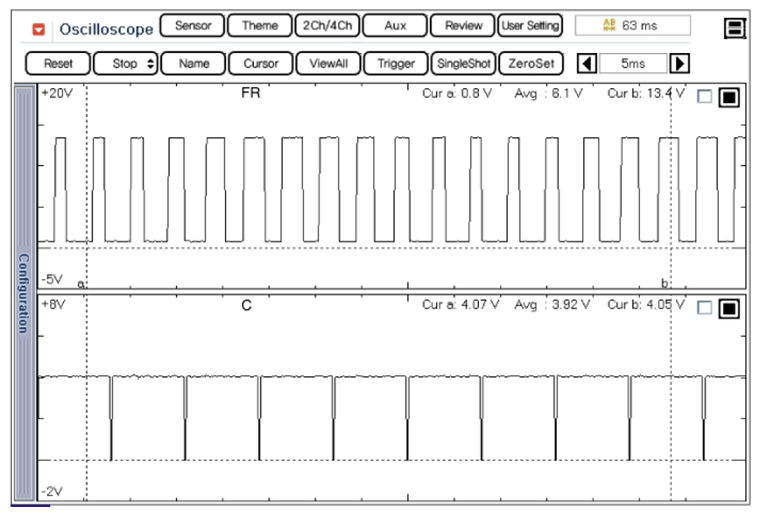

Fig 1: Signal Waveform & Data Of Idle Status

Courtesy of HYUNDAI MOTOR CO.

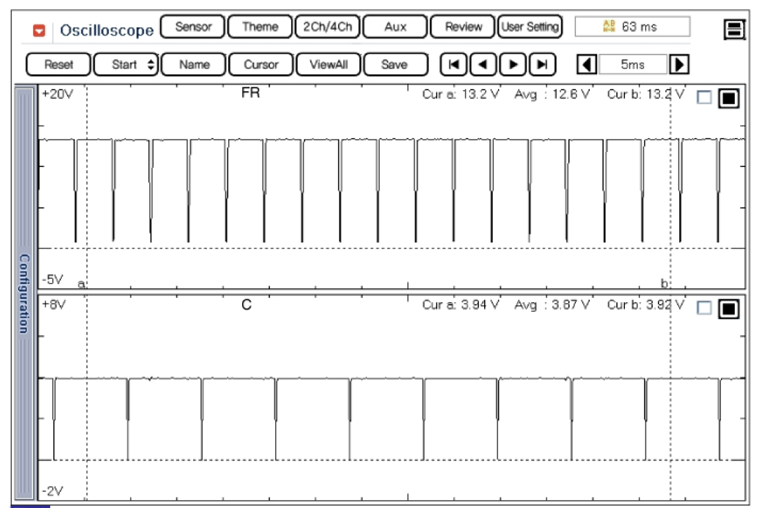

Fig 2: Signal Waveform & Data Electrical Load (Head Lamp And Defrost ON)

Courtesy of HYUNDAI MOTOR CO.

Duty (+) from FR terminal is increased if electrical loads are ON (Head Lamp and Defrost are ON)

ECM controls generation of alternator with duty from FR terminal when electrical Loads turn on
