Engine Control System Diagnosis (3 Of 3)
>>
DTC P2016: Intake Manifold Runner Position Sensor/Switch Circuit Low (Bank 1)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

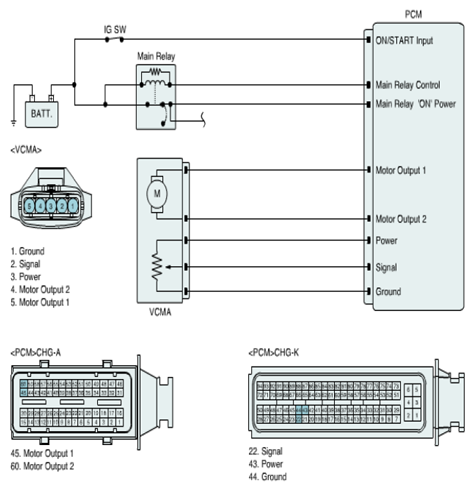

Fig 1: Variable Charge Motion Actuator Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
