Control To Front End Module Harness Connection Connector End View (EC11)

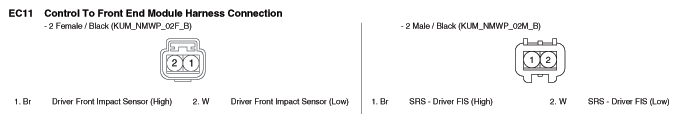

Fig 1: Control To Front End Module Harness Connection Connector End View (EC11)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
